Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: PJ-2018
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 0.5A 30V |
| Actuating force | 3~30N |

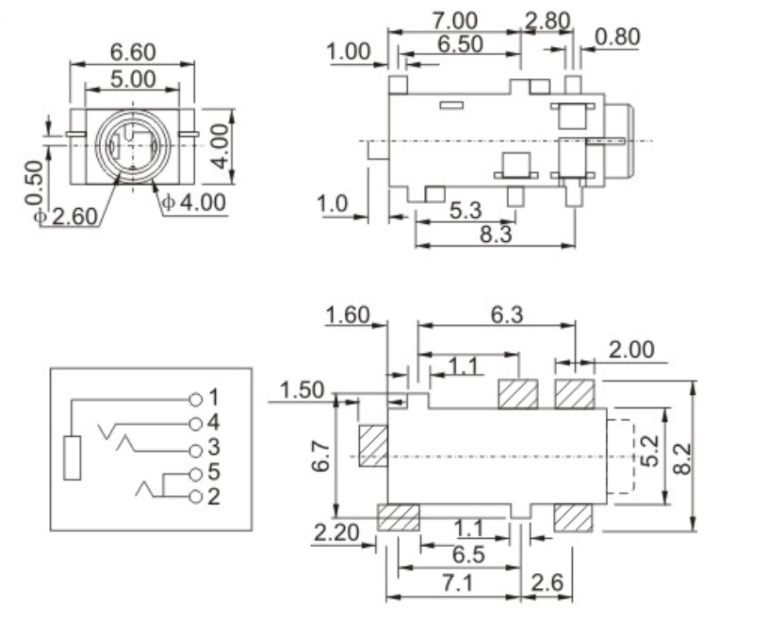

| Dimension | 9.80mm*6.60mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 100mΩ Max |
Ray-Ban Meta Frame Headphone Jack's Product Operating Principle
1. Micro-Grip Solder Anchors - 0.4mm laser-defined pads prevent tombstoning during 260°C reflow
2. Nested Contact Architecture - Tiered beryllium copper springs maintain ≤50mΩ in 4mm z-height
3. Automation-Optimized Fiducials - IR-recognizable markers enable 0.03mm robotic placement accuracy
Tandem t:slim X2 Medical Device Headphone Jack's Product Functions
· PCB Real Estate Revolution - 9.8×6.6mm footprint saves 60% board space vs standard 2.5mm audio jacks
· Ultra-Low Profile Integration - 4.0mm height fits behind sub-5mm device enclosures
· High-Density Signal Integrity - ≤50mΩ contact resistance guarantees ±0.18dB frequency response
· Hyperscale Manufacturing - Achieves 45k UPH on Fuji NXT-III assembly lines
Autel EVO Nano+ RC Headphone Jack's Product Applications
Smart Glasses Electronics
Implementation: Ray-Ban Meta frame headphone jack 2.5mm interface
Insulin Pump Controllers
Integration: Tandem t:slim X2 medical device 2.5mm audio jack
Drone Remote Controllers
Usage: Autel EVO Nano+ RC 2.5mm jack headphones port
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
We ensure high production efficiency and ship your order within 7 days after payment.
Q1. How can you ensure the quality?
A: All our products are 100% tested before delivery. Durable quality is guaranteed.
Q2: How can we get the samples and best quotation?
A:We need to know more details about the products you inquired.
For example, what are the functions you need? The specification of it and which finished products will be used with it?
It is better to provide AI fromat artwork to us so we could provide best quotation to you asap.
We could provide the free samples to you.
Q3: How long will the samples take to my place?
A: It depends on the express solution you choose, normally it will take 3-5 working days for the fastest way in hihgest price. And commonly in 5-8 days for the cost-effective way.
Q4. Can you open mold for teminal order or uncommon mold?
A: OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.
Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special
requirement.
For PCBA quotation, please provide Gerber data / files and BOM (bill of materials). If you need function test, please also provide
the test instruction/ procedure.
