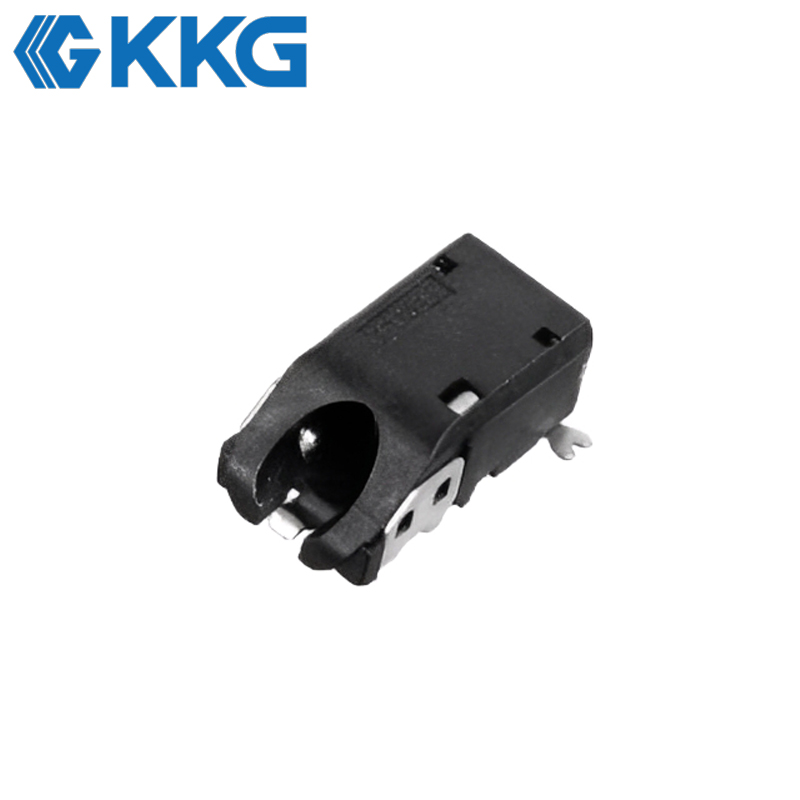

PJ-3268-3.5 mm headset jack

Motorola Solutions MOTOTRBO R7 Headphone Jack's Product Operating Principle

1. When a 3.5mm audio plug is inserted, its contacts align with the jack's internal spring-loaded terminals (tip, ring, sleeve).

2. This creates a secure physical contact, establishing discrete electrical circuits for left audio, right audio, and ground signals.

3. The connection facilitates the stable, low-resistance transfer of analog audio signals from the circuit board to the output device.

Pioneer DJ DDJ-FLX4 DJ Controller Headphone Jack's Product Functions

1. Provides a universal port for standard analog audio output to headphones, speakers, or auxiliary line-in devices.

2. Its SMT design enables a low-profile, space-saving connection directly onto the surface of a printed circuit board.

3. Ensures robust, long-term performance with a mechanical life of 5,000 cycles, withstanding repeated use.

4. Facilitates efficient, high-volume manufacturing through compatibility with standard reflow soldering processes.

Anbernic RG35XX Handheld Game Console Headphone Jack's Product Applications

1. Industrial: Utilized in the Motorola Solutions MOTOTRBO R7 portable two-way radio, this jack provides a secure port for connecting audio accessories like earpieces and speaker microphones for clear communication.

2. Pro Audio: Integrated into the Pioneer DJ DDJ-FLX4 DJ Controller as the headphone monitoring output, allowing DJs to cue up tracks privately before mixing them for a live audience.

3. Consumer Electronics: This 3.5 mm headset jack serves as the primary audio output on the Anbernic RG35XX Handheld Game Console, enabling players to use wired headphones for an immersive gaming experience.
