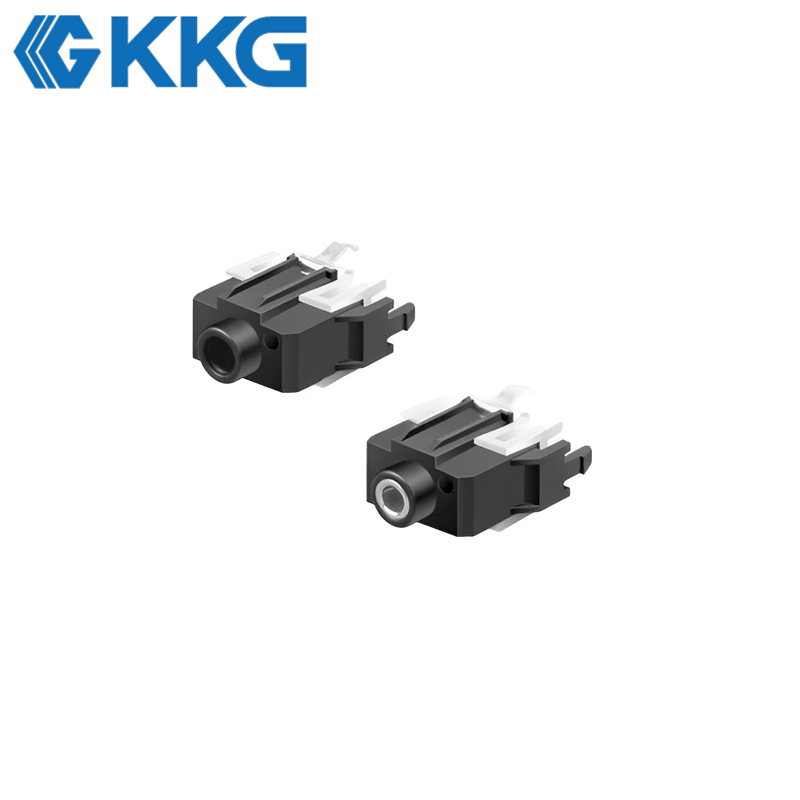

3.5 mm jack pin

Zebra MC3300 Handheld Computer Headphone Jack's Product Operating Principle

1. When an external 3.5mm audio plug is inserted, it makes a secure physical connection with the jack's internal conductive terminals.

2. The terminals then reliably transfer analog audio signals from the plug directly to the device's printed circuit board (PCB).

3. Internal spring contacts ensure stable plug retention and a consistent, low-resistance path for clear and uninterrupted audio transmission

GE CARESCAPE B450 Patient Monitor Headphone Jack's Product Functions

1. Provides a standard audio output port for connecting headphones, earphones, speakers, and auxiliary cables.

2. Ensures long-term durability with a high electrical life of 5,000 cycles, ideal for high-use applications.

3. Maintains excellent signal integrity for high-fidelity audio thanks to its low contact resistance (50mΩ Max).

4. Offers a secure and stable connection with an operating force of 3-30N, preventing accidental plug removal.

Focusrite Scarlett Solo Audio Interface Headphone Jack's Product Applications

1. Industrial Control: Used in the Zebra MC3300 Handheld Computer as the primary headphone jack, allowing operators to receive audio alerts and voice commands clearly in noisy environments.

2. Medical Equipment: Integrated into the GE CARESCAPE B450 Patient Monitor to provide a port for connecting headphones, enabling medical staff to monitor auditory alarms privately without disturbing patients.

3. Domestic Audio: Serves as the robust headphone output on the Focusrite Scarlett Solo Audio Interface, where its durable 3.5 mm jack pin design provides reliable connectivity for studio monitoring.
