Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC002A
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:

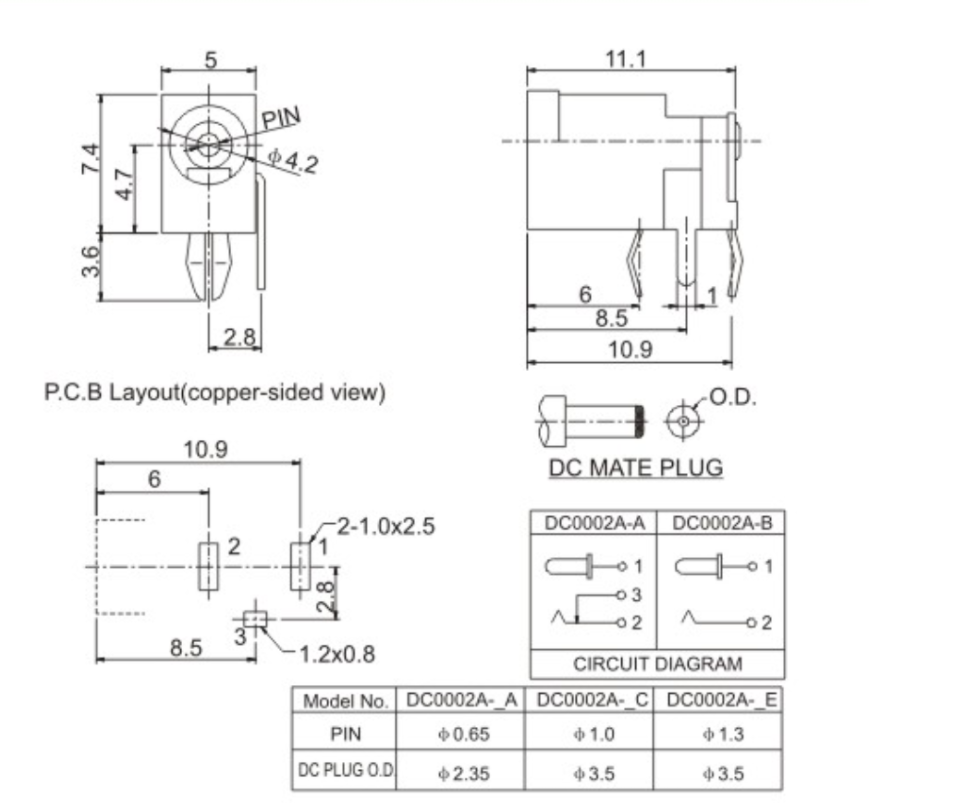

| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |
| Dimension | 11.10mm*5.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
DJI Mini 3 Pro Battery Charging Port DC Power Jack's Product Operating Principle
--Micro Contact System – Dual spring contacts maintain stability in vibration-prone settings
--Error-Proof Insertion – Angled design guides plug alignment for 100% correct connections
--Quick-Solder Terminals – Standard DIP pins enable 90-second PCB assembly
Philips Hue Motion Sensor DC Power Jack's Product Functions
--Miniaturized Design – 50% smaller than DC012B for wearable tech and IoT edge devices
--High-Reliability Contacts – 1A @ 30V with ≤30mΩ resistance for critical power delivery
--Industrial Durability – IP4X protection + UL94 V-0 flame rating for harsh environments
--Mass-Production Optimized – 30% lower per-unit cost at scale vs. standard connectors
Fitbit Sense-style Smartwatche DC Power Jack's Product Applications
Medical Wearables
Example: Dexcom G7-style glucose monitors requiring compact charging ports
Smart Sensors
Example: Siemens Sitrans LR100 radar sensors for industrial process monitoring
Ultra-Thin Laptops
Example: MacBook Air M2 power interface with minimal profile requirements
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: Are you a factory or trading company?
A: We are the leading manufacturer of electronics. Why not conatct us now to discover original factory prices!
Q2: Why should we choose your company?
A:1.Porfessional manufacture with more than 15 years experience in producing various of switches.
2.Good quality, competitive price and fast delivery time.
3.OEM/ ODM Service provided to clients.
4.The best after-sale service.
Q3: When can I get the quotation?
A: We will send you quotation within 24 hours after providing product details.
Q4:Can you provide samples?
A: Yes! Free samples! Only shipping fee needs to be paid.
Q5. What is the payment term?
A: For small quantity order, pls remit payment by PayPal. For bulk order, pls remit payment by T/T.
