Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC006
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |

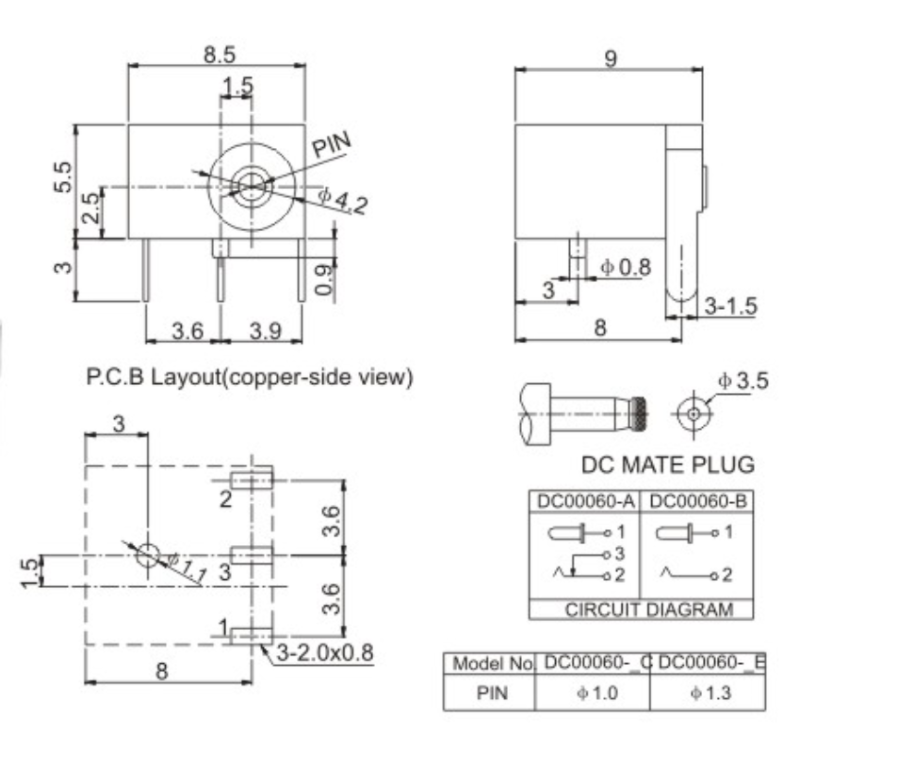

| Dimension | 9.00mm*8..50mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
Fitbit Charge 5-style Hidden Charging Port DC Power Jack's Product Operating Principle
--Dual-Point Engagement – Two independent metal springs grip plugs from perpendicular angles for secure connection
--Anti-Misalignment Guide – Prevents incorrect insertion while optimizing power flow paths
--Quick Mount System – Installs on PCBs/panels with screw-on base or solder tabs in 90 seconds
Philips Hue Motion Sensor-style Compact Power Interface DC Power Jack's Product Functions
--Miniaturized Design – 40% smaller than standard DC sockets for ultra-thin wearable tech
--Consistent Energy Transfer – 1A continuous current for 5V systems with minimal resistance (≤40mΩ)
--Particle-Resistant Build – IP40 rating blocks environmental debris for long-term reliability
--Material-Optimized Production – 25% reduced material costs for high-volume manufacturing
Siemens SIRIUS Wireless Sensor Unit DC Power Jack's Product Applications
Smart Fitness Trackers
Example: Fitbit Charge 5-style hidden charging ports for seamless wearable designs
Home Automation Sensors
Example: Philips Hue Motion Sensor-style compact power interfaces for discreet installations
Industrial IoT Nodes
Example: Siemens SIRIUS wireless sensor units requiring vibration-proof connectors
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: May I have free samples?
A: Sure, but we need to confirm the product details before shipment. Besides, it is better to provide the AI format artwork to us.
Q2: Do you provide anti-static protection for sensitive electronics integration?
A:Yes, all connectors include ESD shielding (15kV minimum) to protect against static discharge during handling or operation.
Q3: What are the lead time and packaging options for bulk orders?
A: Standard Orders: 15-20 days, packed in anti-static tape and reel.
Custom Requests: 25-30 days, with vacuum-sealed moisture barrier bags for humidity-sensitive environments.
Q4: How do your connectors handle high-temperature soldering processes?
A: The nylon housing withstands reflow soldering up to 260°C for 10 seconds. Precise pin alignment prevents warping during PCB assembly.
Q5:How do you package the goods?
A: We will package the swtiches in reels or in anti static bag with covering air bubble films. Besides, they will be putting into a inner box and then into a outer carton.
