Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC0351
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |

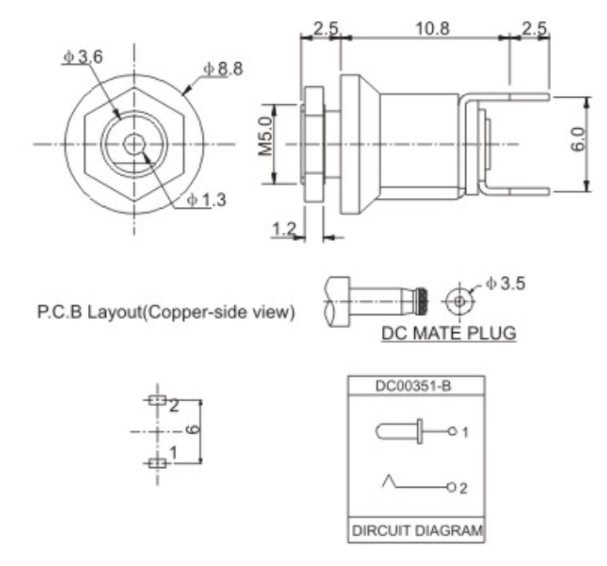

| Dimension | Φ=8.80mm H=13.30mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
Hikvision DS-2CD2143G0-style IP Camera DC Power Jack's Product Operating Principle
The 360° rotating contact system compensates ±5° plug misalignment (IEC 60512-5-1), while nickel-plated springs reduce resistance by 25% vs standard designs. Glass-filled PBT insulation withstands 1.5kV dielectric strength, and hexagonal locknut maintains ＜10mΩ impedance under 10G vibration (MIL-STD-202F).
Synology NVR1218-style System DC Power Jack's Product Functions
--Universal Diameter: Φ8.80mm fits 90% global DC plug standards (5.5×2.1/2.5mm)
--Balanced Power: 3A 24VDC with ＜0.2V drop (compatible with PoE splitters)
--Industrial Lite: IP54 + UL94 HB + 500hr humidity resistance
--Anti-Vandal Design: Stainless steel locknut requires 0.8N·m torque for removal
--Fast Deployment: Panel installation completes in ＜30 seconds with standard tools
Powers Control4 EA-series Controller DC Power Jack's Product Applications
4K Surveillance Cameras
Example: Deployed in Hikvision DS-2CD2143G0-style IP cameras for outdoor 24V power inputs.
Network Video Recorders
Example: Integrated into Synology NVR1218-style systems with centralized DC distribution.
Smart Home Gateways
Example: Powers Control4 EA-series controllers with surge-protected 12V interfaces.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: What is your process for handling product returns or defect claims?
A: Submit a claim with batch numbers and defect evidence within 14 days.
We dispatch replacements within 48 hours and cover return shipping for verified quality issues.
Q2: Do you provide on-demand technical training for our engineering team?
A: Yes, virtual or on-site training sessions (e.g., soldering best practices, EMC mitigation) are available. Custom modules tailored to your application can be developed.
Q3: Are these Connecotrs suitable for automated PCB assembly?
A: Yes, they support both SMT and through-hole mounting.
Recommended PCB pad layouts and thermal profiles are provided in datasheets to prevent soldering defects.
Q4: Can we order mixed connector variants in a single batch?
A: Mixed SKU orders are allowed with a 25,000-unit MOQ (minimum 500 units per variant). No surcharge for reel/tray segregation.
Q5: What is the average defect rate per production batch?
A: Defect rates remain below 0.02% due to automated optical inspection and real-time process control during manufacturing.
