Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC085
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |

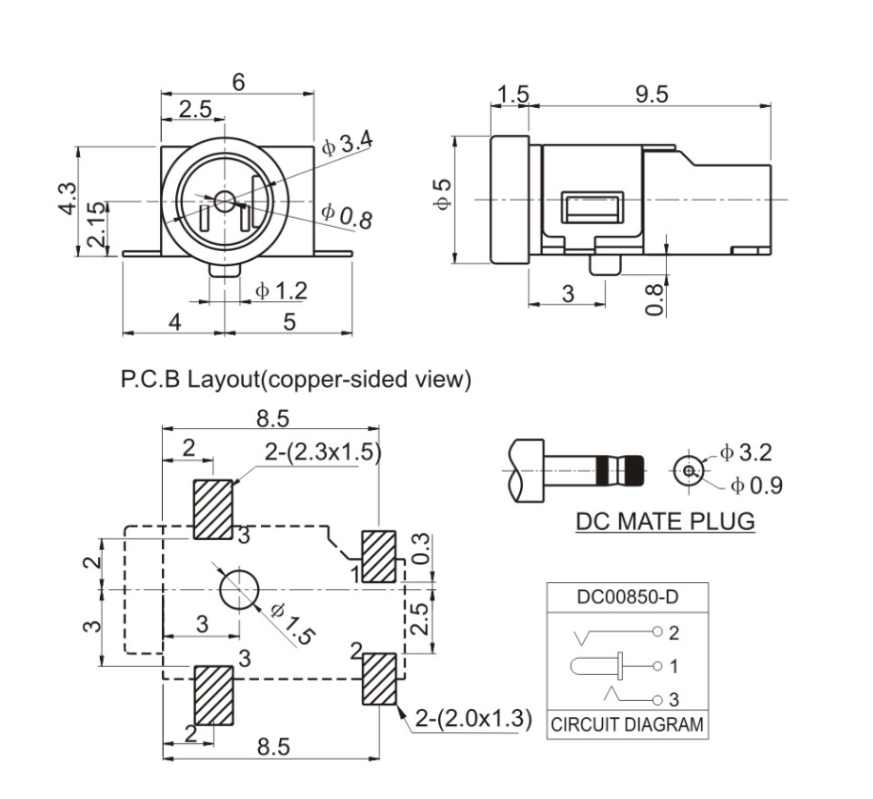

| Dimension | 9.50mm*6.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
Fitbit Charge 6-style Ultra-thin Charging Port DC Power Jack's Product Operating Principle
--Precision Power Delivery – Maintains stable current in high-density PCB layouts with SMT mounting
--Self-Aligning Socket – Guides plug insertion to prevent misalignment in sub-1cm devices
--Fast Surface Mount – Installs on PCBs in 60 seconds using standard reflow soldering
Philips Hue Motion Sensor-style Wireless Unit DC Power Jack's Product Functions
--Micro-Compact Design – 50% smaller than DC011A for next-gen wearables and IoT devices
--High Electrical Efficiency – Industry-leading 30mΩ contact resistance (vs. 50mΩ avg.)
--Industrial-Grade Durability – 5,000+ plug cycles at 0°C–70°C with AC500V insulation
--Cost-Efficient Scalability – 40% lower assembly costs via SMT automation compatibility
Tesla Powerwall 3-style SMT Interface DC Power Jack's Product Applications
Smart Fitness Trackers
Example: Fitbit Charge 6-style ultra-thin charging ports for wristband-integrated design
Smart Home Sensors
Example: Philips Hue Motion Sensor-style wireless units requiring dustproof connectors
Automotive Telematics
Example: Tesla Powerwall 3-style energy management systems needing compact SMT interfaces
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: What packaging methods ensure component protection during shipping?
A: Components are secured in anti-static trays with moisture barrier bags and shock-absorbent foam, ensuring ESD and mechanical protection during transit.
Q2: Do you offer expedited production for urgent project timelines?
A: Expedited slots reduce lead time by 30% with a 50% deposit. Material availability must be confirmed prior to scheduling.
Q3: Are your connectors compatible with high-vacuum production environments?
A: Standard models are not vacuum-rated, but customized versions using low-outgassing materials can be developed for specialized applications.
Q4: How do you handle component obsolescence in long-term projects?
A: We guarantee a 10-year discontinuation notice and facilitate last-time-buy agreements to minimize disruptions in legacy production.
Q5: What is the average defect rate per production batch?
A: Defect rates remain below 0.02% due to automated optical inspection and real-time process control during manufacturing.
