Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: PJ-202
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 0.5A 30V |
| Actuating force | 3~30N |

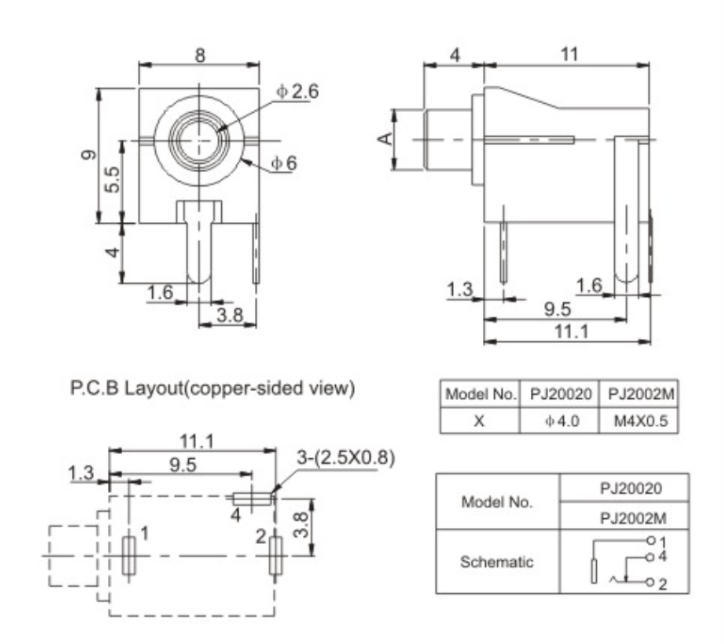

| Dimension | 15.00mm*8.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 50mΩ Max |
Allen&Heath SQ-7 Stage Box Headphone Jack's Product Operating Principle
--Bulkhead-Reinforced Housing - Steel-reinforced composite absorbs 30N mechanical stress without PCB deformation
--High-Cycle Contact Assembly - Beryllium copper terminals maintain ≤50mΩ through 5,000 insertions
--Thermal-Stable Solder Platform - Nickel-plated pads ensure consistent reflow at 260°C
Pioneer DJM-900NXS2 Mixer Headphone Jack's Product Functions
--Professional-Grade Durability - 15×8mm chassis exceeds headphone jack 2.5mm impact standards
--Signal Integrity Assurance - ≤50mΩ contact resistance preserves ±0.3dB frequency response
--Rapid Production Ready - SMT pads positioned for 20k UPH assembly lines
Yamaha HS8 Headphone Jack's Product Applications
Broadcast Mixing Consoles
Implementation: Allen & Heath SQ-7 stage box headphone jack 2.5mm monitor output
DJ Equipment Racks
Integration: Pioneer DJM-900NXS2 mixer 2.5mm audio jack cue port
Studio Reference Monitors
Usage: Yamaha HS8 2.5mm jack headphones calibration interface
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
We ensure high production efficiency and ship your order within 7 days after payment.
Q1: May I have free samples?
A: Sure, but we need to confirm the product details before shipment. Besides, it is better to provide the AI format artwork to us.
Q2: When can I get the quotation?
A: We will send you quotation within 24 hours after providing product details.
Q3: How long will the samples take to my place?
A: It depends on the express solution you choose, normally it will take 3-5 working days for the fastest way in hihgest price. And commonly in 5-8 days for the cost-effective way.
Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.
Q5. What about the shipping cost?
A: Depending upon the quantity, shipping method and destination, we will check for you soon if you provide the information to us.
