Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001

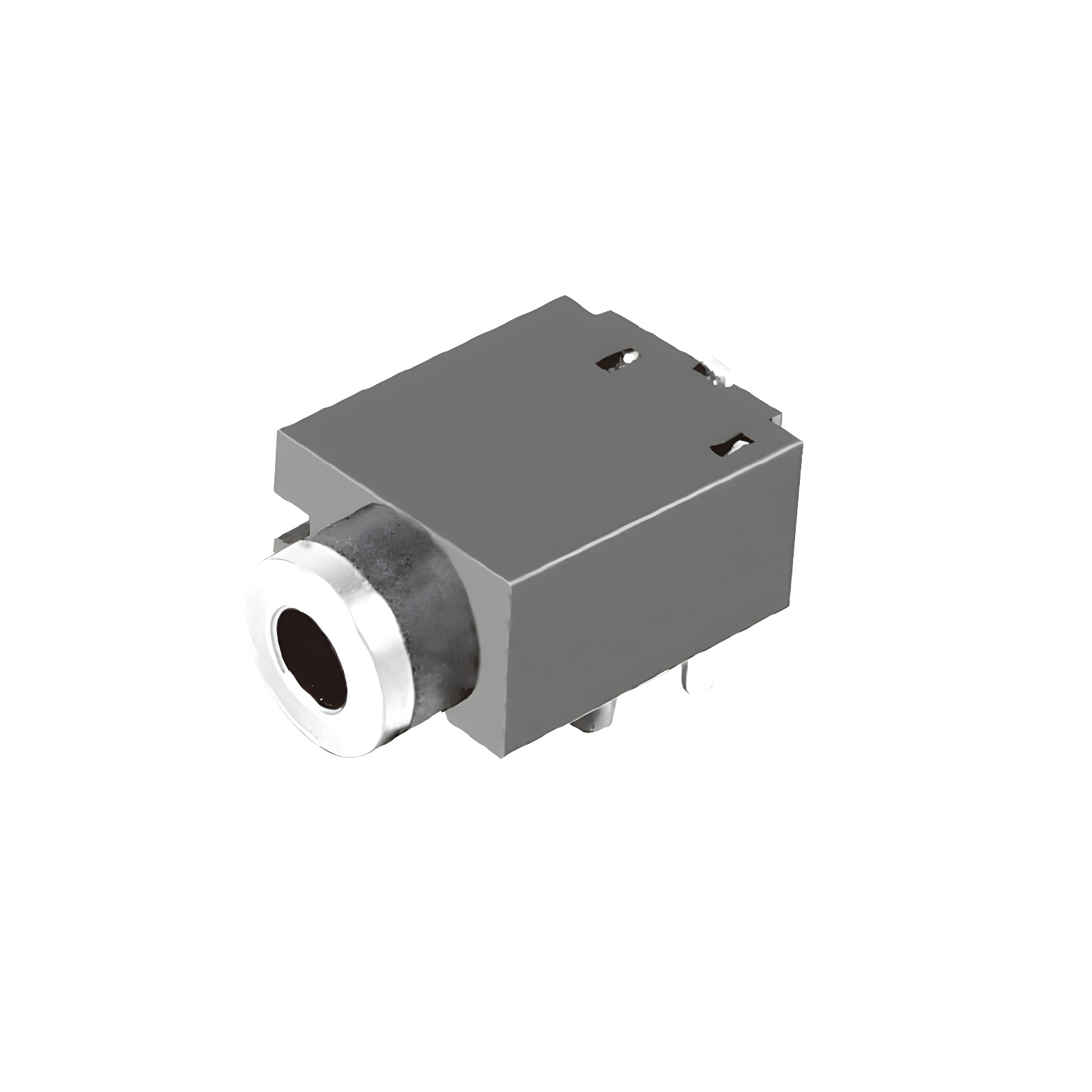

Model Number: PJ-203
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
Characteristics | Specification |
---|---|
Rating | 0.5A 30V |
Actuating force | 3~30N |

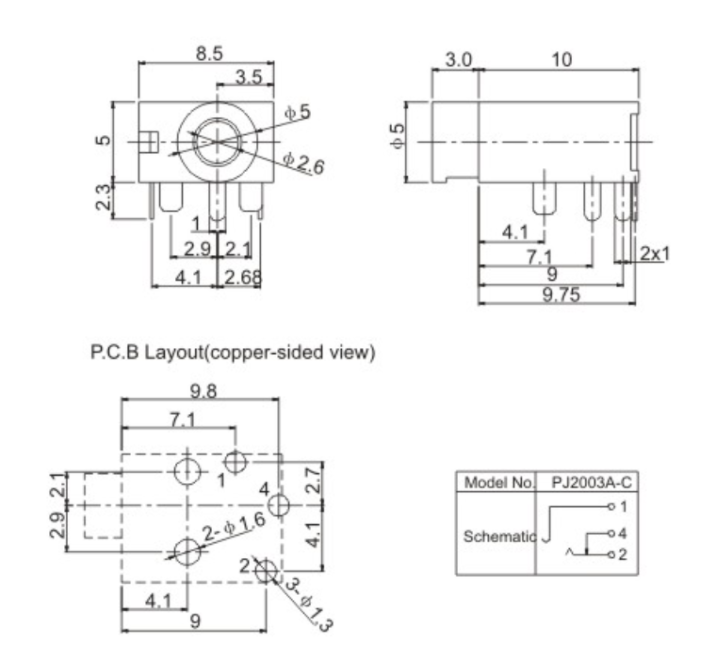

Dimension | 13.00mm*8.50mm |
Operating life | 5,000 cycles |
Dielectric Strength | AC500V |
Contact Resistance | 50mΩ Max |
Harman Kardon CarPlay Headphone Jack's Product Operating Principle
--Anti-Rocking Base Architecture - 8.5mm wide foundation prevents connector wobble during plug engagement
--Quad-Anchor Contact System - Phosphor bronze springs maintain ≤50mΩ resistance under mechanical stress
--Thermal-Compensation Terminals - Nickel-plated solder pads resist warping at 260°C reflow peaks
Aiphone GT-DMK Entry Station Headphone Jack's Product Functions
--Vibration-Proof Stability - 13×8.5mm base exceeds headphone jack 2.5mm impact resistance standards
--High-Torque Reliability - 30N insertion force capability with 5k cycle validation
--Signal Consistency - ≤50mΩ contact resistance ensures ±0.28dB frequency response
--Automation Efficiency - SMT pads enable 22k UPH assembly line speeds
Roland R-07 Field recorder Headphone Jack's Product Applications
Construction Communication Headsets
Implementation: MSA V-Gard Helmet headphone jack 2.5mm interface
Fitness Equipment Consoles
Integration: Technogym Excite Run console 2.5mm audio jack
Industrial Audio Monitors
Usage: Genelec 8010A reference speaker 2.5mm jack headphones calibration port
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
We ensure high production efficiency and ship your order within 7 days after payment.
Q1: What's the lead time of bulk order?
A: The lead time is normally 10-14 days. We will inform you lead time before order, and will confirm to you again after received payment.
Q2. What is the payment term?
A: For small quantity order, pls remit payment by PayPal. For bulk order, pls remit payment by T/T.
Q3. Can you open mold for teminal order or uncommon mold?
A: OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.
Q4:What is your PCB/ PCBA service?
A: Our PCB / PCBA service is about Medical industry, Automobile, Energy, Measurements, Consumer Electronics.
Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
