Earphone Jack 2.5 Mm

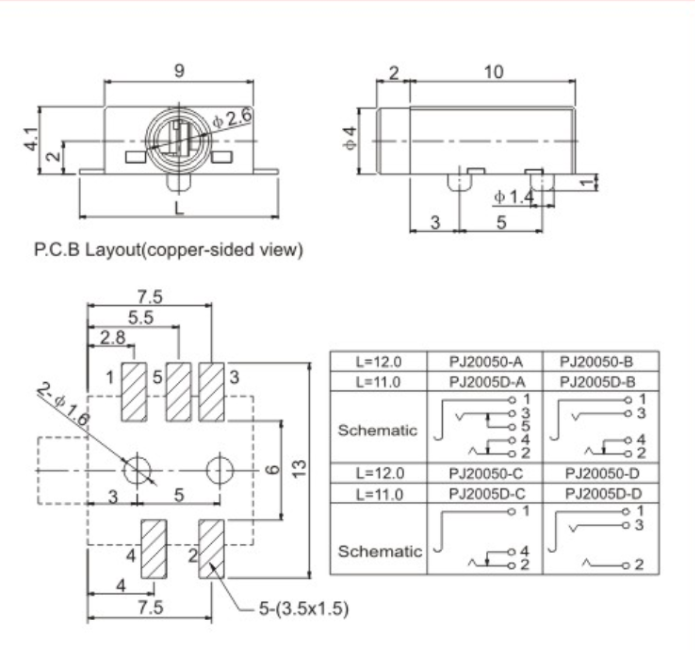

Technical Specifications of 2.5mm Surface-Mount Headphone Jack

• Current Rating: 0.5A at 30V

• Actuating Force: 3~30N

• Dimensions: 12.00mm × 9.00mm

• Operating Life: 5,000 insertion/removal cycles

• Dielectric Strength: AC500V

• Contact Resistance: Max 50mΩ

This 2.5mm audio jack is a compact, surface-mountable headphone socket designed for high-reliability applications in communication devices, portable media players, and medical monitors.

Motorola CLP1010e Two-Way Radio Headphone Jack's Product Operating Principle

1. A standard 2.5mm audio plug is inserted, making secure physical and electrical contact with the internal spring-loaded terminals to complete the circuit.

2. The SMT leads, soldered directly to the PCB, reliably transfer analog audio signals from the device's mainboard to the connected headphone or cable.

3. A balanced operating force (3-30N) provides a firm, stable connection while ensuring smooth insertion and removal for an excellent user experience.

SanDisk Sansa Clip Jam Monitor Headphone Jack's Product Functions

1. Provides a standard I/O port for transmitting clear analog audio signals to headphones, earpieces, or external audio equipment.

2. Enables a compact product footprint with its horizontal SMT mounting, saving valuable vertical space on the printed circuit board.

3. Streamlines the manufacturing process with a design fully compatible with high-speed, automated SMT and reflow soldering assembly lines.

4. Ensures high signal integrity with low contact resistance (50mΩ Max) and robust dielectric strength (AC500V) for noise-free performance

Welch Allyn Connex Spot Monitor Headphone Jack's Product Applications

1. Industrial: Used in handheld communication and diagnostic equipment for audio output.

1. Example: On a Motorola CLP1010e Two-Way Radio, it serves as the connection port for the earpiece and microphone accessory.

2. Consumer Electronics: Ideal for compact personal media players and portable gadgets requiring a small headphone connection.

1. Example: In a portable media player like the SanDisk Sansa Clip Jam, this jack provides the primary audio output for headphones.

3. Medical: Integrated into portable patient monitoring systems for discrete audio alerts or data transfer.

1. Example: Within a Welch Allyn Connex Spot Monitor, it can function as the port for a clinician’s earpiece to hear vital sign alerts privately.

Product Advantages

• Compact 2.5mm form factor ideal for space-limited devices

• Reliable spring-loaded contacts ensure stable signal transfer

• Surface mount design streamlines assembly and lowers manufacturing cost

• Excellent electrical properties for high-signal integrity

• Versatile compatibility with consumer, medical, and industrial electronics

Frequently Asked Questions (FAQ)

Q1: What devices is this headphone jack compatible with?
A: It is compatible with two-way radios, MP3 players, portable monitors, and other compact electronic devices requiring a 2.5mm audio interface.

Q2: Is this jack suitable for automated SMT production?
A: Yes, its surface-mount design and reflow soldering compatibility make it ideal for high-speed automated assembly lines.

Q3: How durable is the connection?
A: With an actuating force of 3–30N and a life span of 5,000 cycles, the jack ensures consistent performance over time.

Q4: Does it support stereo or mono audio?
A: The audio output configuration can be customized, supporting either stereo or mono channels depending on product design.
