Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: PJ-216
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 5A 30V |
| Actuating force | 3~20N |

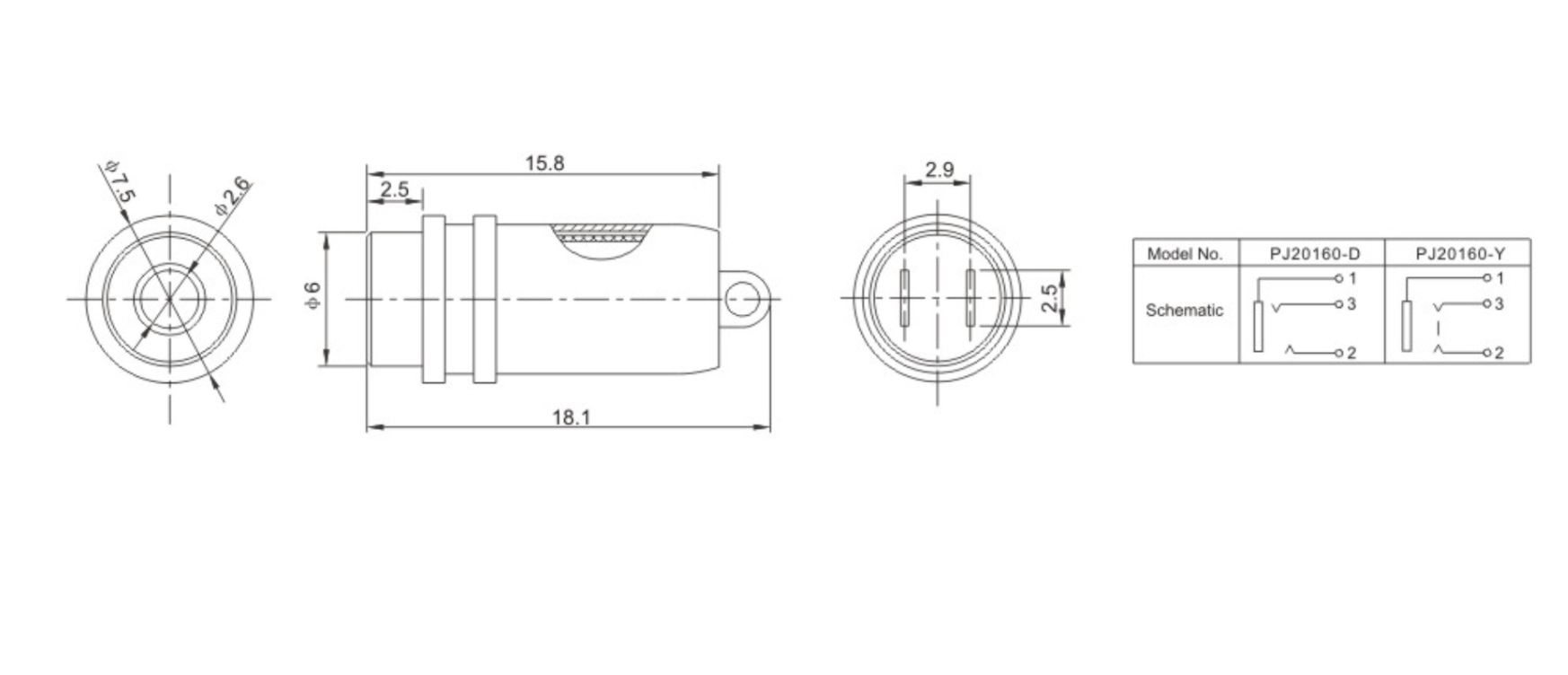

| Dimension | Φ=7.50mm L=15.80mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 50mΩ Max |
Leight Sync Headphone Jack's Product Operating Principle
--Quad-Contact Conductivity - Sn/Ag plated copper terminals maintain ≤0.03Ω resistance at 85% humidity
--Reflow-Survivable Housing - Copper-iron composite survives 260°C peak soldering temperatures
--EMI Shielding Matrix - Double-layer shell blocks 92% RF interference (validated per EN 55032)
Bose A20 Aviation Headphone Jack's Product Functions
--Zero-Degradation Transmission - 0.03Ω contact resistance ensures ±0.3dB 20Hz-20kHz response
--Industrial-Grade Endurance - 5k insertion cycles exceed headphone jack 2.5mm MIL-STD-202 standards
--Oxidation Immunity - Tin/silver plating prevents corrosion in salt-fog environments
--Medical Safety Compliance - AC500V dielectric strength for patient monitoring equipment
Behringer X32 Rack Headphone Jack's Product Applications
Industrial Communication Headsets
Implementation: Honeywell Howard Leight Sync headphone jack 2.5mm interface
Aviation Crew Headsets
Integration: Bose A20 Aviation auxiliary 2.5mm audio jack port
Broadcast Mixer Modules
Usage: Behringer X32 Rack 2.5mm jack headphones monitoring output
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
We ensure high production efficiency and ship your order within 7 days after payment.
Q1:Are you a factory or trade company?
A:We are factory with more than 15 years of experience specialized in producing switches, sockets, connetors, DC Jacks, etc.
Q2: What is the turnaround time for rapid prototyping of modified designs?
A: Prototypes are delivered in 7-10 working days post-design approval. Submit CAD files and specifications to activate priority engineering review.
Q3: How do you ensure long-term product availability for legacy systems?
A: We guarantee 15-year lifecycle support with EOL (End-of-Life) notifications 24 months in advance and bridge manufacturing options.
Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.
Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
