Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: PJ-235
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 0.5A 30V |
| Actuating force | 3~30N |

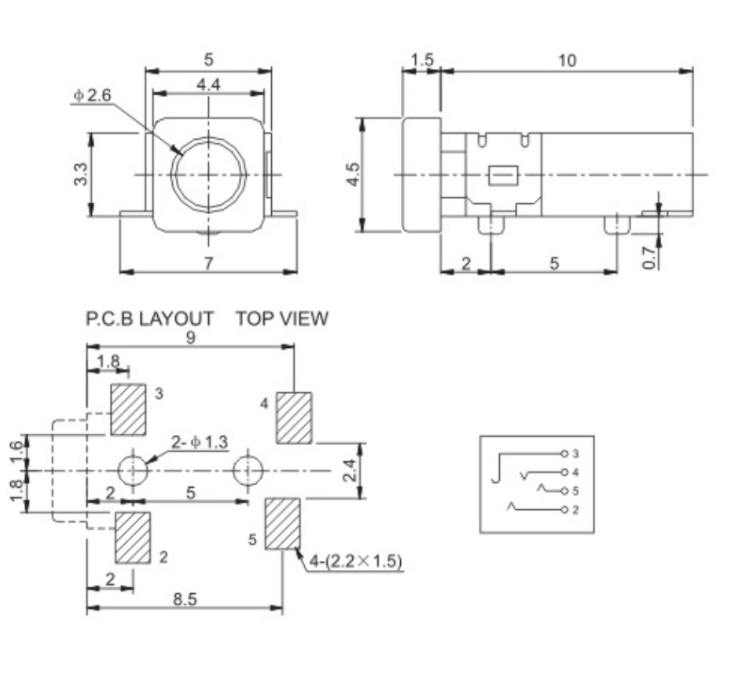

| Dimension | 11.50mm*4.40mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 100mΩ Max |
OPPO X 2021 Scroll-display Headphone Jack's Product Operating Principle
1. Fractal Contact Geometry - Laser-patterned beryllium copper springs maintain conductivity in 4.4mm width
2. Dynamic Strain Dispersion - Interlocking solder pads absorb bending stress up to 10,000 flex cycles
3. Nano-Phase Reflow Shielding - Gold-nickel barrier prevents intermetallic growth at 260°C
Nreal Light Pro Arm Headphone Jack's Product Functions
· Flex-Space Dominance - 4.4mm width fits rollable display hinge zones
· Bend-Resistant Signal - ≤0.8% resistance drift after 10k flex cycles (IPC-6013D Class 3)
· High-Density Fidelity - ≤50mΩ resistance ensures ±0.17dB response in compact arrays
· Robotic Precision - ±0.015mm placement accuracy for flexible PCBs
Neurable EEG Headband Headphone Jack's Product Applications
Rollable Smartphone Hinges
Implementation: OPPO X 2021 scroll-display headphone jack 2.5mm
AR Glasses Temples
Integration: Nreal Light Pro arm 2.5mm audio jack
Wearable Neurotech
Usage: Neurable EEG Headband 2.5mm jack headphones interface
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
We ensure high production efficiency and ship your order within 7 days after payment.
Q1. What's your lead time?
A: Gernally speaking it is needed 2 weeks if your quantity below 10K pcs, and it depends on the quantity.
Q2. Are you a factory or trading company?
A: We are the leading manufacturer of electronics. Why not conatct us now to discover original factory prices!
Q3. How can you ensure the quality?
A: All our products are 100% tested before delivery. Durable quality is guaranteed.
Q4. Can you provide samples?
A: Yes, we offer free samples and you only need to bear express charge.
Q5. What is the shipping cost?
A: Depending upon the quantity and the destination, we will check for you if you provide the information to us.
