Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC056
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |

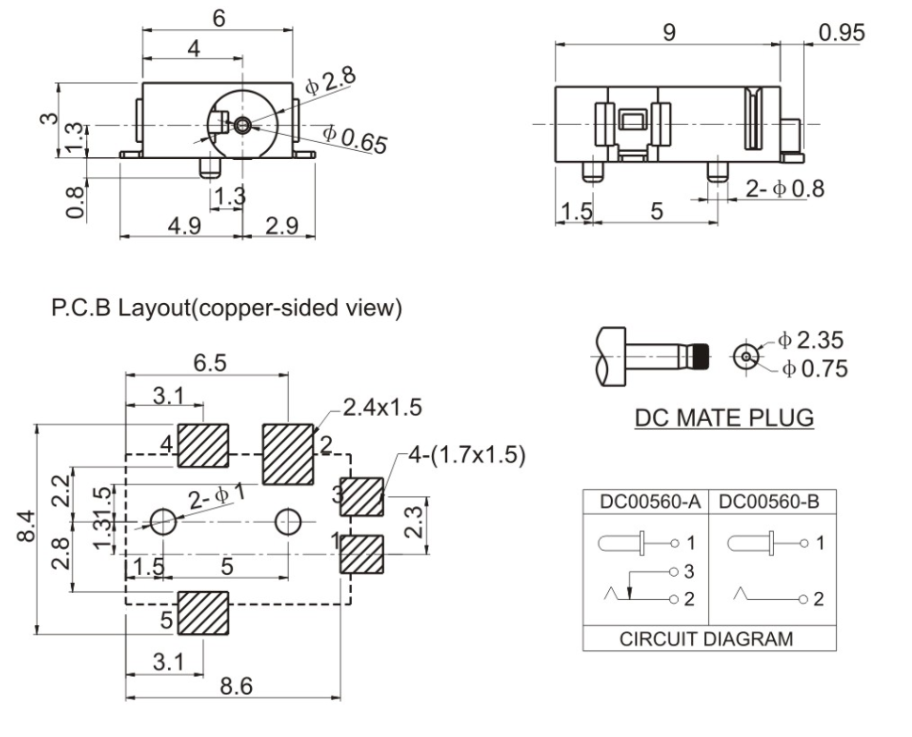

| Dimension | 9.00mm*6.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
Apple Watch Ultra-style Health Tracker DC Power Jack's Product Operating Principle
--Miniaturized SMT Design – 3mm height enables integration into sub-1cm electronics with reflow solder compatibility
--Dual-Axis Contact System – Forked spring contacts grip plugs from two angles for vibration-resistant connections
--Self-Aligning Keyway – Prevents misalignment during automated PCB assembly while ensuring 500VAC insulation
Siemens Synco™ HVAC Controller DC Power Jack's Product Functions
--Space-Saving Profile – 60% smaller than standard DC jacks for wearable and IoT applications
--Long-Lasting Durability – 5,000 insertion cycles tested under industrial vibration standards
--Ultra-Low Resistance – <30mΩ contact impedance minimizes power loss in battery-operated devices
--Thermal Resilience – Operates continuously from 0°C Arctic storage to 70°C industrial heat
Butterfly iQ+ handheld Scanner DC Power Jack's Product Applications
Smart Wearables
Example: Apple Watch Ultra-style health trackers requiring miniaturized charging interfaces
Building Automation Sensors
Example: Siemens Synco™ HVAC controllers needing compact, long-life power connectors
Portable Ultrasound Devices
Example: Butterfly iQ+ handheld scanners with strict space/weight constraints
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1:Are you a factory or trade company?
A:We are factory with more than 15 years of experience specialized in producing switches, sockets, connetors, DC Jacks, etc.
Q2: What is the turnaround time for rapid prototyping of modified designs?
A: Prototypes are delivered in 7-10 working days post-design approval. Submit CAD files and specifications to activate priority engineering review.
Q3: How do you ensure long-term product availability for legacy systems?
A: We guarantee 15-year lifecycle support with EOL (End-of-Life) notifications 24 months in advance and bridge manufacturing options.
Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.
Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
Previous: DC052 DC Power Jack
Next: DC057 DC Power Jack
