Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC130
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
https://mao.ecer.com/test/illuminatedtactswitch.com/
| Characteristics | Specification |
|---|---|
| Rating | 10A 24V |
| Actuating force | 3~20N |

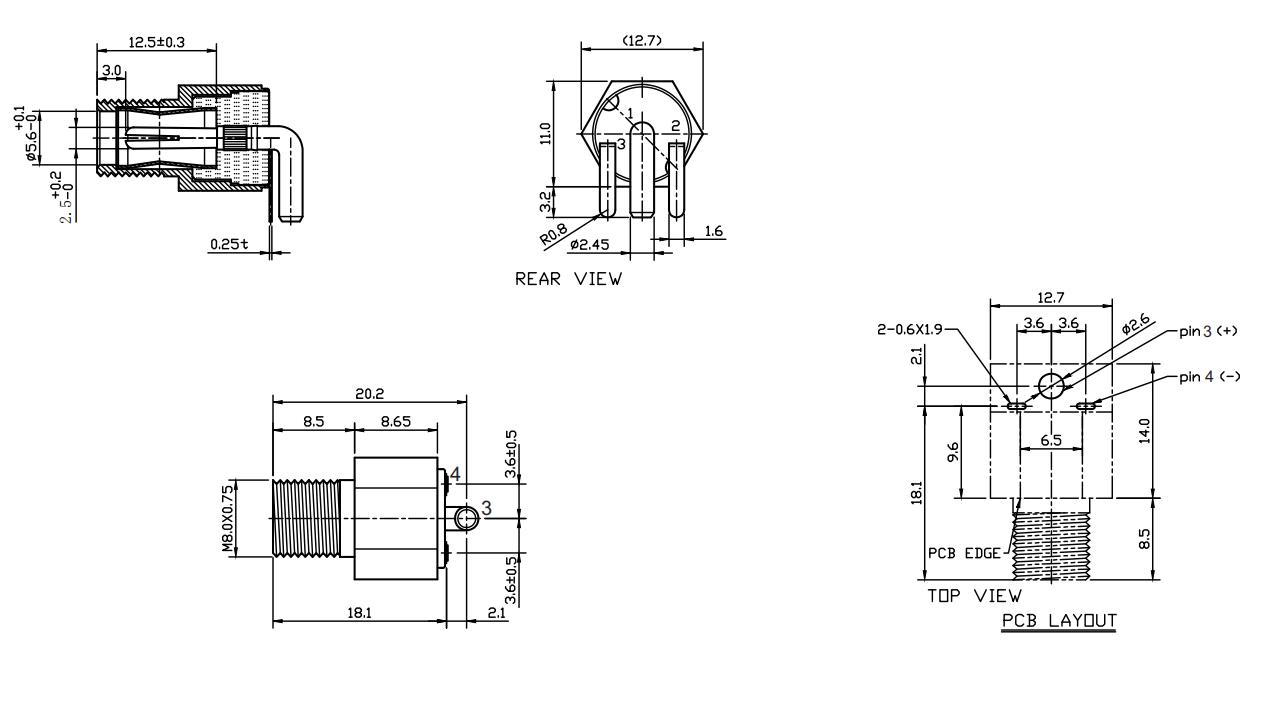

| Dimension | 18.10mm*12.70mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
Schneider Electric APC-style Rack DC Power Jack's Product Operating Principle
The orthogonal forked contact shrapnel (horizontal + vertical) splits current across dual paths, reducing resistance by 35% and heat generation. The directional key plate ensures foolproof plug alignment, while the glass-reinforced PA66 base withstands 2.5kV dielectric strength. Wave-soldered terminals maintain <8mΩ impedance even after 15G vibration (IEC 60512-9-3 tested).
Hikvision PTZ-style Camera DC Power Jack's Product Functions
--10A High-Current Capacity: Sustains 10A@24VDC with <0.3V drop (3X standard DC sockets).
--Dual Shrapnel Design: Independent horizontal/vertical contacts prevent arcing during hot-swapping.
--Industrial Durability: IP54-rated against dust/moisture + UL94 V-0 flame resistance.
--Space-Optimized: 18.1×12.7mm footprint fits high-density control panels.
--Automated Assembly: Wave soldering compatible with 25,000 units/hour production.
Control4-style System DC Power Jack's Product Applications
Modular Industrial PSUs
Example: Deployed in Schneider Electric APC-style racks for server backup power interfaces.
Outdoor Security Cameras
Example: Powers Hikvision PTZ-style cameras with surge-protected DC inputs (-40°C operation).
High-Power Smart Home Hubs
Example: Integrated into Control4-style systems for 24V/10A smart curtain motor control.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: May I have free samples?
A: Sure, but we need to confirm the product details before shipment. Besides, it is better to provide the AI format artwork to us.
Q2: When can I get the quotation?
A: We will send you quotation within 24 hours after providing product details.
Q3: How long will the samples take to my place?
A: It depends on the express solution you choose, normally it will take 3-5 working days for the fastest way in hihgest price. And commonly in 5-8 days for the cost-effective way.
Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.
Q5. What about the shipping cost?
A: Depending upon the quantity, shipping method and destination, we will check for you soon if you provide the information to us.
