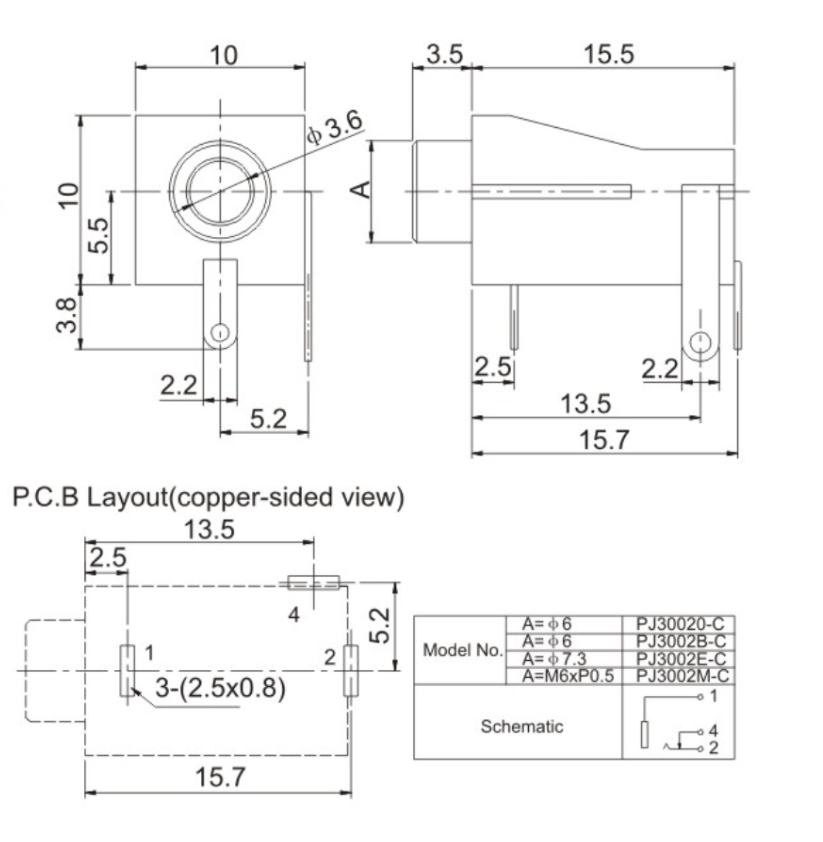

3.5 jack socket

Sound Devices MixPre-3 II Field Recorder Headphone Jack's Product Operating Principle

1. When a 3.5mm audio plug is inserted, internal spring-loaded contacts make a secure connection with the plug's tip, ring, and sleeve.

2. The established contact allows for the stable transmission of analog audio signals between the device's PCB and the connected headphone or cable.

3. An internal switch detects the plug's presence, automatically muting internal speakers and routing the audio signal to the headphone output.

Yamaha R-S202 Stereo Receiver Headphone Jack's Product Functions

1. Provides a standard, universal port for connecting headphones, earphones, and external speakers for private audio output.

2. Enables audio input from external sources like microphones or line-in devices for recording and communication.

3. DIP (Dual In-line Package) pins ensure robust physical mounting and stable electrical connection to the circuit board.

4. Engineered for high-durability, withstanding over 5,000 insertion/removal cycles for a long service life in demanding applications.




Keithley 2015-P Audio Analyzing Multimeter Headphone Jack's Product Applications

1. Professional Audio: Sound Devices MixPre-3 II Field Recorder - Utilized as the primary headphone monitoring output, allowing sound engineers to accurately monitor captured audio levels in real-time on location.

2. Consumer Electronics: Yamaha R-S202 Stereo Receiver - Integrated into the front panel as the headphone output, enabling private listening to various audio sources without disturbing others in a domestic setting.

3. Test & Measurement: Keithley 2015-P Audio Analyzing Multimeter - Functions as the headphone monitor 3.5 jack socket, allowing technicians to audibly inspect audio signals for distortion or anomalies during diagnostics.
