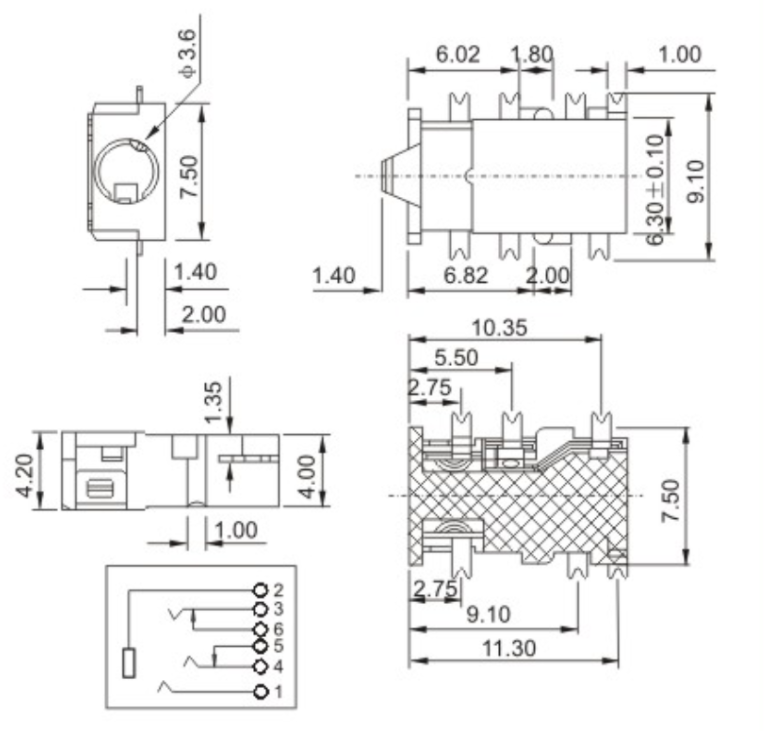

PJ-3126B: SMT Horizontal 3.5mm Audio Headphone Jack

Datalogic Skorpio X5 Headphone Jack's Product Operating Principle

1. When a 3.5mm audio plug is inserted, internal spring contacts are displaced, making a secure electrical connection with the plug's contacts.

2. The SMT pins transfer the analog audio signals from the plug's contacts directly to the printed circuit board (PCB) for processing.

3. Its robust design ensures a consistent 3~30N operating force, providing a satisfying tactile feel and a stable connection upon insertion and

Masimo Rad-97 Pulse CO-Oximeter Headphone Jack's Product Functions

1. Provides a standard interface for connecting headphones, earbuds, or external speakers for clear audio playback.

2. Reliably transmits left and right channel audio signals, ensuring a high-quality stereo listening experience.

3. The surface-mount (SMT) design allows for efficient automated assembly, saving manufacturing time and costs.

4. Engineered for a 5,000-cycle lifespan, ensuring a stable and long-lasting connection for frequently used devices
