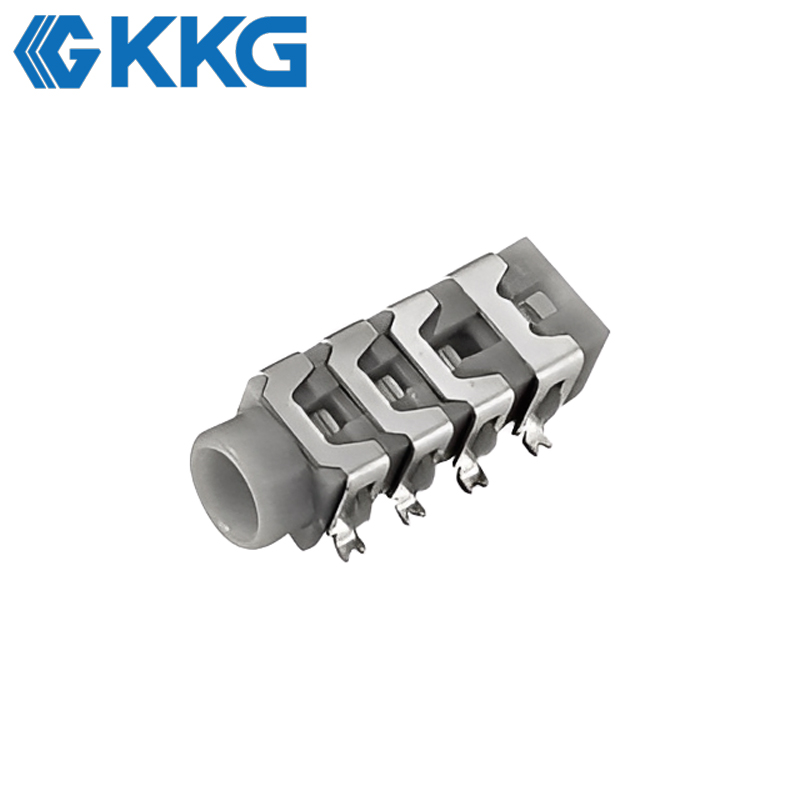

PJ-313E: Reliable 8P 3.5mm SMT TRS Stereo Jack

Honeywell BW Solo Headphone Jack's Product Operating Principle

1. TRS Connection: The Tip-Ring-Sleeve (TRS) 3-pole design provides separate contacts for the left audio channel, right audio channel, and a common ground.

2. Secure Contact: When a TRS plug is inserted, the jack's internal contacts establish a firm and stable connection, ensuring clear and consistent stereo sound.

3. Signal Transmission: It serves as a reliable interface to transmit analog audio signals from a device's circuit board to external equipment like headphones.

3M Littmann CORE Digital Stethoscope Headphone Jack's Product Functions

1. High-Fidelity Stereo: Delivers clean, two-channel stereo audio for an immersive and accurate listening experience.

2. Durable Construction: Engineered to withstand 5,000 insertion/removal cycles, guaranteeing a long and reliable service life.

3. Efficient Manufacturing: The SMT-compatible design streamlines the assembly process, making it ideal for high-volume production.

4. Signal Integrity: A low contact resistance of 50mΩ (max) ensures minimal signal loss and superior audio quality.

IK Multimedia iRig Pro I/O Headphone Jack's Product Applications

1. Industrial: Utilized in the Honeywell BW Solo portable gas detector, providing an audio output for audible alarms through headphones in loud work environments.

2. Medical: Integrated into the 3M Littmann CORE Digital Stethoscope, allowing medical professionals to output amplified sounds to recording devices or headphones.

3. Domestic (Consumer Electronics): Serves as the headphone monitoring output on the IK Multimedia iRig Pro I/O, a mobile audio interface for musicians, providing a clear 3.5 mm audio signal.
