Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: PJ-3212A
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
Characteristics | Specification |
---|---|
Rating | 0.5A 30V |
Actuating force | 3~30N |

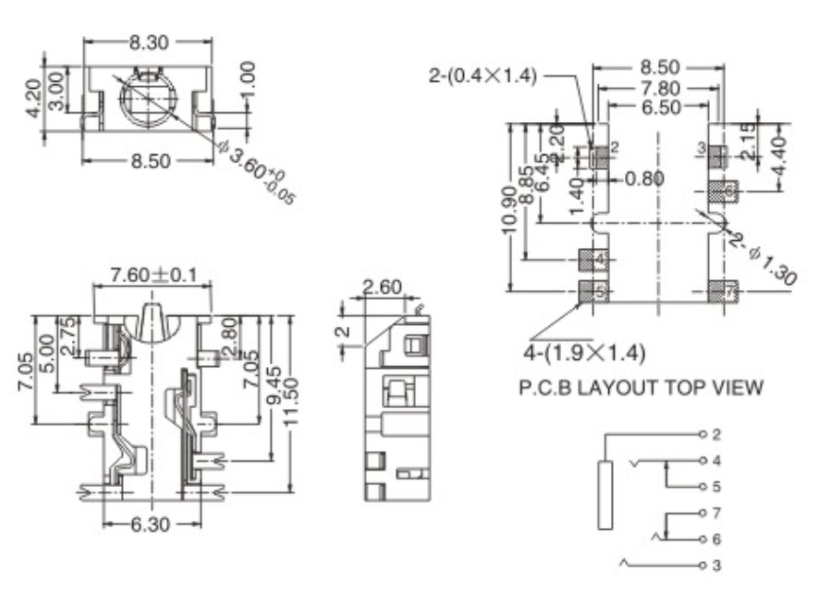

Dimension | 11.50mm*8.30mm |
Operating life | 5,000 cycles |
Dielectric Strength | AC500V |
Contact Resistance | 50mΩ Max |
Delta DOP-100 Series Headphone Jack's Product Operating Principle
When a 3.5mm plug is inserted, it connects with internal spring-loaded terminals, establishing secure electrical paths for the audio channels.
These terminals efficiently route stereo audio signals (left/right) and ground from the PCB to the connected headphones or external audio device.
The mechanism ensures a stable, low-resistance connection, minimizing signal loss and interference for clear, uninterrupted audio transmission.
Mackie Mix5 5-Channel Compact Mixer Headphone Jack's Product Functions
Provides a universal standard audio output port for a wide range of electronic devices.
Enables a secure connection to wired headphones, speakers, and external recording equipment.
Facilitates reliable audio signal transfer in a compact, surface-mount form factor.
Designed for automated manufacturing with reflow soldering compatibility for production efficiency
Heal Force Prince 180B Headphone Jack's Product Applications
Industrial Control: Used in a Human-Machine Interface (HMI) like the Delta DOP-100 Series, where it serves as a panel-mounted audio output for system alerts and status tones, allowing operators to use headphones in noisy environments.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
We ensure high production efficiency and ship your order within 7 days after payment.
Q1:Are you a factory or trade company?
A:We are factory with more than 15 years of experience specialized in producing switches, sockets, connetors, DC Jacks, etc.
Q2: What is the turnaround time for rapid prototyping of modified designs?
A: Prototypes are delivered in 7-10 working days post-design approval. Submit CAD files and specifications to activate priority engineering review.
Q3: How do you ensure long-term product availability for legacy systems?
A: We guarantee 15-year lifecycle support with EOL (End-of-Life) notifications 24 months in advance and bridge manufacturing options.
Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.
Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
