Switch Series Product Collection KKG Developing with the Green Planet
Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001

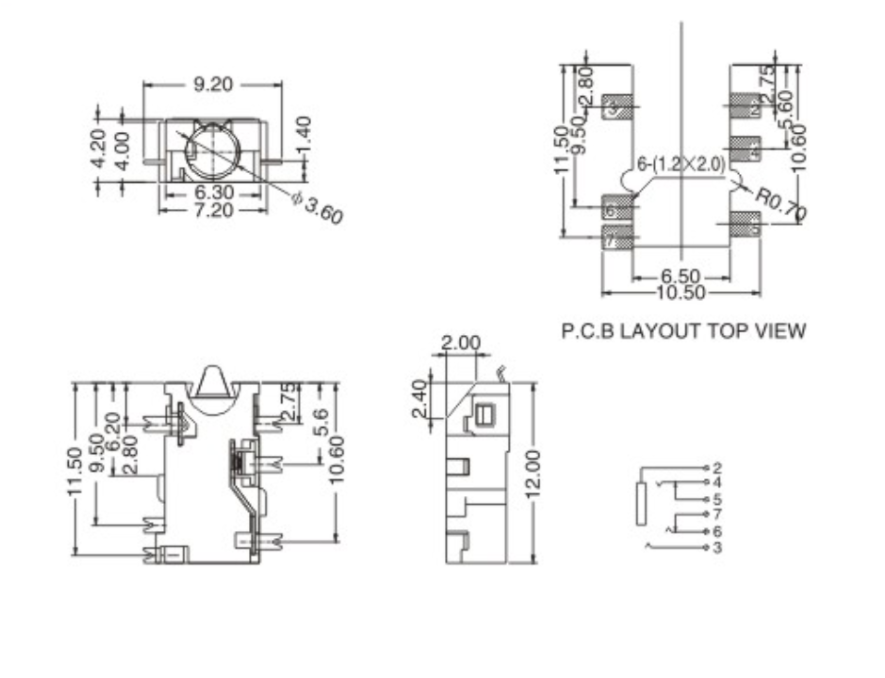

Model Number: PJ-3212C
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
Tascam Portacapture X8 Headphone Jack's Product Operating Principle
When a plug is inserted, its Tip, Ring, and Sleeve contacts connect with the jack's internal springs, completing the electrical circuit.
The jack routes the left channel, right channel, and ground signals from the plug to the corresponding SMT pads on the circuit board.
The 3-30N operating force ensures a secure physical connection, providing stable audio transmission and preventing accidental disconnection.
Advantech AIM-75S Headphone Jack's Product Functions
Delivers clear, high-fidelity stereo audio output for headphones, speakers, and line-out applications.
Serves as a reliable audio input port for microphones and other external line-in audio sources.
Provides a durable, surface-mount connection designed to withstand up to 5,000 insertion cycles for long-term use.
Ensures excellent signal integrity with low contact resistance (50mΩ Max) for professional-grade audio performance.
Bose SoundLink Revolve+ Headphone Jack's Product Applications
Professional Audio: Used as the primary headphone output on the Tascam Portacapture X8 audio recorder, providing a reliable 3.5 mm trs connection for live monitoring.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
We ensure high production efficiency and ship your order within 7 days after payment.
Q1. How can you ensure the quality?
A: All our products are 100% tested before delivery. Durable quality is guaranteed.
Q2: How can we get the samples and best quotation?
A:We need to know more details about the products you inquired.
For example, what are the functions you need? The specification of it and which finished products will be used with it?
It is better to provide AI fromat artwork to us so we could provide best quotation to you asap.
We could provide the free samples to you.
Q3: How long will the samples take to my place?
A: It depends on the express solution you choose, normally it will take 3-5 working days for the fastest way in hihgest price. And commonly in 5-8 days for the cost-effective way.
Q4. Can you open mold for teminal order or uncommon mold?
A: OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.
Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special
requirement.
For PCBA quotation, please provide Gerber data / files and BOM (bill of materials). If you need function test, please also provide
the test instruction/ procedure.
