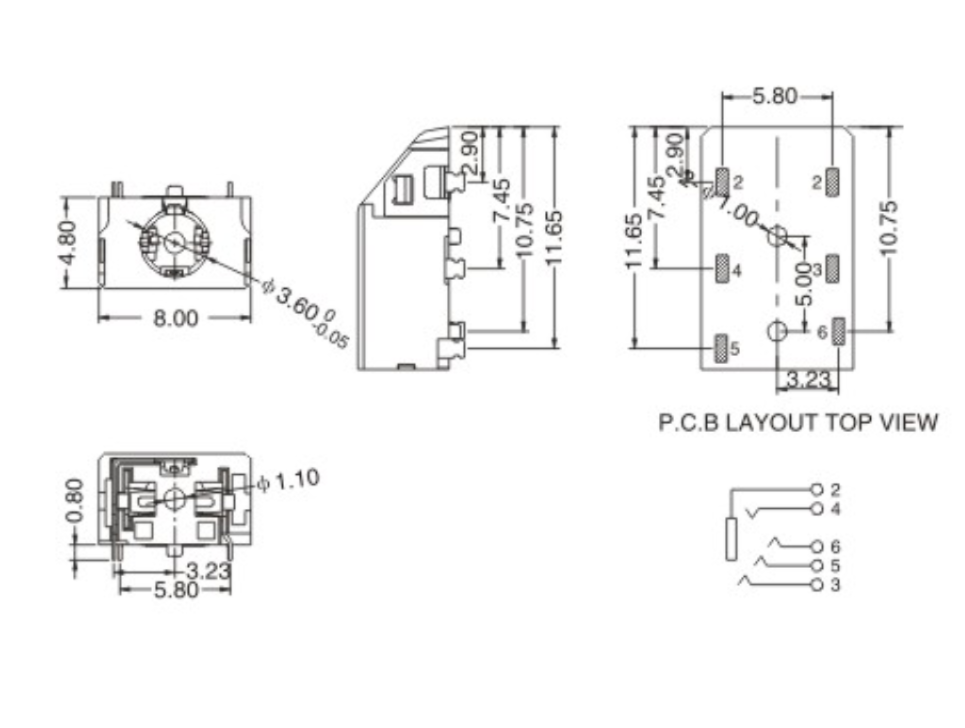

PJ-3213 | 3.5mm SMT Horizontal Audio Jack

Nintendo Switch Lite Headphone Jack's Product Operating Principle

1. Upon inserting a standard 3.5mm plug, its metallic contacts align perfectly with the jack's internal spring-loaded terminals.

2. This physical connection establishes secure, isolated electrical paths for left, right, and ground audio channels.

3. The SMT pads ensure a robust solder connection to the PCB, providing excellent mechanical stability and optimal signal integrity.

Clover Flex Headphone Jack's Product Functions

1. Delivers a standard, universal port for connecting headphones, speakers, and auxiliary audio sources.

2. Facilitates clear, high-quality stereo audio signal transmission from a device's main circuit board.

3. Its surface-mount design allows for efficient, high-volume automated assembly, streamlining production.

4. Provides a durable physical connection point, rated for over 5,000 insertion and removal cycles.

3M Littmann CORE Digital Stethoscope Headphone Jack's Product Applications

1. Consumer Electronics: Used for headphone output on portable gaming consoles for an immersive audio experience, such as on the Nintendo Switch Lite.

2. Commercial Tech: Integrated into commercial POS (Point of Sale) systems for audio prompts and service alerts, like the headphone port on a Clover Flex terminal.

3. Medical Devices: Provides the essential 3.5 mm audio jack on modern medical instruments for real-time audio analysis, as seen on the 3M Littmann CORE Digital Stethoscope.
