3.5mm SMT Horizontal Audio Phone Jack - PJ-3273A
  • 3.5mm SMT Horizontal Audio Phone Jack - PJ-3273A

3.5mm SMT Horizontal Audio Phone Jack - PJ-3273A

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: PJ-3273A


Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union


More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com


  • Product Details

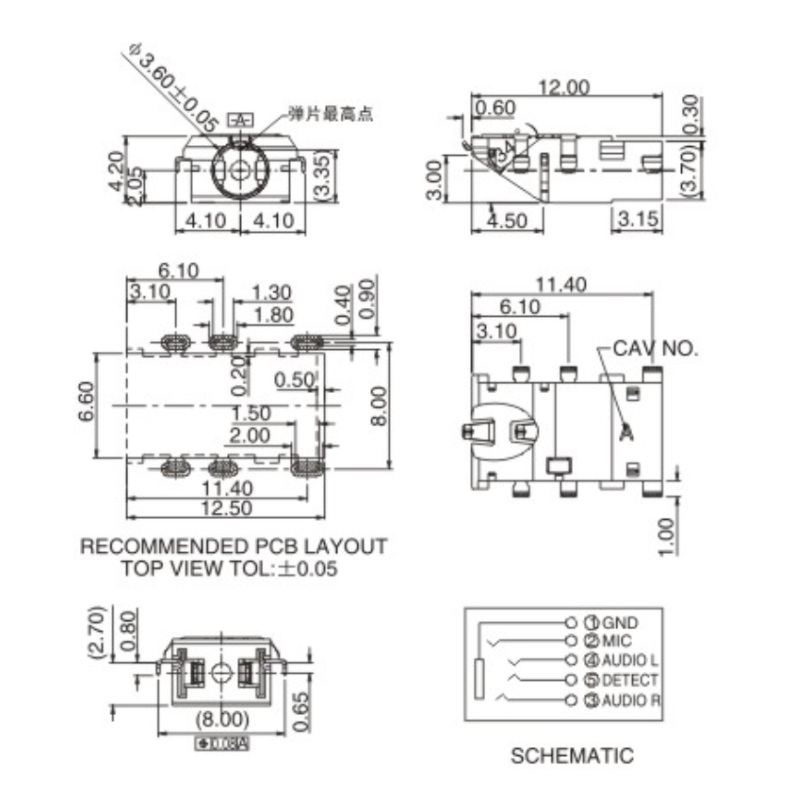

  • Dimension
  • Temperature Profile
  • Packaging Efficiency
  • FAQ
CharacteristicsSpecification
Rating0.5A 30V
Actuating force3~30N
Dimension12.00mm*6.60mm
Operating life5,000 cycles
Dielectric StrengthAC500V
Contact Resistance
50mΩ Max


Red Lion Graphite HMI G10C Headphone Jack's Product Operating Principle



  1. When a standard 3.5mm plug is inserted, the internal spring-loaded contacts securely connect with the plug’s corresponding terminals (tip, ring, sleeve).

  2. This establishes a stable electrical pathway, transferring audio signals from the PCB to the connected device like headphones or an auxiliary cable.

  3. An internal switch mechanism detects the plug's presence, often used to automatically mute a device's internal speakers and redirect the audio output.


Analogue Pocket Headphone Jack's Product Functions



  1. Provides a universal female 3.5mm audio output for headphones, earphones, and external line-in/line-out connections.

  2. Enables direct, space-efficient audio connectivity on printed circuit boards through Surface Mount Technology (SMT).

  3. Guarantees long-term performance and durability with a robust design rated for a minimum of 5,000 insertion/removal cycles.

  4. Ensures superior signal integrity with low contact resistance (≤50mΩ), minimizing audio quality loss or interference.


Tascam DR-05X Stereo Handheld Digital Audio Recorder Headphone Jack's Product Applications



  1. Industrial Automation: In a Red Lion Graphite HMI G10C, this jack serves as an audio output port for system alerts and audible alarms, allowing operators to use headphones in noisy environments.

  2. Consumer Electronics: Utilized in the Analogue Pocket portable gaming console as the primary headphone port jack 3.5 mm for an immersive personal audio experience during gameplay.

  3. Professional Audio: Integrated into a Tascam DR-05X Stereo Handheld Digital Audio Recorder, it functions as the line-out/headphone jack for real-time monitoring of recordings and playback.

PJ-3273A

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature



We ensure high production efficiency and ship your order within 7 days after payment.

Packaging


Q1: Is KKG Electronics the actual manufacturer of its components?

A: Yes, we are. KKG Electronics is an original equipment manufacturer (OEM) with a 15-year history of designing and producing electronic components. When you work with us, you are engaging directly with the factory that makes your tact switches, micro switches, connectors, and jacks. This ensures direct communication, production oversight, and factory-direct pricing.



Q2: What is the process for getting a price quote and samples?

A: To receive a fast and accurate quotation, please share the technical requirements for the component you need, including specifications and its end-application. For custom parts, an AI format artwork or technical drawing is best. We will review your request and are happy to provide free samples to validate fit and function in your design.



Q3: How quickly can I expect to receive a quotation?

A: Our team is committed to a swift response. After you provide the necessary product details, we aim to deliver a comprehensive quotation within 24 business hours.



Q4: What quality control measures do you have in place?

A: Our quality assurance is built on a zero-defect principle. Every single component manufactured at KKG, from switches to connectors, undergoes rigorous 100% testing for both electrical performance and mechanical durability before it is approved for delivery, ensuring it meets our high standards.



Q5: How are components packaged to ensure they arrive safely?

A: We use multi-layer protective packaging for all shipments. Components are placed in anti-static bags or on tape-and-reel (ideal for automated assembly), cushioned with protective film, and sealed in reinforced inner boxes and durable outer cartons for maximum protection.
