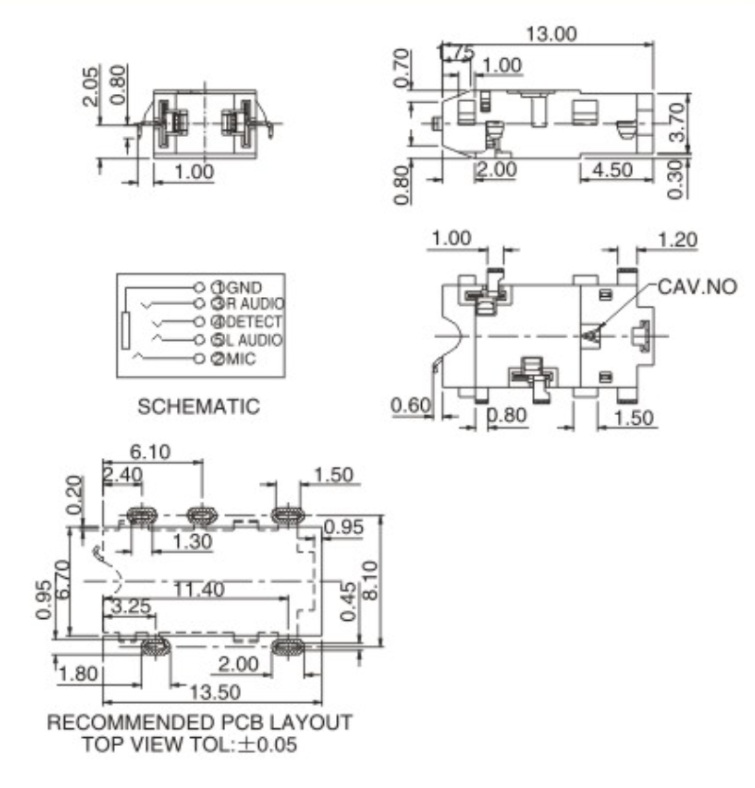

3.5mm SMT Horizontal Audio Socket | Model: PJ-3277

Pioneer DJ DDJ-200 Smart DJ Controller Headphone Jack's Product Operating Principle

1. A 3.5mm plug insertion aligns with the internal spring contacts, completing the audio circuit path for signal transmission.

2. The jack's SMT terminals are configured to transfer stereo (L/R) and ground signals from the plug to the printed circuit board.

3. Low contact resistance (50mΩ Max) and high dielectric strength (AC 500V) ensure a pure, interference-free audio signal.

Extech 407750 Sound Level Meter Headphone Jack's Product Functions

1. Provides a standard interface for connecting headphones, microphones, and auxiliary audio devices.

2. Enables high-fidelity stereo audio input or output for a wide variety of consumer and professional electronics.

3. Its SMT form factor is optimized for automated pick-and-place assembly, improving production efficiency.

4. A 3-30N operating force delivers a tactile and secure connection, preventing accidental disconnections.

3M Littmann CORE Digital Stethoscope Headphone Jack's Product Applications

1. Professional Audio: Used as the headphone cue output on a Pioneer DJ DDJ-200 Smart DJ Controller, providing a critical 3.5 jack connection for DJs to preview tracks before mixing them live.

2. Industrial Measurement: Serves as the AC/DC signal output jack on an Extech 407750 Sound Level Meter, allowing technicians to send the measured audio signal to an external analyzer or recorder for detailed analysis.

3. Medical Technology: Integrated into the 3M Littmann CORE Digital Stethoscope, enabling audio to be sent from the stethoscope to a mobile device for visualization, recording, and sharing with colleagues.
