3 5mm headphone jack

Focusrite Scarlett 2i2 Headphone Jack's Product Operating Principle

1. A standard 3.5mm audio plug is inserted, making a secure physical and electrical connection with the internal spring-loaded terminals.

2. Upon insertion, the jack completes the circuit, allowing audio signals to be transmitted from the device's PCB to the connected headphones.

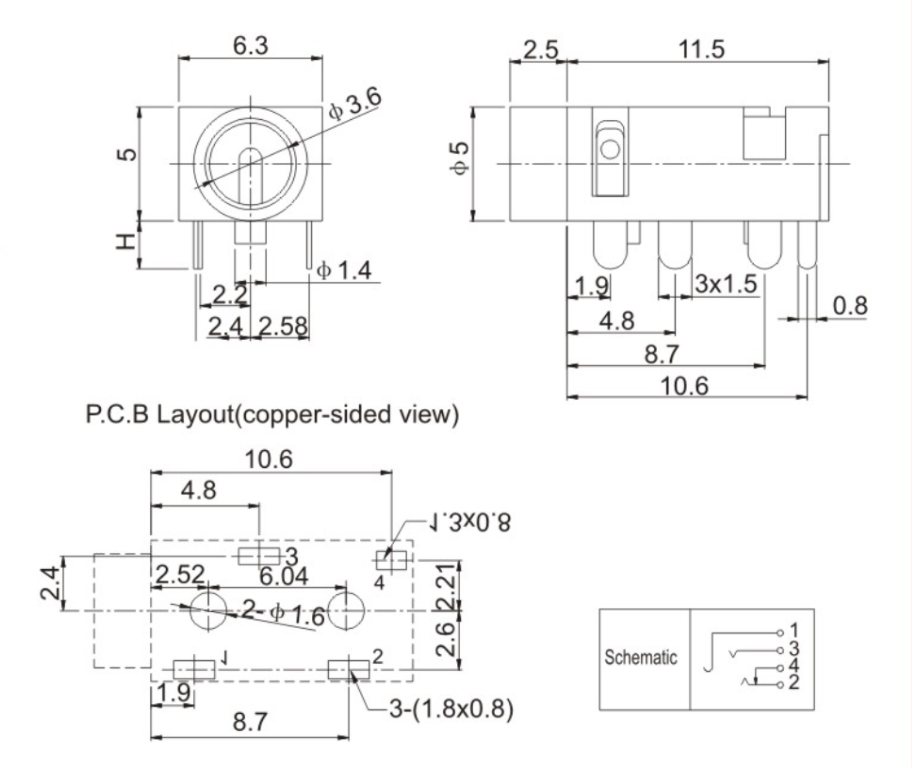

3. The DIP pins are designed for through-hole mounting onto a PCB, providing a stable and robust mechanical foundation for the component.

Sony PlayStation 5 DualSense controller Headphone Jack's Product Functions

1. Provides a universal interface for connecting standard 3.5mm audio plugs to electronic devices.

2. Enables high-fidelity audio signal output for personal listening through headphones or earphones.

3. Ensures stable and consistent audio connection over thousands of plug and unplug cycles.

4. Facilitates efficient manufacturing assembly through its reflow soldering compatible design.

Sangean DT-250 AM/FM radio Headphone Jack's Product Applications

1. Industrial Audio: Used in professional audio interfaces for headphone monitoring output, such as on the front panel of a Focusrite Scarlett 2i2.

2. Consumer Electronics: Serves as the standard 3 5mm headphone jack in gaming controllers for chat and game audio, as seen in the Sony PlayStation 5 DualSense controller.

3. Domestic Appliances: Integrated into portable digital radios and media players for private listening, like in the audio output port of a Sangean DT-250 AM/FM radio.
