Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001

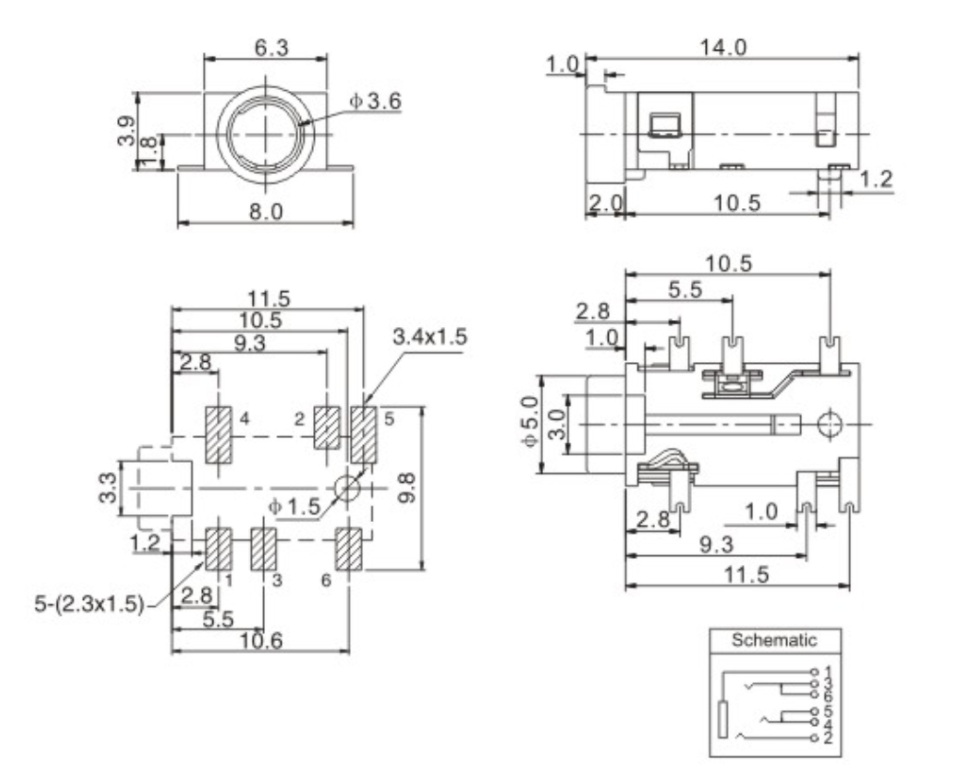

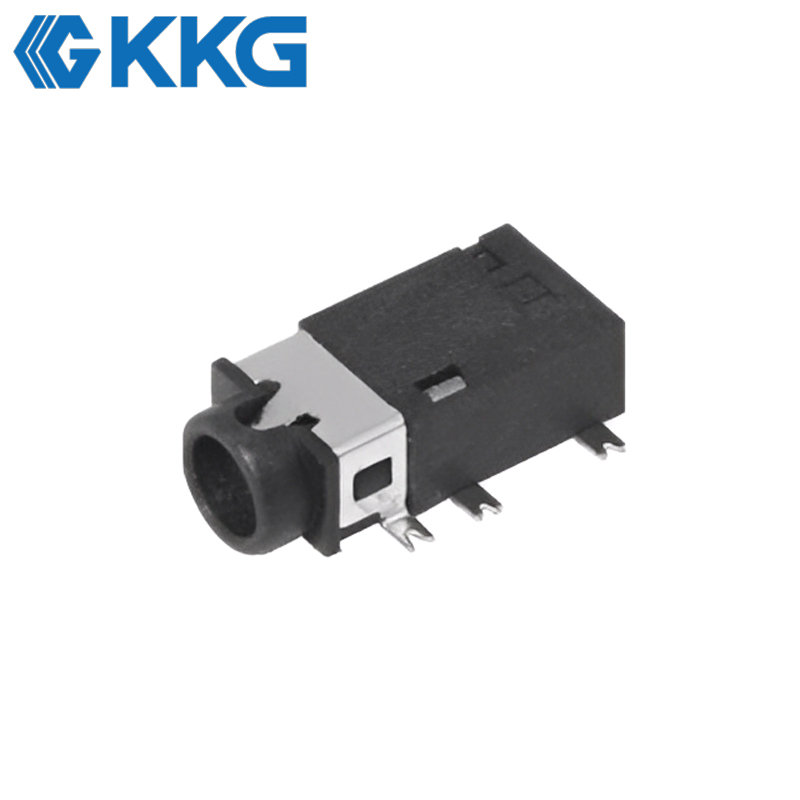

Model Number: PJ-342
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
Zoom H1n Handy Recorder Headphone Jack's Product Operating Principle
4-Pole Connection: The Tip-Ring-Ring-Sleeve (TRRS) design provides four contact points for left audio, right audio, microphone, and ground signals.
Combined Signal Path: It enables simultaneous two-way audio traffic, allowing a single port to support stereo headphones and a microphone.
Secure Contact: Upon insertion, the internal contacts establish a firm and reliable connection, ensuring clear, interference-free communication.
Masimo Rad-97 Pulse CO-Oximeter Headphone Jack's Product Functions
Audio & Mic Combo: Integrates stereo audio output and microphone input into a single, space-saving connector.
Slim Profile Design: The low 3.90mm height makes it ideal for thin and lightweight devices like smartphones and tablets.
Automated Assembly: Designed for reflow soldering, this SMT jack streamlines the manufacturing process for high-volume production.
High-Fidelity Audio: Ensures excellent signal integrity with a low contact resistance of 50mΩ (max) for crisp sound.
Sony PlayStation 5 DualSense Controller Headphone Jack's Product Applications
Industrial: Utilized in the Zoom H1n Handy Recorder, allowing for the connection of external microphones and headphones through a single TRRS port.
Medical: Integrated into the Masimo Rad-97 Pulse CO-Oximeter, providing audio output for alarms and enabling potential future communication features.
Domestic (Consumer Electronics): Serves as the primary headset port on the Sony PlayStation 5 DualSense Controller for immersive 3.5 mm audio and voice chat during gameplay.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
We ensure high production efficiency and ship your order within 7 days after payment.
Q1: What is your typical production lead time?
A: For most standard orders, our production lead time is approximately 2 to 3 weeks. This can vary based on order volume, component complexity, and current capacity. We will always provide a confirmed delivery timeline with your order.
Q2: What is your policy on small volume orders?
A: We support projects of all scales, from startups to large-scale production. While we can accommodate smaller orders (e.g., 1,000-2,000 pcs), please note that larger volumes typically provide greater cost efficiency in terms of unit price and shipping charges.
Q3: Do you offer custom design and tooling services?
A: Yes, custom engineering is a core strength at KKG Electronics. Our R&D team is fully equipped to develop new tooling for unique components or execute application-specific modifications to our existing product lines. Let's discuss your design goals.
Q4: What file formats are needed for a technical quotation?
A: To ensure accuracy, please provide the following files:
For PCB Quotations: Gerber files and a document detailing all technical requirements.
For PCBA Quotations: Gerber files, a complete Bill of Materials (BOM), and any specific function test procedures.
For Custom Components: CAD files or AI format artwork are preferred.
Q5: What are your accepted payment terms?
A: Our payment terms are designed for flexibility. We accept T/T (Telegraphic/Bank Transfer) for bulk production orders. For sample requests and smaller volume orders, payment via PayPal is available for your convenience.
