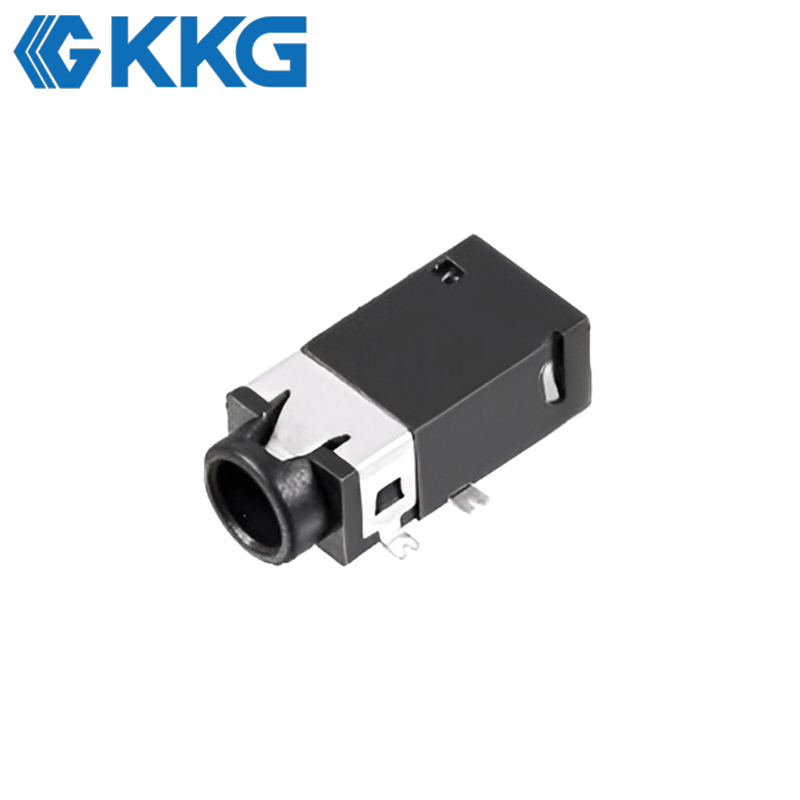

PJ-342B: High-Quality 6P 3.5mm Stereo SMT Audio Jack

Extech AN200 Anemometer Headphone Jack's Product Operating Principle

1. 3-Pole Stereo Connection: The Tip-Ring-Sleeve (TRS) configuration provides three contact points to transmit left and right stereo audio channels, plus a common ground.

2. Secure Mating: When a plug is inserted, the jack's internal contacts establish a firm and stable connection, ensuring uninterrupted signal flow.

3. Efficient Signal Path: It provides a direct, low-resistance path from the PCB to an external audio device for high-quality sound reproduction.

Contec PM10 Portable ECG Monitor Headphone Jack's Product Functions

1. High-Fidelity Stereo Audio: Delivers clean, two-channel stereo sound for an immersive listening experience.

2. Streamlined Manufacturing: The SMT design is fully compatible with automated reflow soldering for efficient production.

3. Durable Performance: Built to withstand 5,000 insertion and removal cycles, guaranteeing a long operational life.

4. Compact Footprint: The low-profile and horizontal design make it ideal for thin and lightweight electronic devices

Pioneer DDJ-200 Headphone Jack's Product Applications

1. Industrial: Utilized in the Extech AN200 Anemometer, allowing technicians to hear audible airflow alerts via headphones in noisy environments.

2. Medical: Integrated into the Contec PM10 Portable ECG Monitor, enabling private audio feedback or data transmission to compatible devices.

3. Domestic (Consumer Electronics): Serves as the primary headphone output on the Pioneer DDJ-200 DJ controller, providing a clear 3.5 mm audio signal for music mixing.
