Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: PJ-343B
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 0.5A 30V |
| Actuating force | 3~30N |

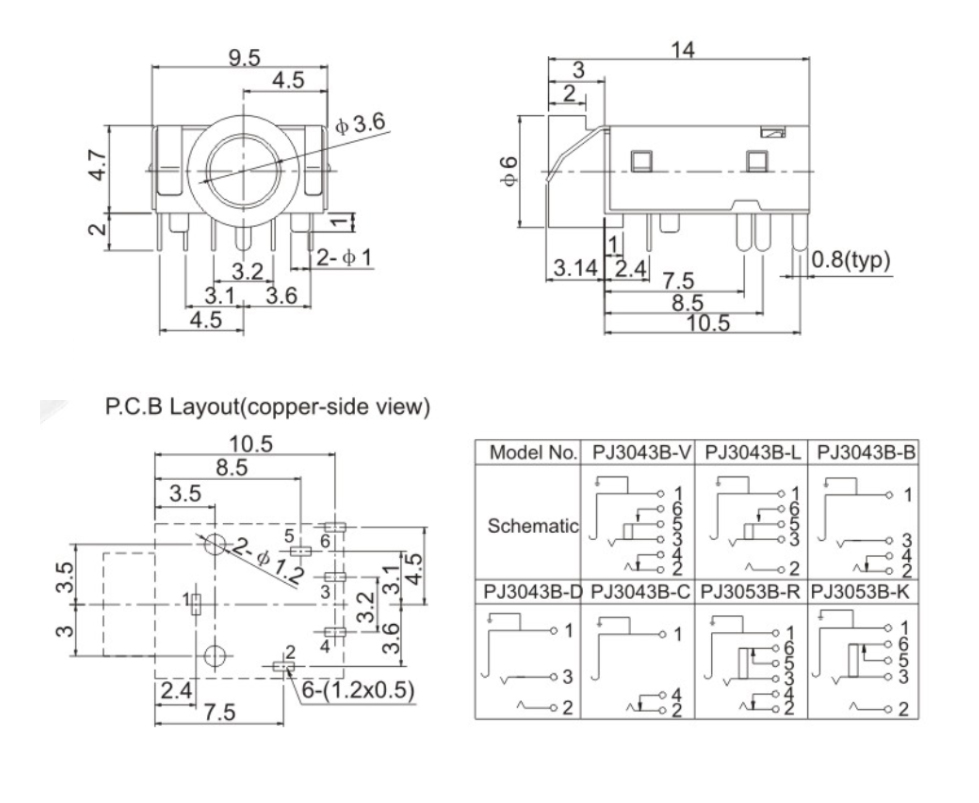

| Dimension | 14.00mm*9.50mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 50mΩ Max |
JBL Flip 6 Headphone Jack's Product Operating Principle
An inserted 3.5mm plug makes contact with internal terminals, completing the circuit for clean audio signal transfer.
Its DIP terminals are mounted through-hole onto a circuit board, providing a robust anchor and a direct electronic pathway.
The 3-30N operating force ensures a firm connection, giving clear user feedback while preventing accidental disconnection.
Zebra TC52 Rugged Handheld Computer Headphone Jack's Product Functions
Creates a standard 3.5mm audio interface for connecting headphones, microphones, or auxiliary devices.
Preserves signal integrity with low contact resistance (50mΩ max) and high insulation (100MΩ min).
Provides excellent mechanical strength on the PCB thanks to its robust through-hole mounting design.
Functions reliably in extreme temperatures, making it ideal for industrial or outdoor equipment.
Philips IntelliVue MX40 Headphone Jack's Product Applications
Consumer Electronics: Used as the auxiliary audio input port on the JBL Flip 6 portable Bluetooth speaker, allowing for wired audio sources.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
We ensure high production efficiency and ship your order within 7 days after payment.
Q1:Are you a factory or trade company?
A:We are factory with more than 15 years of experience specialized in producing switches, sockets, connetors, DC Jacks, etc.
Q2:Why should we choose your company?
A:1.Porfessional manufacture with more than 15 years experience in producing various of switches.
2.Good quality, competitive price and fast delivery time.
3.OEM/ ODM Service provided to clients.
4.The best after-sale service.
Q3: How can we get the samples and best quotation?
A:We need to know more details about the products you inquired.
For example, what are the functions you need? The specification of it and which finished products will be used with it?
It is better to provide AI fromat artwork to us so we could provide best quotation to you asap.
We could provide the free samples to you.
Q4.How about the delivery time?
A: Gernally speaking it is needed 2 weeks if your quantity below 10K pcs, and it depends on the quantity.
Q5:How do you package the goods?
A: We will package the swtiches in reels or in anti static bag with covering air bubble films. Besides, they will be putting into a inner box and then into a outer carton.
