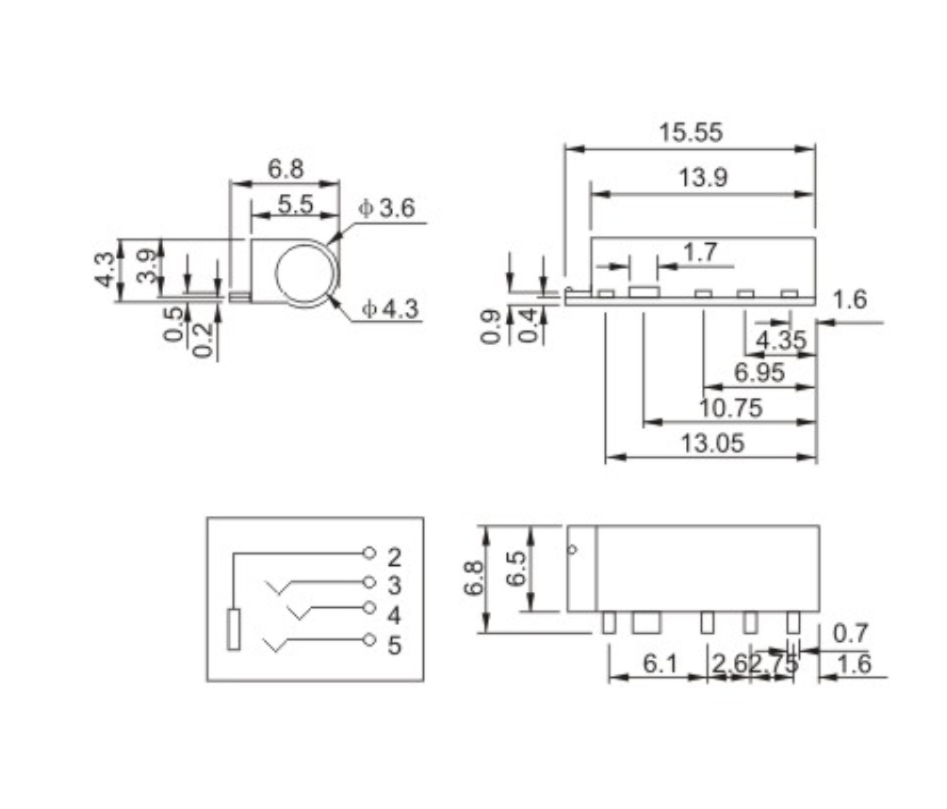

3.5mm Horizontal SMT Audio Phone Jack - PJ-3618

Rigol DS1054Z Digital Oscilloscope Headphone Jack's Product Operating Principle

1. Upon insertion of a 3.5mm plug, the jack’s internal spring mechanism makes secure contact with the plug's Tip, Ring, and Sleeve.

2. Audio signals are routed cleanly from the PCB through the jack to provide distinct left and right channel stereo audio output.

3. The surface-mount design ensures excellent mechanical stability and a reliable electrical connection after reflow soldering.

Casio Casiotone CT-S200 Headphone Jack's Product Functions

1. Stereo Audio Transmission: Provides a standard interface for clear, reliable two-channel (left and right) audio output.

2. SMT PCB Integration: Engineered for efficient surface-mount manufacturing, enabling precise and automated assembly.

3. High Durability: Built to withstand a minimum of 5,000 insertion/extraction cycles, ensuring a long operational life.

4. Compact Footprint: Its small dimensions make it the perfect audio solution for portable and high-density electronic designs.

Clear-Com RS-701 Headphone Jack's Product Applications

1. Industrial Handhelds: Serves as the primary audio output for operator alerts and headset communication on the Datalogic Skorpio X5 mobile computer.

2. Medical Diagnostics: Integrated as a headphone port for audio signal monitoring in diagnostic equipment like the Edan SE-3 Series Compact ECG.

3. Professional Audio: Used as the main headphone monitoring output on the Universal Audio Volt 2 USB audio interface, providing artists with clear sound.
