Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001

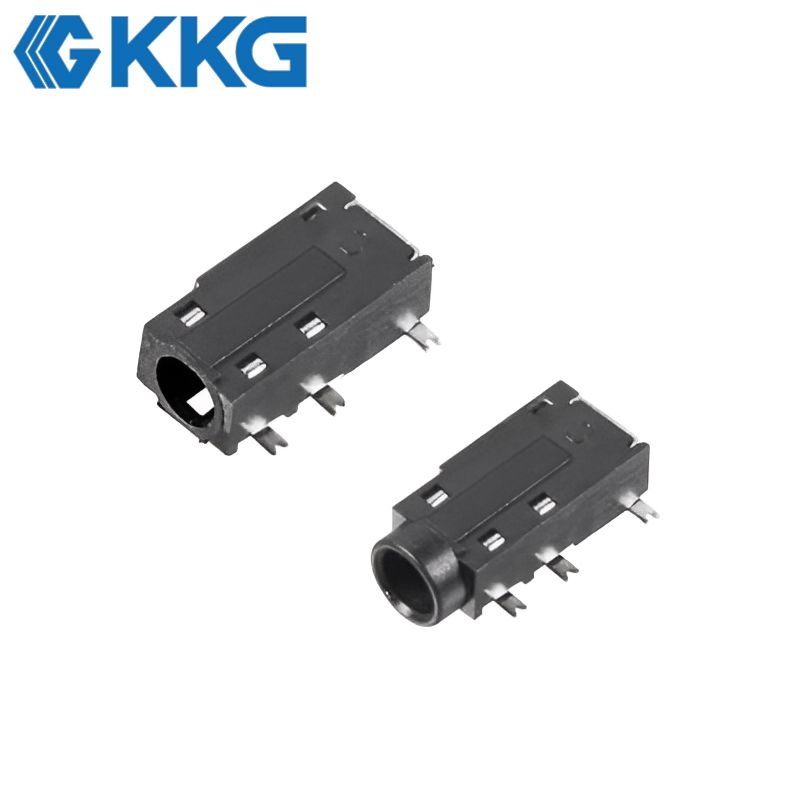

Model Number: PJ-381B-5P
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
https://mao.ecer.com/test/illuminatedtactswitch.com
| Characteristics | Specification |
|---|---|
| Rating | 0.5A 30V |
| Actuating force | 3~30N |

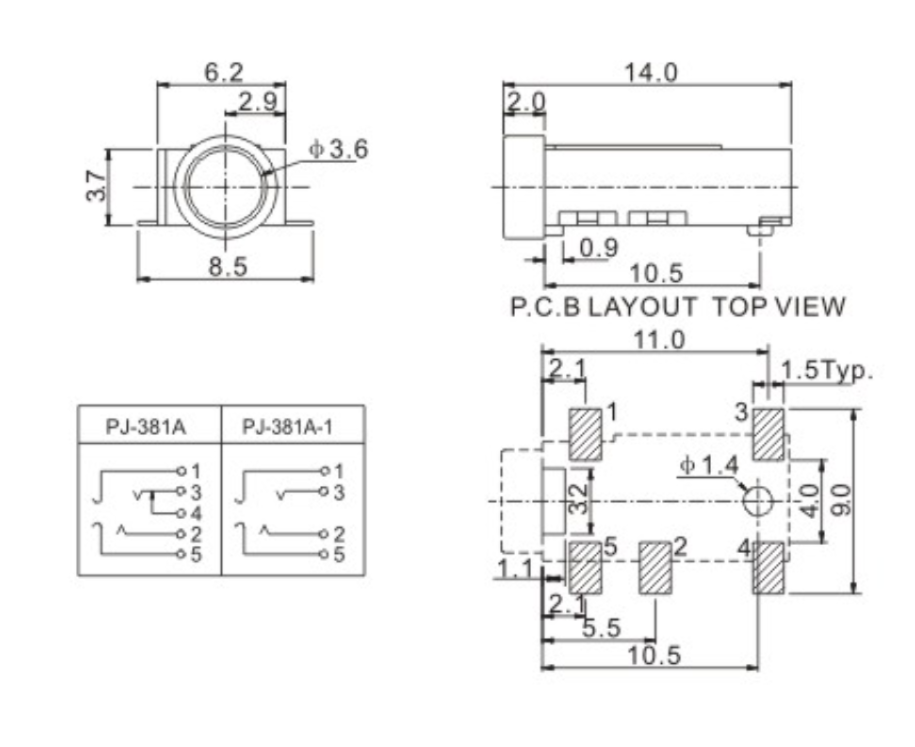

| Dimension | 14.00mm*6.20mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 50mΩ Max |
Motorola MC9300 Headphone Jack's Product Operating Principle
Stable Connection: The jack's 5-pin configuration ensures a secure and multi-functional connection for stereo audio and additional signals when a plug is inserted.
Signal Integrity: Engineered for superior signal transmission, the jack maintains a low contact resistance of 50mΩ (max) for clear, uninterrupted audio.
Automated Assembly: The SMT design is fully compatible with modern reflow soldering processes, enabling efficient and precise manufacturing.
Nonin 7500 Headphone Jack's Product Functions
Versatile Connectivity: Provides a standard 3.5mm audio interface for a wide array of devices, from mobile phones to portable media players.
Low-Profile Design: The ultra-slim 3.70mm height is ideal for today's thin and compact electronic gadgets.
High Durability: With a robust operating force of 3~30N, it is built to withstand repeated use in demanding applications.
Excellent Insulation: Offers a high dielectric strength of AC 500V to protect against electrical shorts and ensure device safety
Roland SP-404MKII Headphone Jack's Product Applications
Industrial: Employed in the Motorola MC9300 mobile computer, providing a reliable audio port for voice-directed picking applications in rugged warehouse environments.
Medical: Integrated into the Nonin 7500 tabletop pulse oximeter for audible alarm outputs and data transfer to monitoring systems.
Domestic (Consumer Electronics): Serves as the headphone output on the Roland SP-404MKII creative sampler, offering a high-quality 3.5 mm audio connection for music producers and performers.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
We ensure high production efficiency and ship your order within 7 days after payment.
Q1:Are you a factory or trade company?
A:We are factory with more than 15 years of experience specialized in producing switches, sockets, connetors, DC Jacks, etc.
Q2: What is the turnaround time for rapid prototyping of modified designs?
A: Prototypes are delivered in 7-10 working days post-design approval. Submit CAD files and specifications to activate priority engineering review.
Q3: How do you ensure long-term product availability for legacy systems?
A: We guarantee 15-year lifecycle support with EOL (End-of-Life) notifications 24 months in advance and bridge manufacturing options.
Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.
Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
