Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001

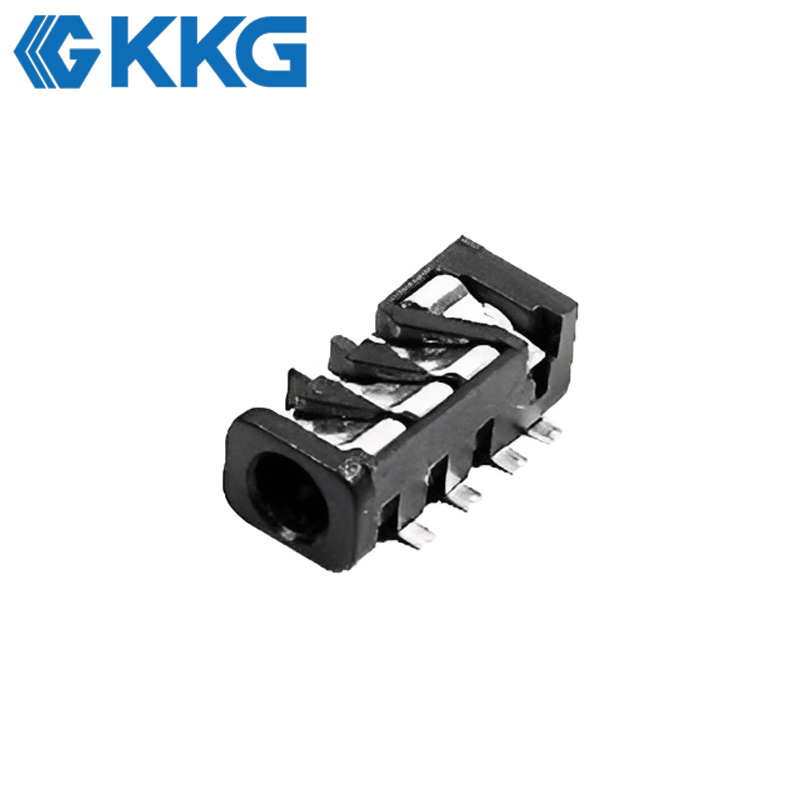

Model Number: PJ-393B
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:

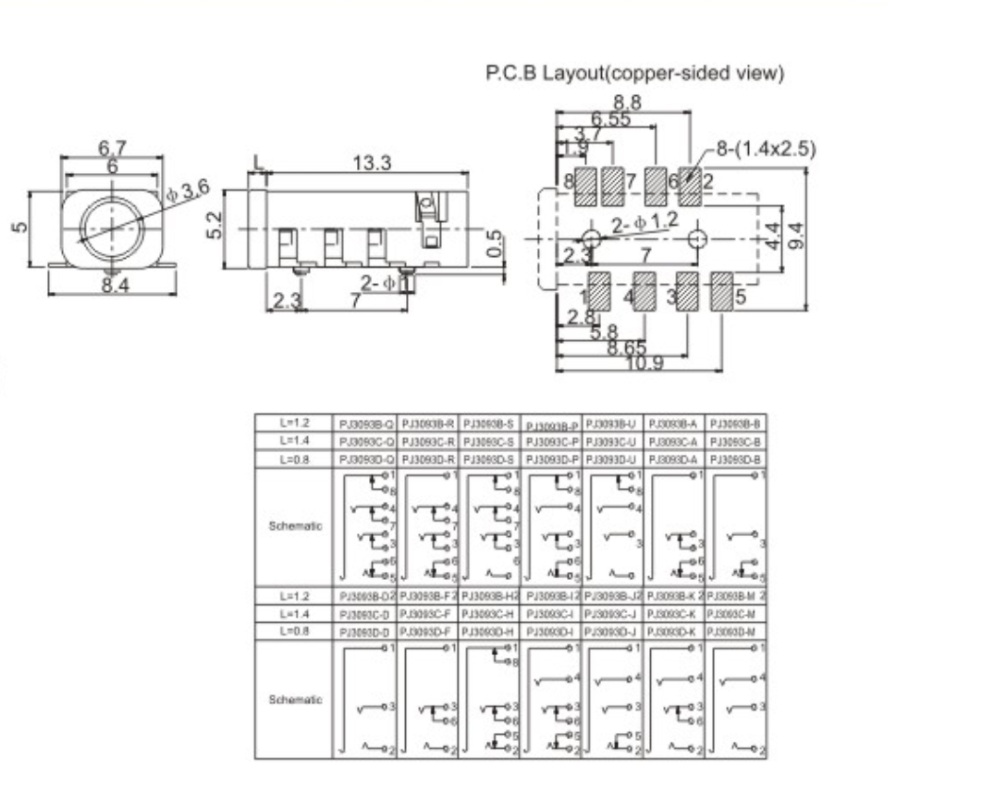

| Characteristics | Specification |
|---|---|
| Rating | 0.5A 30V |
| Actuating force | 3~30N |
| Dimension | 14.50mm*6.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 50mΩ Max |
National Instruments NI-9219 Headphone Jack's Product Operating Principle
Secure Connection: When a 3.5mm plug is inserted, internal spring contacts firmly grip the plug, establishing a stable electrical connection.
Signal Transmission: The jack transmits analog audio signals between the connected device and the external audio equipment, such as headphones or speakers.
Durable Design: With an operating force of 3~30N, it provides a tactile and robust connection designed for repeated use.
GE Healthcare CARESCAPE ONE Headphone Jack's Product Functions
Versatile Audio Output: Provides a standard audio output for a wide range of electronic devices.
Space-Saving Design: The horizontal SMT design is ideal for compact and slim devices where space is limited.
High-Fidelity Signal: Ensures a clean and reliable audio signal transmission with a contact resistance of 50mΩ Max.
Durable Performance: Built to withstand thousands of plug-in and removal cycles, guaranteeing a long product life
Novation Bass Station II Headphone Jack's Product Applications
Industrial: Utilized in the National Instruments NI-9219 data acquisition module for sensor and signal connections in industrial monitoring systems.
Medical: Integrated into the GE Healthcare CARESCAPE ONE patient monitoring system for connecting various sensors and peripherals.
Domestic (Consumer Electronics): A key component in the Novation Bass Station II analog synthesizer, providing a reliable 3.5 mm audio output for musicians and producers.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
We ensure high production efficiency and ship your order within 7 days after payment.
Q1:Are you a factory or trade company?
A:We are factory with more than 15 years of experience specialized in producing switches, sockets, connetors, DC Jacks, etc.
Q2: What is the turnaround time for rapid prototyping of modified designs?
A: Prototypes are delivered in 7-10 working days post-design approval. Submit CAD files and specifications to activate priority engineering review.
Q3: How do you ensure long-term product availability for legacy systems?
A: We guarantee 15-year lifecycle support with EOL (End-of-Life) notifications 24 months in advance and bridge manufacturing options.
Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.
Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
