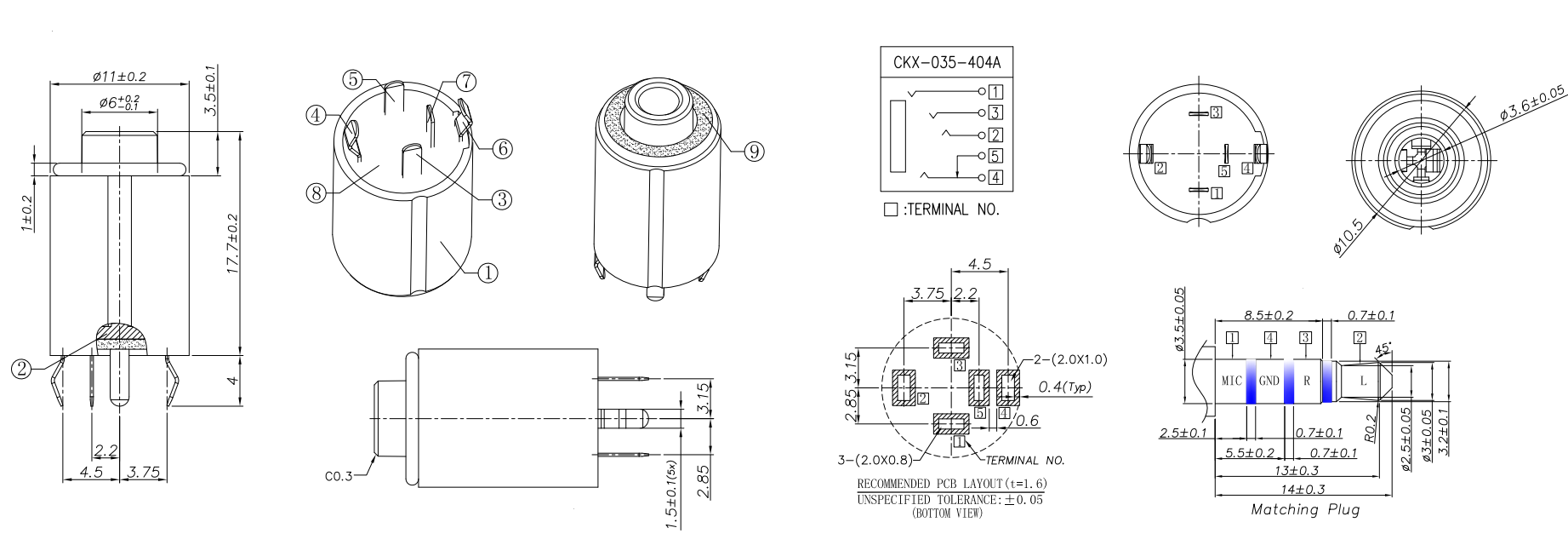

5P Waterproof 3.5mm DIP Audio Jack – PJ-9404

Sonos Roam portable speaker Headphone Jack's Product Operating Principle

1. Waterproof Seal: The jack features a waterproof seal that protects internal components from moisture, dust, and debris, ensuring reliable operation in demanding environments.

2. Stable Connection: The through-hole (DIP) pins provide a strong, secure solder connection to the PCB, resisting mechanical stress and vibration.

3. Signal Integrity: It routes stereo audio signals with a low contact resistance of 50mΩ (Max), preserving audio quality even in challenging conditions.

Standard Horizon HX890NB Handheld VHF Radio Headphone Jack's Product Functions

1. Environmental Protection: Offers a sealed 3.5mm audio interface, safeguarding sensitive electronics from water and dust ingress.

2. Secure Mounting: The DIP design provides excellent mechanical strength, making it ideal for devices subject to physical stress or vibration.

3. Stereo Audio Output: Delivers a standard 3.5mm connection for stereo headphones, auxiliary inputs, and other audio peripherals.

4. Long-Term Durability: Engineered for a minimum of 5,000 insertion/removal cycles, guaranteeing a long and reliable service life.




ZOLL X Series Monitor/Defibrillator Headphone Jack's Product Applications

1. Domestic Outdoor: Integrated into the Sonos Roam portable speaker, providing a waterproof charging and data port that maintains the device's weather-resistant rating.

2. Industrial Marine: Used in the Standard Horizon HX890NB Handheld VHF Radio, offering a sealed port jack 3.5 mm for connecting external microphones or headsets in marine environments.

3. Medical Field Use: Serves as the primary audio output on the ZOLL X Series Monitor/Defibrillator, ensuring this critical 3.5 mm headphone socket remains functional during emergency use in unpredictable weather conditions.
