PJ-3216 3.5 mm headphone port
  • PJ-3216 3.5 mm headphone port

PJ-3216 3.5 mm headphone port

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: PJ-3216


Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union


More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com

  • Product Details

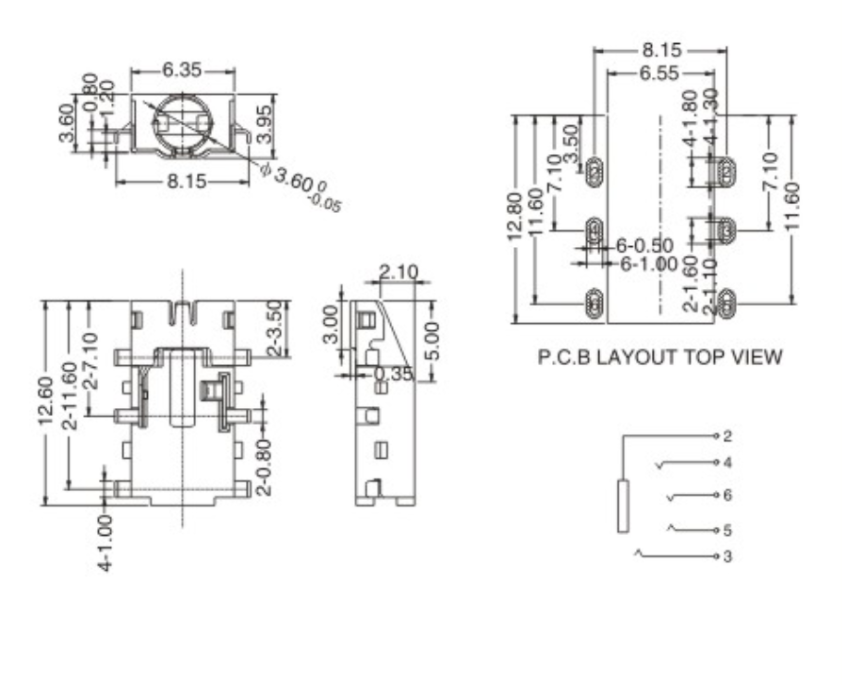

  • Dimension
  • Temperature Profile
  • Packaging Efficiency
  • FAQ
CharacteristicsSpecification
Rating0.5A 30V
Actuating force3~30N
Dimension12.60mm*6.35mm
Operating life5,000 cycles
Dielectric StrengthAC500V
Contact Resistance
50mΩ Max


Motorola LEX L11 Mission Critical LTE Device Headphone Jack's Product Operating Principle



  1. An inserted 3.5mm plug makes direct contact with the jack's internal spring terminals, creating a secure electromechanical connection.

  2. This establishes dedicated electrical paths for stereo audio (left/right channels) and a common ground reference for the audio signal.

  3. The completed circuit enables the clean, low-noise transmission of analog audio from the device's PCB to the connected output device


Nonin Avant 9600 Tabletop Pulse Oximeter Headphone Jack's Product Functions



  1. Provides a universal port for connecting standard 3.5mm headphones, microphones, and auxiliary audio cables.

  2. Facilitates streamlined manufacturing through its surface-mount (SMT) design, ideal for automated PCB assembly.

  3. Guarantees long-term reliability in high-use applications with a robust design rated for 5,000 insertion cycles.

  4. Maintains excellent audio signal integrity by ensuring a stable, low-resistance connection for clear sound


Roland A-01 Controller + Generator Headphone Jack's Product Applications



  1. Industrial: Integrated as the headset communication port on the Motorola LEX L11 Mission Critical LTE Device, allowing field workers clear audio.

  2. Medical: Used as the audio output on the Nonin Avant 9600 Tabletop Pulse Oximeter, enabling audible alarm notifications via headphones in a clinical setting.

  3. Professional Audio: Serves as the main headphone output 3.5 millimeter jack on the Roland A-01 Controller + Generator, for monitoring synth sounds and sequences.

PJ-3216

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature

We ensure high production efficiency and ship your order within 7 days after payment.

Packaging

Q1: May I have free samples?
A: Sure, but we need to confirm the product details before shipment. Besides, it is better to provide the AI format artwork to us.



Q2: When can I get the quotation?
A: We will send you quotation within 24 hours after providing product details.



Q3: How long will the samples take to my place?
A: It depends on the express solution you choose, normally it will take 3-5 working days for the fastest way in hihgest price. And commonly in 5-8 days for the cost-effective way.



Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.



Q5. What about the shipping cost?

A: Depending upon the quantity, shipping method and destination, we will check for you soon if you provide the information to us.
