PJ-3217 3.5 millimeter jack
  • PJ-3217 3.5 millimeter jack

PJ-3217 3.5 millimeter jack

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: PJ-3217


Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union


More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com

  • Product Details

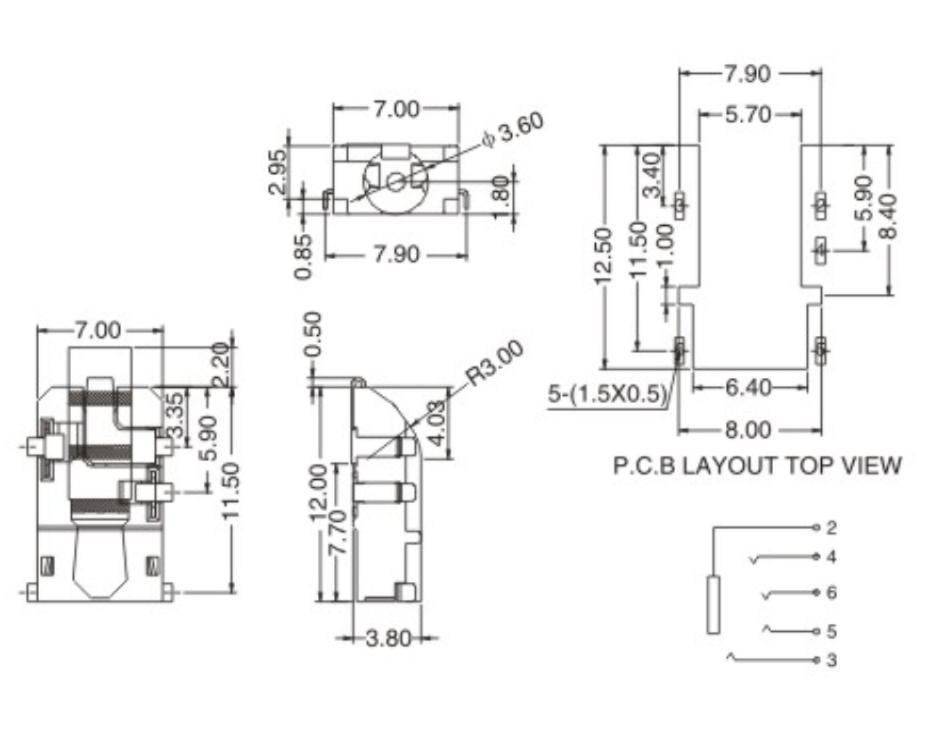

  • Dimension
  • Temperature Profile
  • Packaging Efficiency
  • FAQ
CharacteristicsSpecification
Rating0.5A 30V
Actuating force3~30N
Dimension11.50mm*7.00mm
Operating life5,000 cycles
Dielectric StrengthAC500V
Contact Resistance
50mΩ Max


TASCAM Portacapture X8 Headphone Jack's Product Operating Principle



  1. When a 3.5mm audio plug is inserted, its contacts (tip, ring, sleeve) align with and make a secure connection to the internal spring terminals of the jack.

  2. This physical contact establishes distinct electrical pathways, completing the circuit for left audio, right audio, and ground signals.

  3. The connection allows for the stable, low-resistance transfer of analog audio signals from the device's PCB to the connected headphones or cable.


iFi hip-dac 2 Headphone Jack's Product Functions



  1. Provides a standard interface for outputting stereo audio signals to headphones, speakers, or other external audio equipment.

  2. Enables reliable, removable audio connectivity for a wide range of portable and stationary electronic devices.

  3. Designed for surface-mount technology (SMT), allowing for efficient and precise automated assembly onto circuit boards.

  4. Ensures long-term performance and reliability with a high electrical life of 5,000 insertion and removal cycles.


Rigol MSO5074 Headphone Jack's Product Applications



  1. Professional Audio: Used as the headphone monitoring output on the TASCAM Portacapture X8 audio recorder, allowing sound engineers to accurately monitor live recordings.

  2. Consumer Electronics: Serves as the primary headphone output on the iFi hip-dac 2 portable DAC/amplifier, delivering high-resolution audio to listeners on the go.

  3. Test & Measurement: Integrated as the auxiliary audio input/output 3.5 millimeter jack on the Rigol MSO5074 oscilloscope for audio-frequency signal injection or analysis.

PJ-3217

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature

We ensure high production efficiency and ship your order within 7 days after payment.

Packaging

Q1. What's your lead time?

A: Gernally speaking it is needed 2 weeks if your quantity below 10K pcs, and it depends on the quantity.



Q2. Are you a factory or trading company?

A: We are the leading manufacturer of electronics. Why not conatct us now to discover original factory prices!



Q3. How can you ensure the quality?

A:  All our products are 100% tested before delivery. Durable quality is guaranteed.



Q4. Can you provide samples?

A: Yes, we offer free samples and you only need to bear express charge.



Q5. What is the shipping cost?

A: Depending upon the quantity and the destination, we will check for you if you provide the information to us.
