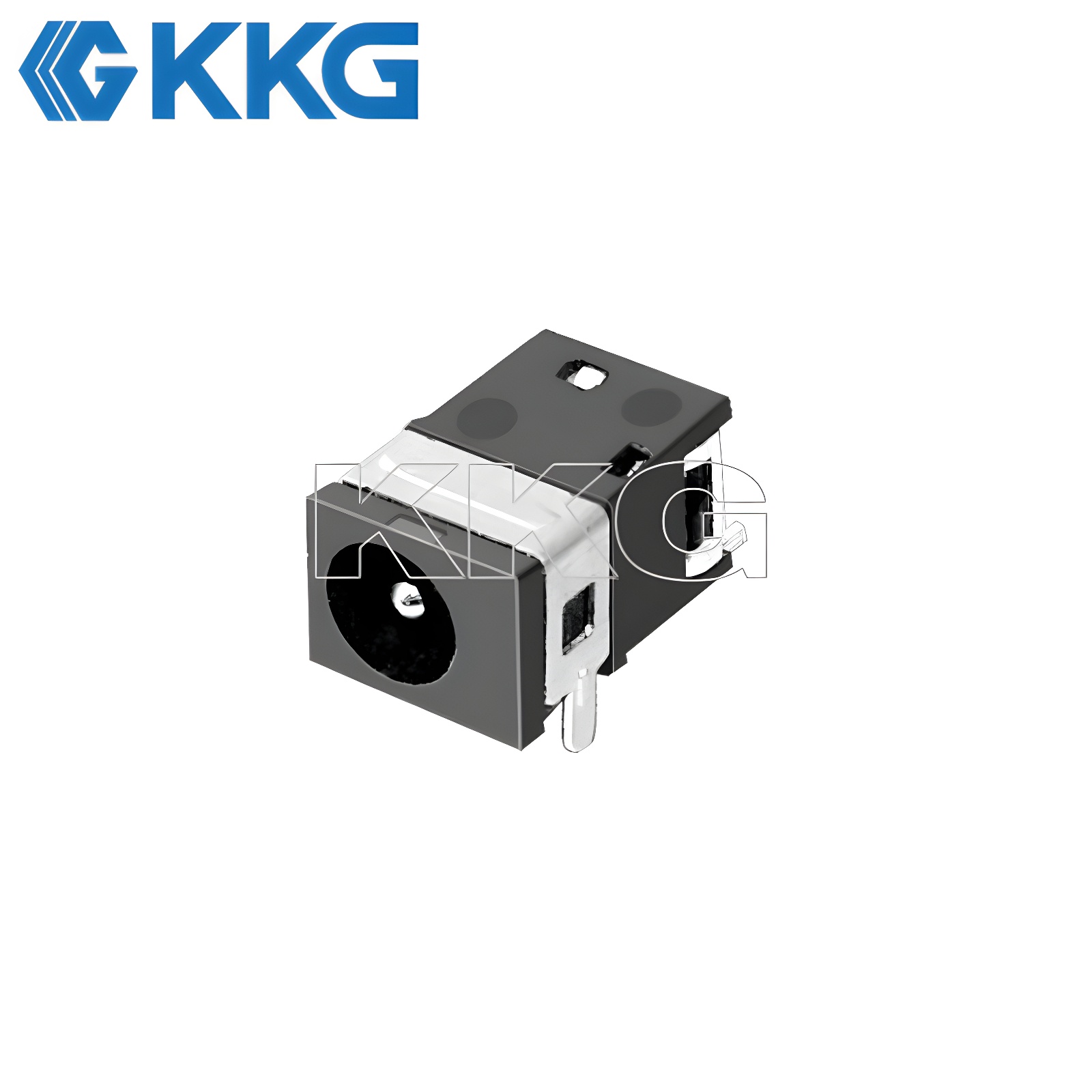

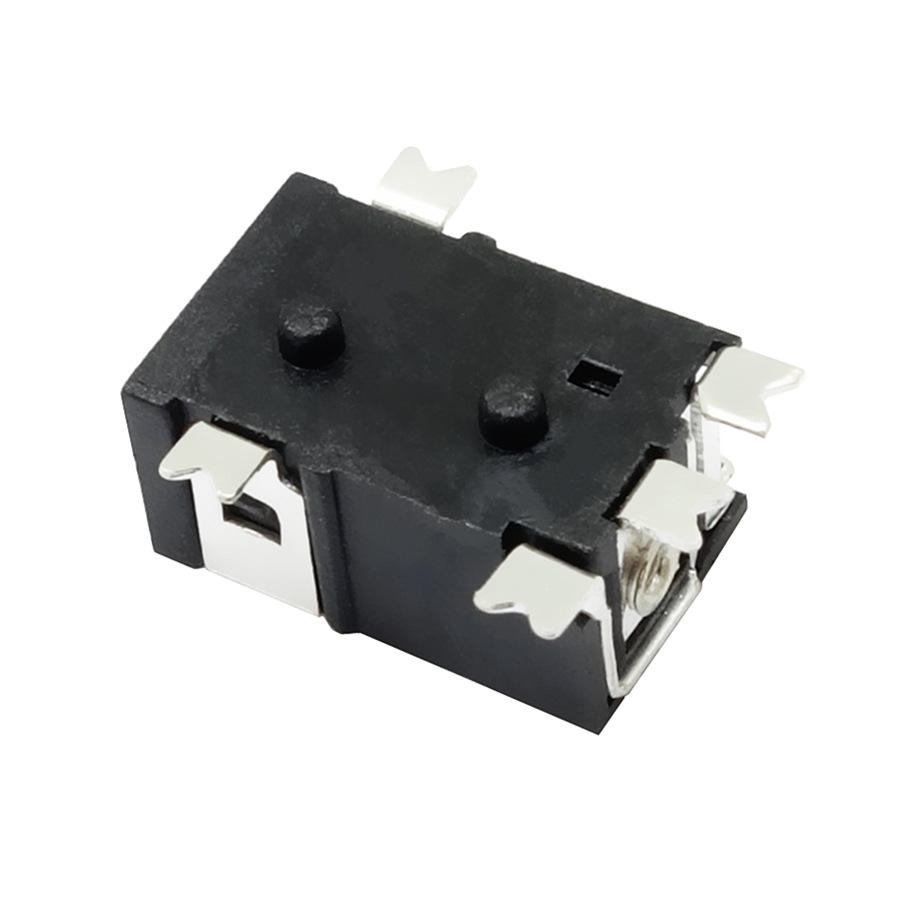

DC045B DC Power Jack

Dexcom G7 Glucose Monitor-style Charging Interface DC Power Jack's Product Operating Principle

--Tri-Directional Contact System – Spring-loaded blades compress from three axes for secure plug retention

--Automated Alignment Channel – ±0.03mm tolerance keyway ensures precise plug insertion during SMT assembly

--Thermal-Stable Housing – Flame-retardant PBT base withstands reflow soldering at 250°C

Hikvision DS-7600-series NVRs DC Power Jack's Product Functions

--Space-Efficient Footprint – 45% smaller than standard DC jacks for next-gen wearables and IoT nodes

--Energy-Optimized Transmission – <30mΩ contact impedance reduces power loss by 40% vs. industry average

--Industrial-Grade Cycle Endurance – 5,000+ insertion cycles validated under 12G vibration (ISO 16750-3)

--Cost-Effective Integration – 25% faster PCB assembly vs. through-hole alternatives

Fitbit Sense-style Ultra-thin Device DC Power Jack's Product Applications

Portable Medical Sensors

Example: Dexcom G7 Glucose Monitor-style charging interfaces with miniaturized footprints

Smart Security Controllers

Example: Hikvision DS-7600-series NVRs requiring dust-immune power ports

Wearable Fitness Trackers

Example: Fitbit Sense-style ultra-thin devices with concealed SMT power solutions
