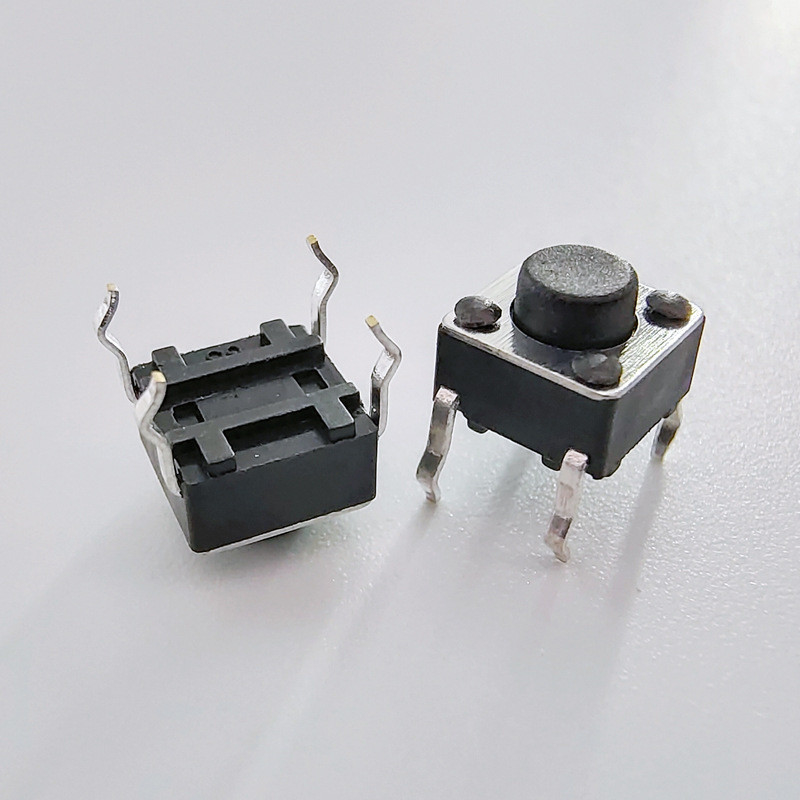

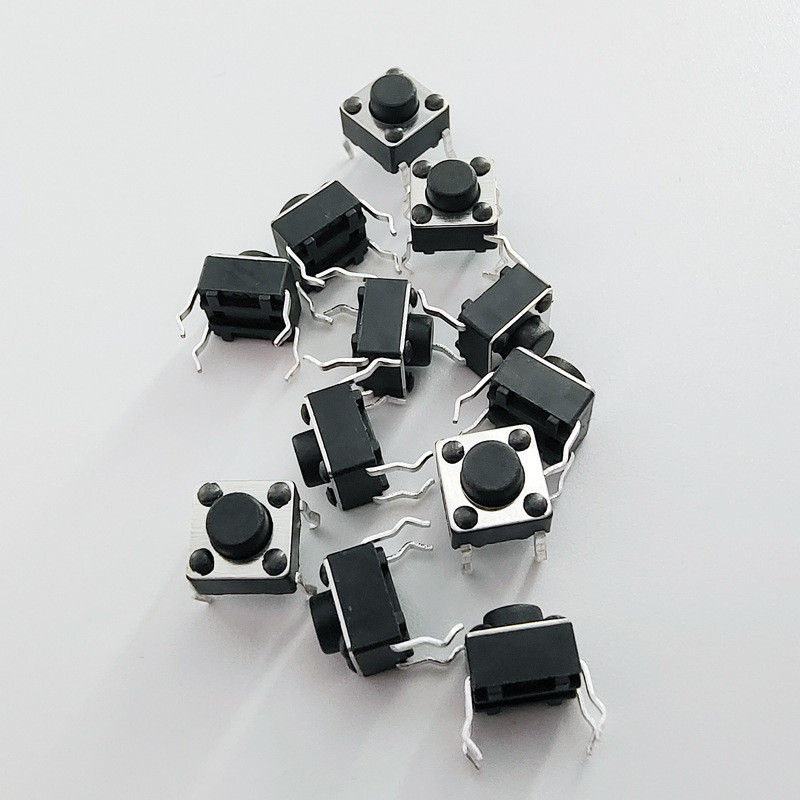

6*6 Light Touch Switches' Advantages
Crisp clicking by tactile feedback
Prevent flux rise by insert-molded terminal
Ground terminal is attached
Snap-in mount terminal

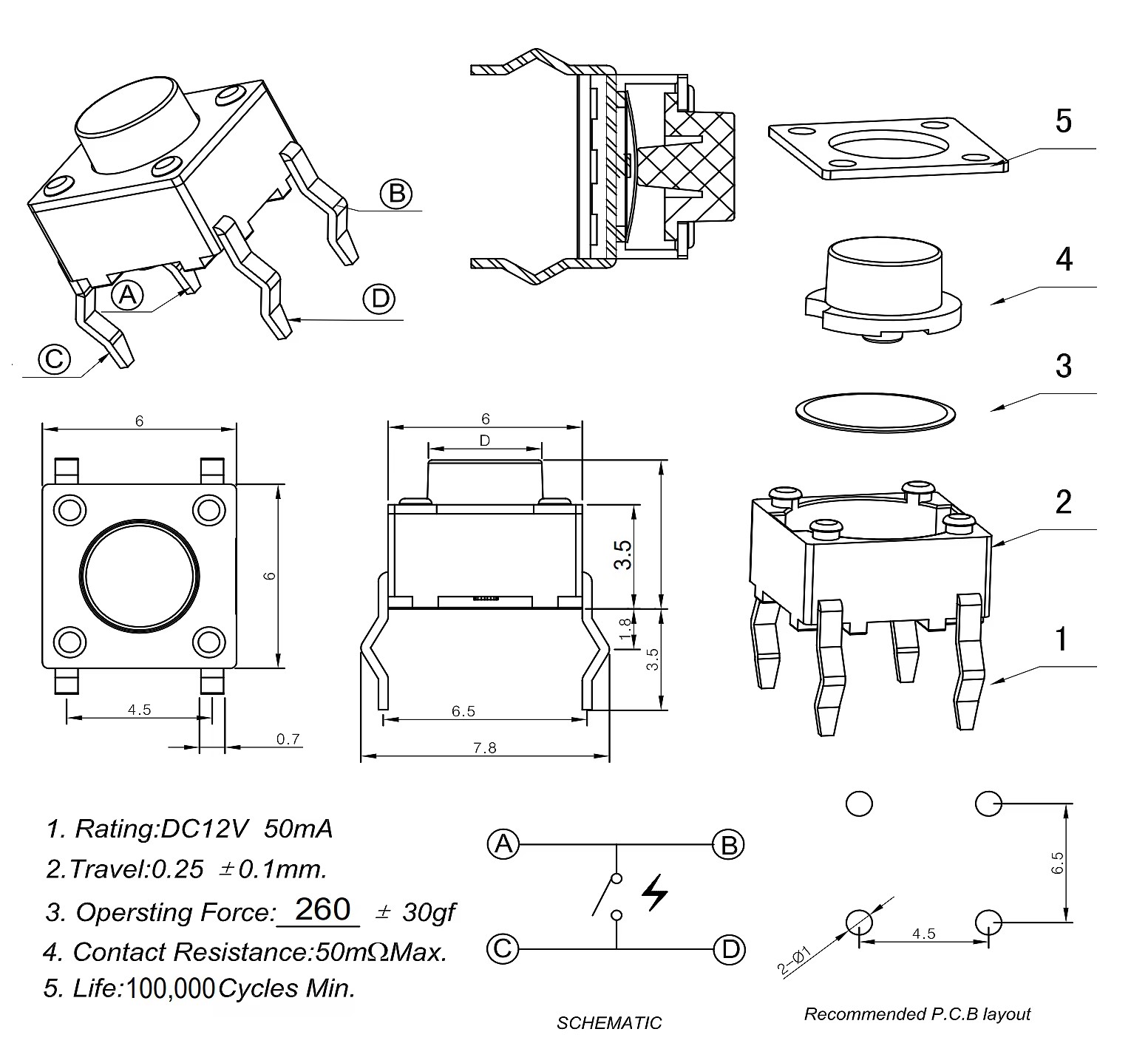

6*6 DIP Tap Switches' Parameter
Contact Resistance： | ≤50mΩ |
Operating Force： | 250\160±40gf |
Insulation Resistance： | ≥100MΩ |
Travel： | 0.25±0.1mm |
Life： | 100,000 Cycles |
Voltage Rating： | DC12V |
Current Rating: | 0.5A |
Size: | 6*6mm |
6*6 Tact Switches' Functional Characteristics
The use of touch switch products has the following advantages:
1. Mute operation: The operation sound of the flick switch is small and does not produce noise
2. High sensitivity: With a small force, you can run the switch, press 10000 times without feeling tired
3. Waterproof and dustproof: the sealing is very good, even if there is a blister will not fail, which in turn makes the service life of the product significantly increased.
4. Good environmental performance, long life
6*6 Tactile Switches' Application
Haptic switches have a wide range of applications and are almost always needed no matter where the point is. Including home appliances (such as TV, air conditioning, washing machines, etc.), medical equipment, automotive electronics, industrial automation, office equipment and other fields.
Our product areas are as follows

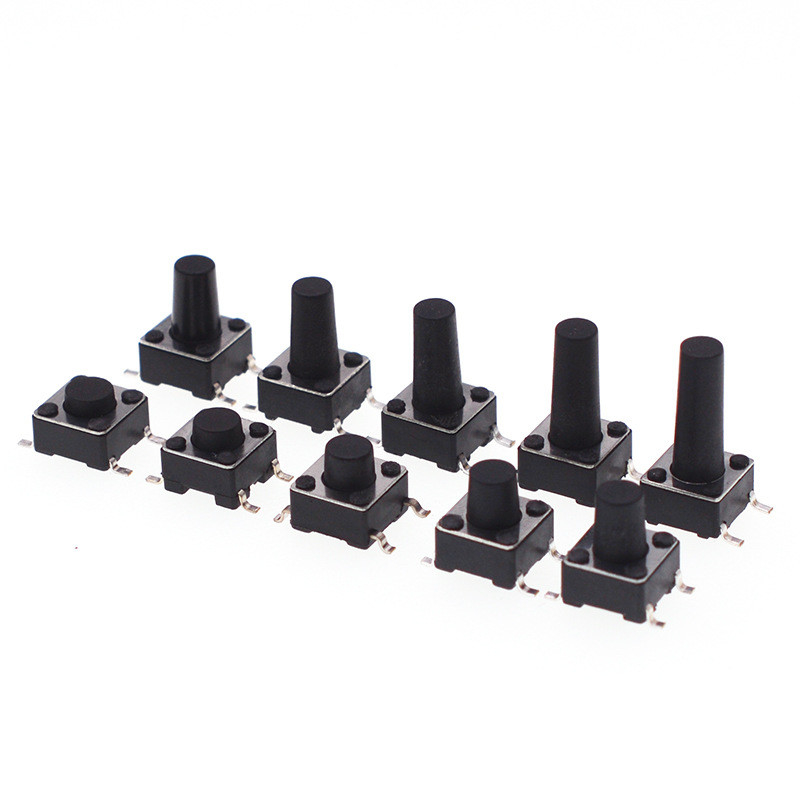

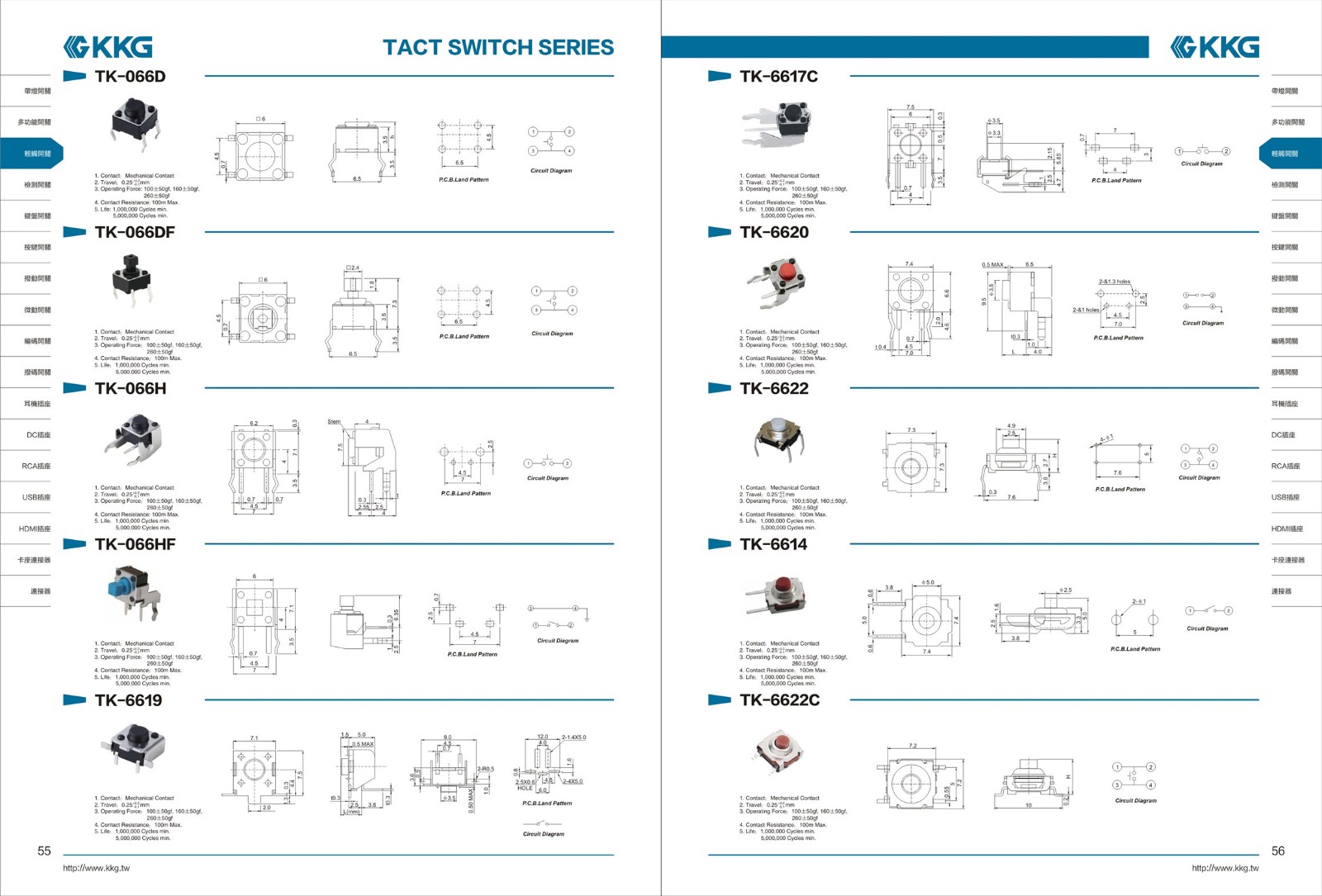

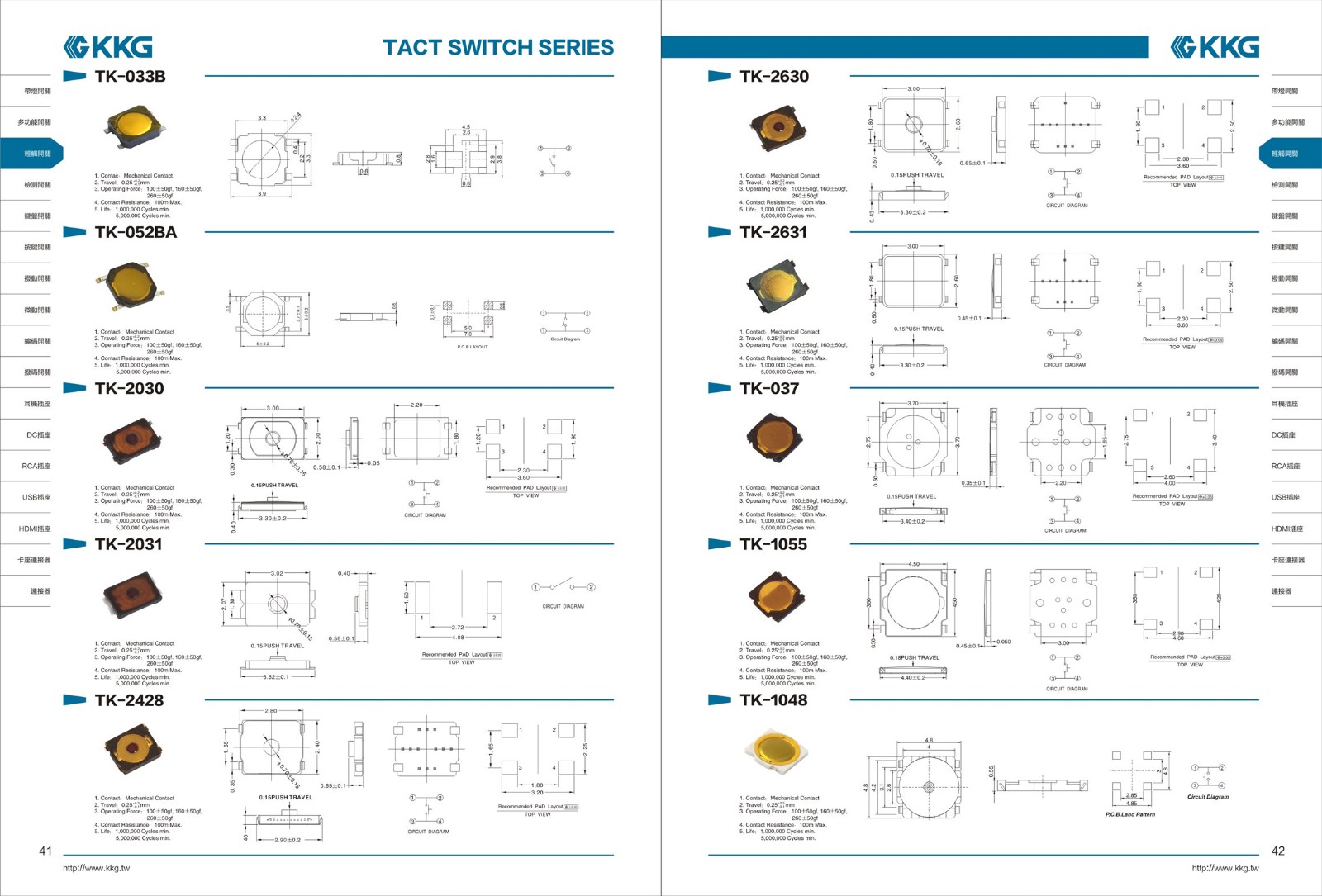

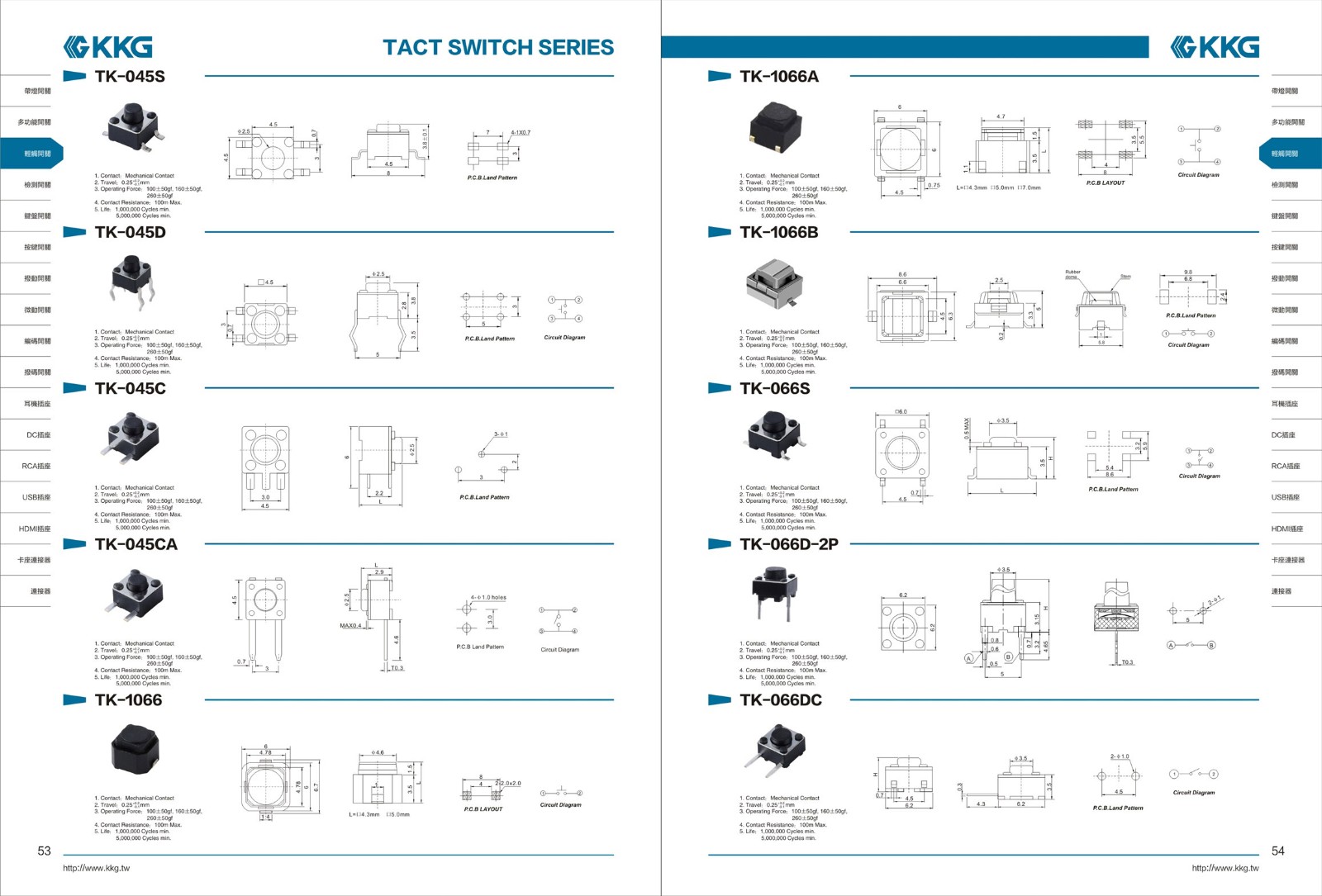

1. Tactile switch: 6*6mm tactile switch, 12*12mm tactile switch, 2*3mm and so on.
2.Membrane switch
3.Tactile switch with light
4.Micro switch
5.Code switch
6.Detect switch
8.Keboard switch
9.DIP Switches
11.Rocker Switch
12.Potentiometer
13.Jack Series
14.USB Connector
15.FPC Connector
16.Card Connector
| Dielectric strength | 250V AC for 1 min |
| Contact Resistance | 50mΩ max |
| Insulation Resistance | 100mΩ min./100 VDC |
| Delivery Time | 2-7 Days |
| MOQ | 1000 |
| Button Height | customised |
| Button Color | customised |
| Button Sharp | customised |
| Mariteral | customised |
1. Tact Switch Operation
Do not repeatedly operate the Switch with excessive force. Applying excessive pressure or applying additional force after the plunger has stopped may deform the disc spring of the Switch,resulting in malfunction. In particular, applying excessive force to Side-operated Switches may damage the caulking, which in turn may damage the Switch. Do not apply force exceeding the maximum (29.4 N for 1 minute, one time) when installing or operating Side-operated Switches.Be sure to set up the Switch so that the plunger will operate in a straight vertical line. A decrease in the life of the Switch may result if the plunger is pressed off-center or from an angle.
2. Tact Switch Dust Protection
Do not use tact switch that are not sealed in dust-prone environments. Doing so may cause dust to penetrate inside the Switch and cause faulty contact. If a Switch that is not sealed must be used in this kind of environment, use a sheet or other measure to protect it against dust.
Q:How about your quality control?
A:All the products will be 100% checked before the shipment.
Q:Are you a factory or trading company?
A:We are factory, we can provide competitive price.welcome to visit our factory.
Q:May I get free samples?
A:Sure, 10-20 pcs of free samples are available for normall models. We need to confirm height, operation force and price before shipment.
