Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC002C
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:

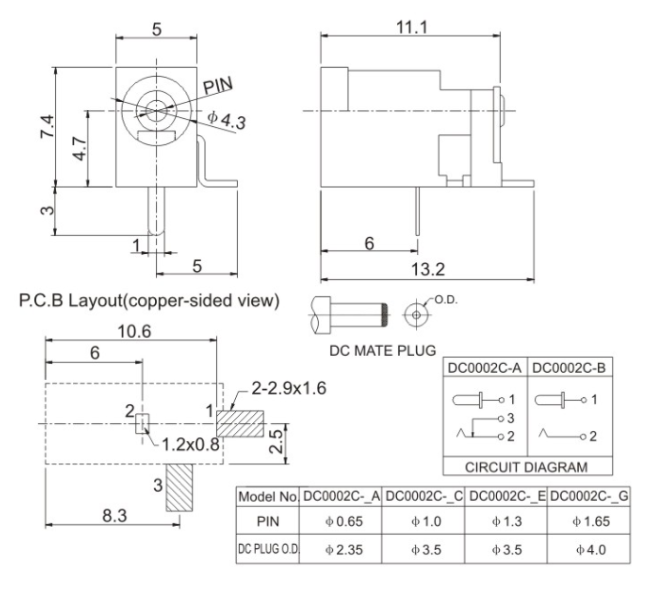

| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |
| Dimension | 11.10mm*5.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
Meta Ray-Ban 2 Temple Arm DC Power Jack's Product Operating Principle
--Tiered Contact Architecture – Vertically stacked phosphor bronze springs maximize conductivity in constrained Z-space
--Precision SMT Alignment – ±0.04mm self-centering guides ensure robotic assembly accuracy
--Thermal Resilience – Halogen-free PBT withstands 3×260°C reflow cycles
Phonak Virto M-312 DC Power Jack's Product Functions
--Vertical Efficiency – 7.4mm height enables layer-stacking in multi-board systems
--Signal Integrity Focus –<0.3db insertion="" loss="" from="" dc="" to="" 1ghz="">
--Vibration Endurance – Validated per EIA-364-28 (10-500Hz, 10G acceleration)
--Current Density Mastery – Maintains 30mΩ resistance at 1A continuous load
Siemens Simatic IOT2000 Edge Port DC Power Jack's Product Applications
Server Power Distribution
Implementation: Dell PowerEdge MX7000 blade chassis auxiliary power bus
Test Equipment Arrays
Integration: Keysight EXR208A oscilloscope mainframe module interconnects
Industrial Control Racks
Usage: Rockwell Allen-Bradley GuardLogix safety controller backplanes
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
We ensure high production efficiency and ship your order within 7 days after payment.
