Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC005A
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |

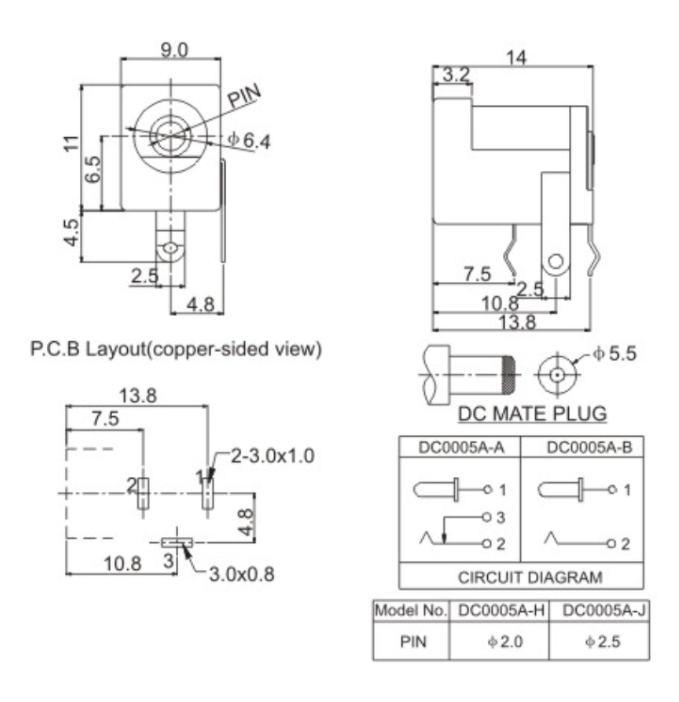

| Dimension | 14.00mm*9.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
Dahua CCTV Camera Power Interface DC Power Jack's Product Operating Principle
--Cross-axis contact system – Orthogonal metal springs provide dual-directional grip for plug stability
--Environmental resilience – Sealed housing meets IP54 standards for dust/water resistance
--Efficient assembly – Through-hole pins enable rapid PCB installation with standard soldering techniques
Sonos Soundbar DC Connection DC Power Jack's Product Functions
--Industrial-grade construction – Heat-resistant ABS base withstands -30°C to 100°C thermal cycles
--Precision connectivity – ≤30mΩ contact resistance ensures minimal power loss
--Safety certified – UL94 V-0 flame-retardant materials prevent fire hazards
--High-volume production – Compatible with automated wave soldering processes
CNC machine tool 24V control panel DC Power Jack's Product Applications
Security Infrastructure
Example: Dahua CCTV camera power interfaces
Home Entertainment
Example: Sonos soundbar DC connections
Industrial Equipment
Example: CNC machine tool 24V control panels
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1:Are you a factory or trade company?
A:We are factory with more than 15 years of experience specialized in producing switches, sockets, connetors, DC Jacks, etc.
Q2:Why should we choose your company?
A:1.Porfessional manufacture with more than 15 years experience in producing various of switches.
2.Good quality, competitive price and fast delivery time.
3.OEM/ ODM Service provided to clients.
4.The best after-sale service.
Q3: How can we get the samples and best quotation?
A:We need to know more details about the products you inquired.
For example, what are the functions you need? The specification of it and which finished products will be used with it?
It is better to provide AI fromat artwork to us so we could provide best quotation to you asap.
We could provide the free samples to you.
Q4.How about the delivery time?
A: Gernally speaking it is needed 2 weeks if your quantity below 10K pcs, and it depends on the quantity.
Q5:How do you package the goods?
A: We will package the swtiches in reels or in anti static bag with covering air bubble films. Besides, they will be putting into a inner box and then into a outer carton.
