Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC005D
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |

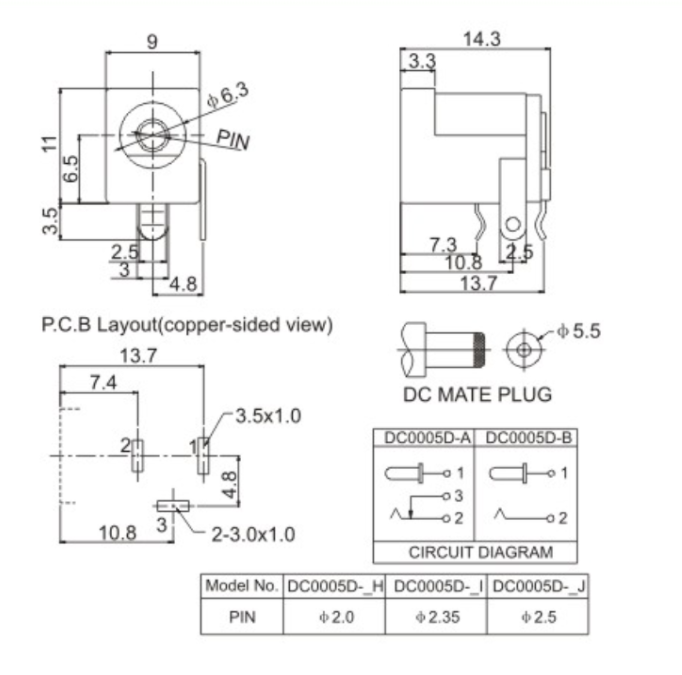

| Dimension | 14.30mm*9.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
Yamaha CL5-style Digital Console DC Power Jack's Product Operating Principle
--Dual-Axis Engagement System – Independent upper/lower contact blades compress from perpendicular planes to secure plugs under extreme motion
--Directional Alignment Channel – Precision-machined slot guarantees 100% correct plug orientation while reducing wear during repeated use
--Efficient Chassis Integration – Panel mounting completed in 75 seconds via threaded flange or wave soldering process
Hikvision DS-K Series Access Control System DC Power Jack's Product Functions
--Commercial-Grade Resilience – 4X thicker phosphor bronze contacts vs consumer models for shock and vibration tolerance
--Enhanced Current Transmission – 3A sustained load capacity for 12V/24V systems with ultra-low 10mΩ contact resistance
--All-Weather Protection – IP40 rating blocks most parts of dust ingress for outdoor deployments
--Extreme Temperature Tolerance – Engineered for continuous operation between -40°C and 120°C thermal extremes
ABB IRC5 Controller DC Power Jack's Product Applications
Broadcast Audio Mixers
Example: Yamaha CL5-style digital consoles requiring uninterrupted power in live performance environments
Smart City Security Hubs
Example: Hikvision DS-K series access control systems needing corrosion-resistant DC interfaces
Industrial Robotics Controllers
Example: ABB IRC5 controllers with high-vibration power demands in automated manufacturing
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: What packaging methods ensure component protection during shipping?
A: Components are secured in anti-static trays with moisture barrier bags and shock-absorbent foam, ensuring ESD and mechanical protection during transit.
Q2: Do you offer expedited production for urgent project timelines?
A: Expedited slots reduce lead time by 30% with a 50% deposit. Material availability must be confirmed prior to scheduling.
Q3: Are your connectors compatible with high-vacuum production environments?
A: Standard models are not vacuum-rated, but customized versions using low-outgassing materials can be developed for specialized applications.
Q4: How do you handle component obsolescence in long-term projects?
A: We guarantee a 10-year discontinuation notice and facilitate last-time-buy agreements to minimize disruptions in legacy production.
Q5: What is the average defect rate per production batch?
A: Defect rates remain below 0.02% due to automated optical inspection and real-time process control during manufacturing.
Previous: DC005C DC Power Jack
Next: DC005M DC Power Jack
