Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC009
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |

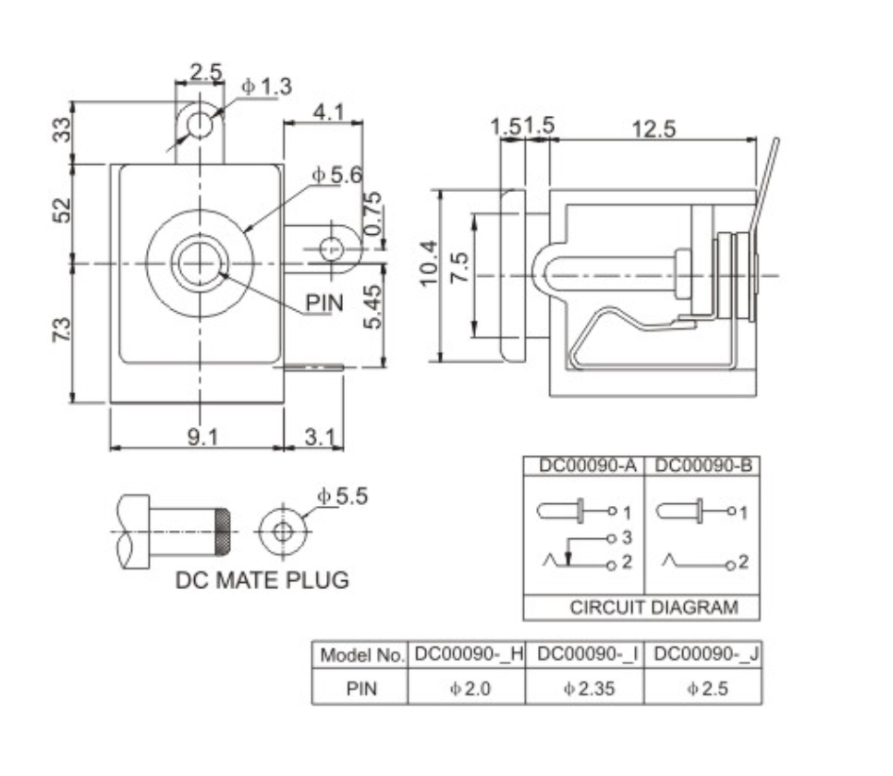

| Dimension | 15.50mm*9.10mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
Behringer X32-style Live Sound Console DC Power Jack's Product Operating Principle
--Dual Contact System – Two independent metal springs grip plugs from perpendicular angles for secure connection
--Directional Keyway – Prevents incorrect plug insertion while aligning power flow paths
--Rugged Mounting – Installs in panels/PCBs with screw-on base or solder tabs in 2 minutes
Hikvision DS-2CD-series Outdoor Camera DC Power Jack's Product Functions
--Industrial Durability – 3X thicker metal construction vs consumer-grade sockets
--High-Current Capacity – 3A continuous flow for 12V/24V systems with ≤20mΩ resistance
--Weather-Resistant Design – IP54 protection against dust/water jets for outdoor use
--Thermal Stability – Operates continuously between -20°C Arctic cold and 85°C workshop heat
Makita XGT 36V battery station DC Power Jack's Product Applications
Professional Audio Mixers
Example: Behringer X32-style live sound consoles with high-vibration power connections
CCTV Security Systems
Example: Hikvision DS-2CD-series outdoor cameras requiring weatherproof DC interfaces
Cordless Tool Chargers
Example: Makita XGT 36V battery stations needing industrial-grade charging ports
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1. How can you ensure the quality?
A: All our products are 100% QC tested before delivery. Durable quality is guaranteed.
Q2. What IP rating do your waterproof illuminated switches have?
A: Select models are IP67-rated for dust/water resistance (ideal for industrial or outdoor use).
Q3: Do you provide custom packaging for bulk orders?
A: Anti-static ESD bags, reel packaging, or branded boxes are available.
Q4. What is the mechanical lifespan of your switches?
A: Standard switches endure 100,000 cycles; high-end models reach 500,000 cycles.
Q5. What is your lead time for standard orders?
A: Standard orders ship in 15–20 days; expedited 7-day service is available.
Previous: DC006 DC Power Jack
Next: DC011A DC Power Jack
