Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC011A
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
https://mao.ecer.com/test/illuminatedtactswitch.com
| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |

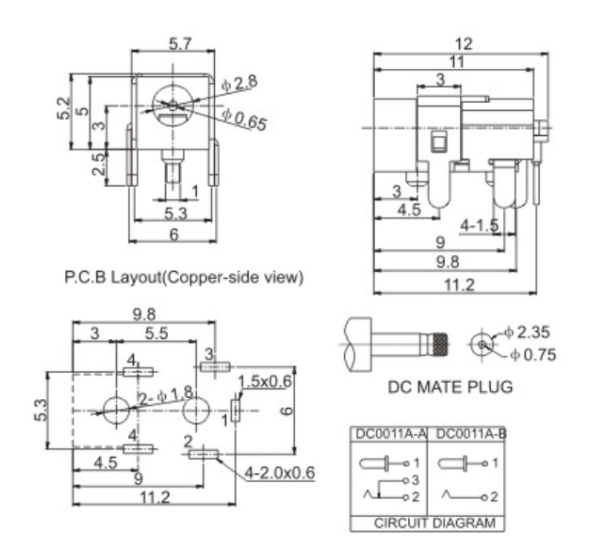

| Dimension | 11.00mm*5.70mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
Ray-Ban Meta Smart Glasses-style Concealed Charging Port DC Power Jack's Product Operating Principle
--Optimized Energy Distribution – Maintains consistent voltage delivery in ultra-thin form factors
--Precision Insertion Channel – Guides plug alignment to prevent mechanical stress in confined spaces
--Rapid Integration System – Mounts on PCBs/panels within 90 seconds using standard assembly tools
DJI Mavic 3-series Controller DC Power Jack's Product Functions
--Diminutive Footprint – 45% smaller than conventional DC sockets for space-constrained applications
--Stable Power Transmission – 1A sustained load capacity for 5V systems with minimal electrical impedance (≤50mΩ)
--Contamination-Resistant Construction – IP40 rating prevents ingress of environmental particulates
--Manufacturing-Friendly Design – 30% material cost reduction for large-scale production runs
Abbott ID NOW Portable Molecular Testing Device DC Power Jack's Product Applications
Smart Eyewear Chargers
Example: Ray-Ban Meta smart glasses-style concealed charging ports for seamless wearables
Surveillance Drones
Example: DJI Mavic 3-series controllers requiring vibration-proof power interfaces
Point-of-Care Diagnostics
Example: Abbott ID NOW portable molecular testing devices with compact energy connectors
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1:Are you a factory or trade company?
A:We are factory with more than 15 years of experience specialized in producing switches, sockets, connetors, DC Jacks, etc.
Q2: What is the turnaround time for rapid prototyping of modified designs?
A: Prototypes are delivered in 7-10 working days post-design approval. Submit CAD files and specifications to activate priority engineering review.
Q3: How do you ensure long-term product availability for legacy systems?
A: We guarantee 15-year lifecycle support with EOL (End-of-Life) notifications 24 months in advance and bridge manufacturing options.
Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.
Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
