Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001

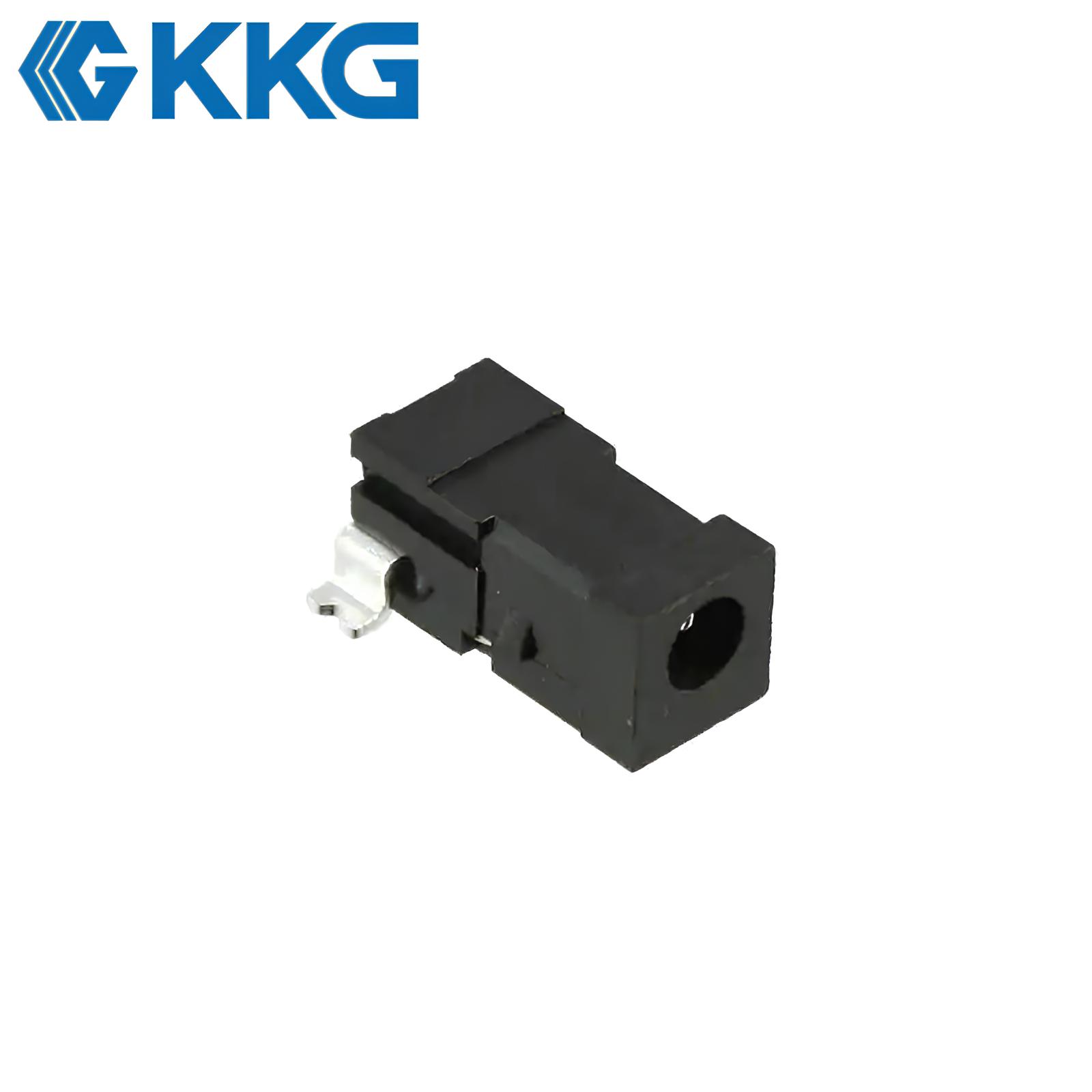

Model Number: DC011B
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |

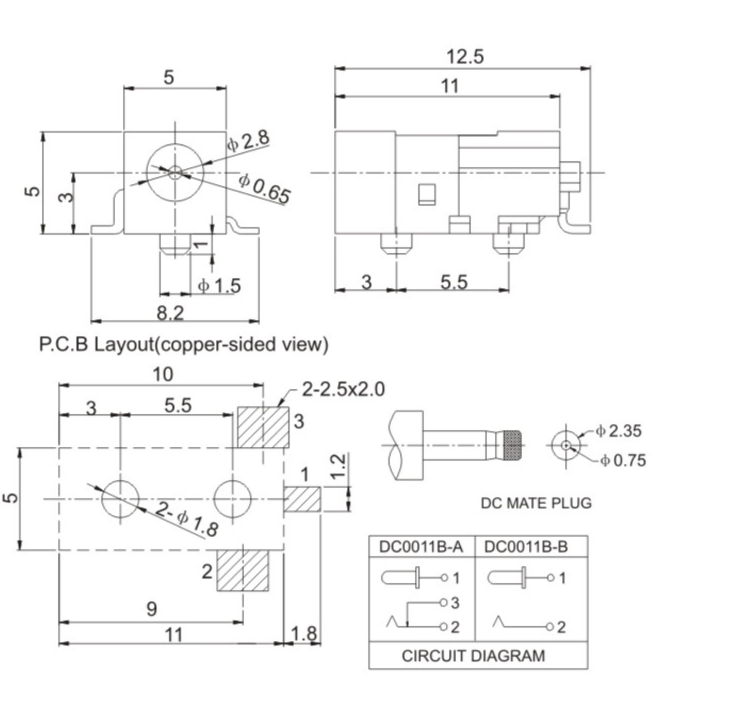

| Dimension | 11.00mm*5.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
Fitbit Charge 6 Auxiliary Battery Module DC Power Jack's Product Operating Principle
--Multi-Point Contact Array – Triple-layer springs ensure stable conductivity in vibration-prone environments
--Automated Alignment System – ±0.03mm precision channel guarantees correct plug insertion during robotic assembly
--Thermal Stress Resistance – PBT housing withstands 260°C reflow soldering without deformation
Desigo RXB Building Automation Controller DC Power Jack's Product Functions
--Space-Efficient Design – 45% smaller than standard jacks for sub-10mm wearable devices
--Longevity-Verified Mechanical Endurance – 5,000 insertion cycles validated under 10G vibration (ISO 16750-3)
--Dielectric Safety Margin – Passes 500V AC stress tests with 300% safety buffer vs regulatory minimums
--Cost-Optimized Production – 30% faster PCB integration vs through-hole alternatives
Sony NW-A100TPS High-resolution Music Player DC Power Jack's Product Applications
Smart Fitness Trackers
Implementation: Charging port of Fitbit Charge 6 auxiliary battery modules
IoT Sensor Nodes
Usage: Power interface for Siemens Desigo RXB building automation controllers
Portable Audio Devices
Integration: Secondary input on Sony NW-A100TPS high-resolution music players
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
