Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC012A
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:

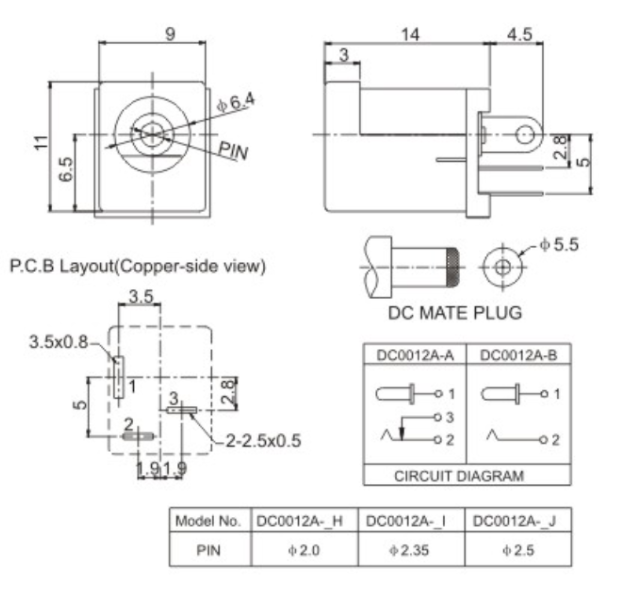

| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |
| Dimension | 14.00mm*9.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
August Wi-Fi Lock-style Hidden Charging Port DC Power Jack's Product Operating Principle
--Balanced Power Flow – Stabilizes electrical transmission in space-constrained designs
--Precise Plug Guidance – Ensures correct alignment to avoid misinsertion damage
--Effortless PCB Integration – Mounts onto boards in under 120 seconds using standard tools
Omron portable Blood Pressure Monitor DC Power Jack's Product Functions
--Compact Profile – 30% reduced footprint vs. traditional DC sockets for slim electronics
--Reliable Energy Transfer – 1A steady current for 5V/12V systems with ultra-low resistance (≤30mΩ)
--Dust-Resilient Build – IP40 rating shields against environmental particles
--Cost-Efficient Production – Optimized material use lowers high-volume manufacturing costs
DJI Mini 3 Pro-style controller DC Power Jack's Product Applications
Smart Door Locks
Example: August Wi-Fi Lock-style hidden charging ports for seamless integration
Portable Medical Devices
Example: Omron portable blood pressure monitors requiring compact power interfaces
Mini Drones
Example: DJI Mini 3 Pro-style controllers with space-saving charging solutions
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: May I have free samples?
A: Sure, but we need to confirm the product details before shipment. Besides, it is better to provide the AI format artwork to us.
Q2: Do you provide anti-static protection for sensitive electronics integration?
A:Yes, all connectors include ESD shielding (15kV minimum) to protect against static discharge during handling or operation.
Q3: What are the lead time and packaging options for bulk orders?
A: Standard Orders: 15-20 days, packed in anti-static tape and reel.
Custom Requests: 25-30 days, with vacuum-sealed moisture barrier bags for humidity-sensitive environments.
Q4: How do your connectors handle high-temperature soldering processes?
A: The nylon housing withstands reflow soldering up to 260°C for 10 seconds. Precise pin alignment prevents warping during PCB assembly.
Q5:How do you package the goods?
A: We will package the swtiches in reels or in anti static bag with covering air bubble films. Besides, they will be putting into a inner box and then into a outer carton.
