Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC015
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |

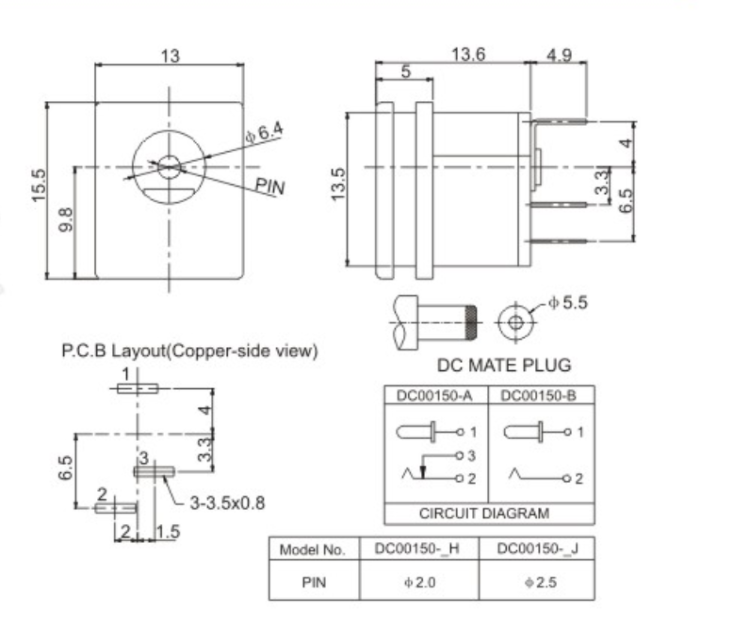

| Dimension | 13.60mm*13.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
Hikvision PTZ Camera Power Port DC Power Jack's Product Operating Principle
--Horizontal-vertical design – Stabilizes power flow in tight spaces
--Weather-resistant seal – Blocks dust and light rain (IP54 certified)
--Quick mounting – Solder pins fit standard PCB boards in 90 seconds
Mackie Mixer Interfaces DC Power Jack's Product Functions
--Industrial strength – 3X thicker metal than consumer sockets
--High current – 3A continuous flow for 12V/24V systems
--Weatherproof – Survives outdoor/indoor use (IP54 tested)
--Fast production – Compatible with wave soldering (20,000 units/hour)
DeWalt Router 24V Connection DC Power Jack's Product Applications
Security Systems
Example: Hikvision PTZ camera power ports
Professional Audio
Example: Mackie mixer interfaces
Workshop Tools
Example: DeWalt router 24V connections
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: What is your process for handling product returns or defect claims?
A: Submit a claim with batch numbers and defect evidence within 14 days.
We dispatch replacements within 48 hours and cover return shipping for verified quality issues.
Q2: Do you provide on-demand technical training for our engineering team?
A: Yes, virtual or on-site training sessions (e.g., soldering best practices, EMC mitigation) are available. Custom modules tailored to your application can be developed.
Q3: Are these Connecotrs suitable for automated PCB assembly?
A: Yes, they support both SMT and through-hole mounting.
Recommended PCB pad layouts and thermal profiles are provided in datasheets to prevent soldering defects.
Q4: Can we order mixed connector variants in a single batch?
A: Mixed SKU orders are allowed with a 25,000-unit MOQ (minimum 500 units per variant). No surcharge for reel/tray segregation.
Q5: What is the average defect rate per production batch?
A: Defect rates remain below 0.02% due to automated optical inspection and real-time process control during manufacturing.
