Switch Series Product Collection KKG Developing with the Green Planet
Language
Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC023A
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:

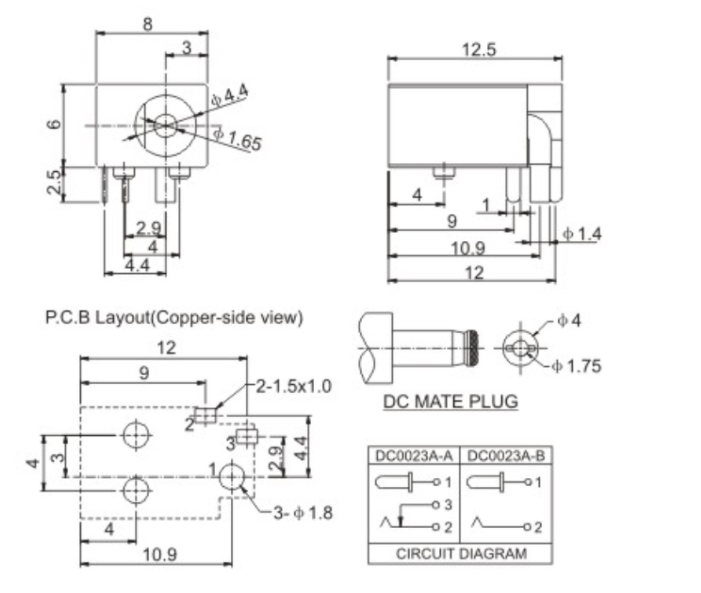

| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |
| Dimension | 12.50mm*8.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
TP-Link Archer AX21-style Compact Power Port DC Power Jack's Product Operating Principle
--Dual spring system – Distributes power evenly to prevent overheating
--Snap-fit base – Installs in pre-cut panels without screws
--Deep slot design – Hides 80% of plug for cleaner appearance
Nest Learning Thermostat-style Interface DC Power Jack's Product Functions
--Space-saving – 30% thinner than standard DC sockets
--High-current ready – Handles 2A continuous power (5V/12V)
--Child-safe – No exposed metal contacts
--Fast production – Compatible with auto-insertion machines
JBL Flip 6-style Outdoor-ready DC Power Jack's Product Applications
WiFi 6 Routers
Example: TP-Link Archer AX21-style compact power ports
Smart Thermostats
Example: Nest Learning Thermostat-style hidden interfaces
Portable Speakers
Example: JBL Flip 6-style outdoor-ready designs
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1. How can you ensure the quality?
A: All our products are 100% QC tested before delivery. Durable quality is guaranteed.
Q2. What IP rating do your waterproof illuminated switches have?
A: Select models are IP67-rated for dust/water resistance (ideal for industrial or outdoor use).
Q3: Do you provide custom packaging for bulk orders?
A: Anti-static ESD bags, reel packaging, or branded boxes are available.
Q4. What is the mechanical lifespan of your switches?
A: Standard switches endure 100,000 cycles; high-end models reach 500,000 cycles.
Q5. What is your lead time for standard orders?
A: Standard orders ship in 15–20 days; expedited 7-day service is available.
Previous: DC022B DC Power Jack
Next: DC025DM DC Power Jack
