Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001

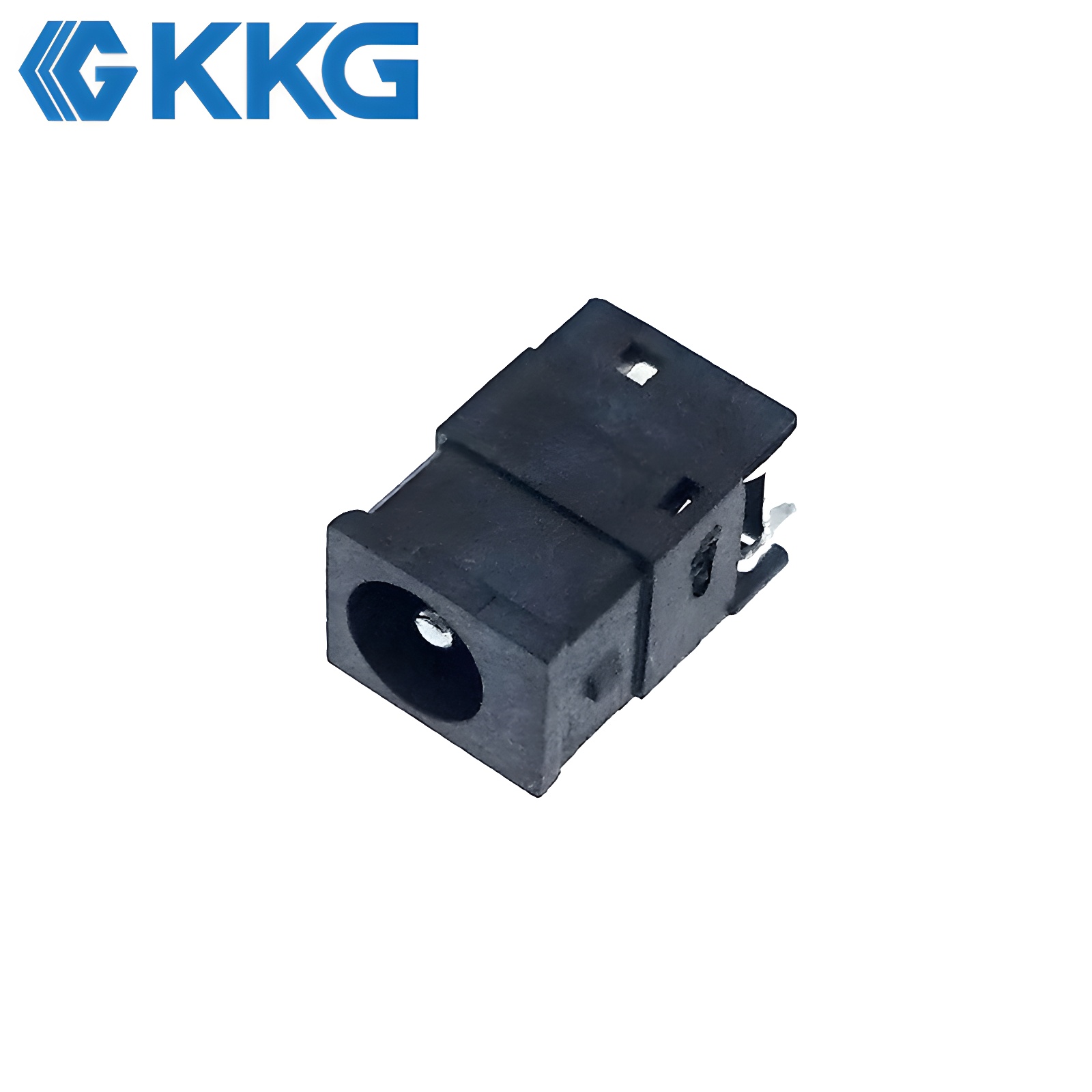

Model Number: DC045
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |
| Dimension | 9.00mm*6.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
Amazfit T-Rex Ultra Smartwatch DC Power Jack's Product Operating Principle
--Multi-Point Contact System – Dual-spring terminals ensure stable conductivity in vibration-prone environments
--Reflow-Solder Optimized Design – Lead-free compatible housing withstands 260°C reflow processes
--Precision Insertion Guidance – Beveled slot prevents lateral misalignment during plug engagement
Abbott ID NOW Power Interface DC Power Jack's Product Functions
--Space-Efficient Footprint – 50% smaller than standard jacks for ultra-thin smartwatches and IoT sensors
--Extended Mechanical Longevity – Phosphor bronze contacts maintain <35mΩ resistance after 5000 cycles
--High-Dielectric Safety – Passes 500V AC stress tests for industrial-grade reliability
--Rapid PCB Integration – Surface-mount design completes soldering in 90 seconds
DJI Osmo Pocket 3 Stabilizer Case DC Power Jack's Product Applications
Wearable Fitness Trackers
Implementation: Internal charging port of Amazfit T-Rex Ultra smartwatches
Portable Diagnostic Kits
Usage: Power interface for Abbott ID NOW testing devices
Micro Drone Accessories
Integration: Battery input on DJI Osmo Pocket 3 stabilizer cases
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1:Are you a factory or trade company?
A:We are factory with more than 15 years of experience specialized in producing switches, sockets, connetors, DC Jacks, etc.
Q2: What is the turnaround time for rapid prototyping of modified designs?
A: Prototypes are delivered in 7-10 working days post-design approval. Submit CAD files and specifications to activate priority engineering review.
Q3: How do you ensure long-term product availability for legacy systems?
A: We guarantee 15-year lifecycle support with EOL (End-of-Life) notifications 24 months in advance and bridge manufacturing options.
Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.
Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
Previous: DC011B DC Power Jack
Next: DC041 DC Power Jack
