Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC0508AB-6
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:

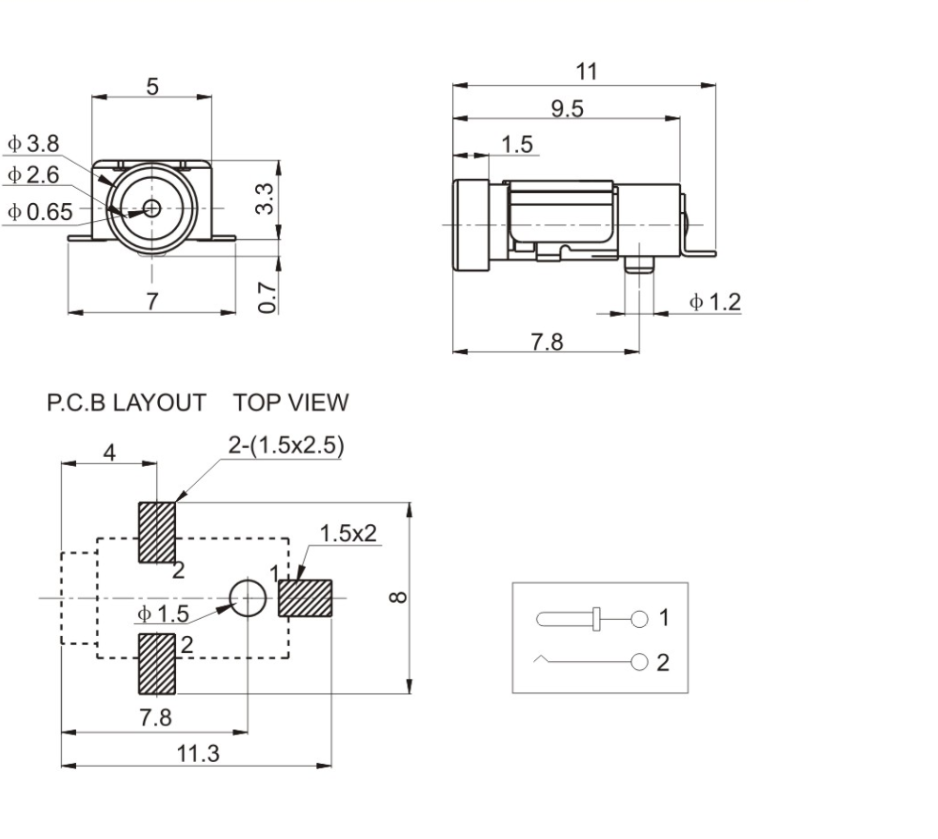

| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |
| Dimension | 9.50mm*5.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
Sony NW-ZX500-series Digital Music Players DC Power Jack's Product Operating Principle
--Multi-Point Engagement Mechanism – Forked spring contacts grip plugs from dual angles for vibration-resistant connections
--Precision Alignment Channel – Ensures correct plug insertion during automated SMT assembly with ±0.05mm tolerance
--Thermal Shock-Resistant Housing – Flame-retardant PBT base withstands 1,000 thermal cycles (-10°C–75°C)
Rockwell Automation Allen-Bradley Modules DC Power Jack's Product Functions
--Miniaturized Footprint – 50% smaller than DC012B for embedded wearables and ultra-thin IoT gateways
--Energy-Efficient Transmission –<30mω 40="" contact="" impedance="" reduces="" power="" loss="" by="">
--Industrial Vibration Resistance – 5,000+ plug cycles validated under 10G acceleration (ISO 16750-3)
--Cost-Optimized Design – 30% lower BOM cost via SMT automation compatibility
AliveCor KardiaMobile ECG Monitors DC Power Jack's Product Applications
Portable Audio Devices
Example: Sony NW-ZX500-series digital music players with concealed SMT power ports
Smart Factory Sensors
Example: Rockwell Automation Allen-Bradley 1734-series wireless I/O modules
Medical Wearables
Example: AliveCor KardiaMobile ECG monitors requiring miniaturized charging interfaces
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1:Are you a factory or trade company?
A:We are factory with more than 15 years of experience specialized in producing switches, sockets, connetors, DC Jacks, etc.
Q2:Why should we choose your company?
A:1.Porfessional manufacture with more than 15 years experience in producing various of switches.
2.Good quality, competitive price and fast delivery time.
3.OEM/ ODM Service provided to clients.
4.The best after-sale service.
Q3: How can we get the samples and best quotation?
A:We need to know more details about the products you inquired.
For example, what are the functions you need? The specification of it and which finished products will be used with it?
It is better to provide AI fromat artwork to us so we could provide best quotation to you asap.
We could provide the free samples to you.
Q4.How about the delivery time?
A: Gernally speaking it is needed 2 weeks if your quantity below 10K pcs, and it depends on the quantity.
Q5:How do you package the goods?
A: We will package the swtiches in reels or in anti static bag with covering air bubble films. Besides, they will be putting into a inner box and then into a outer carton.
