Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: DC055A
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
|---|---|
| Rating | 1.0A 30V |
| Actuating force | 3~20N |

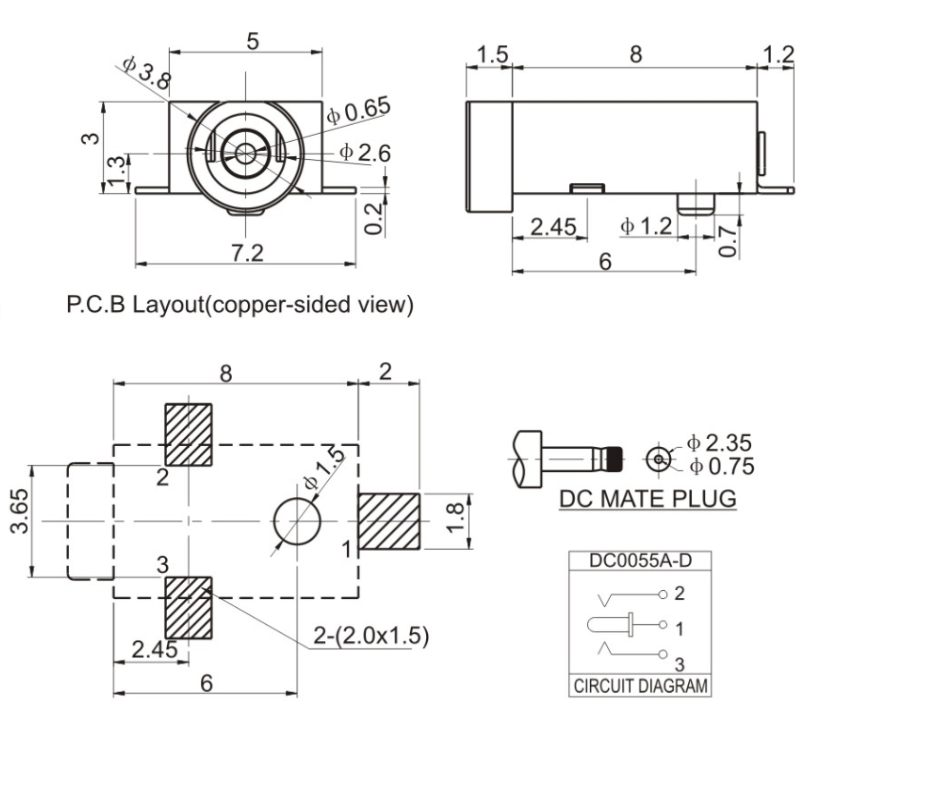

| Dimension | 9.50mm*5.00mm |
| Operating life | 5,000 cycles |
| Dielectric Strength | AC500V |
| Contact Resistance | 30mΩ Max |
DJI Avata Goggles 2 Headset Charging Interface DC Power Jack's Product Operating Principle
--Micro-Tiered Contact System – Vertically layered phosphor bronze springs maximize conductivity in 3mm Z-height
--Cryo-Tolerant Terminals – Gold-plated contacts maintain＜35mΩ resistance at -30°C cold start
--Reflow-Optimized Base – Halogen-free PBT withstands 260°C peak reflow temperatures
Signia Silk X Rechargeable Receiver DC Power Jack's Product Functions
--Height Revolution – 3.0mm profile enables integration in sub-5mm cavity designs
--Thermal Resilience - Operates across 100°C span (-30°C~70°C) without derating
--Current Density Prowess – Maintains 30mΩ resistance at 1A continuous load
--Automation Precision – ±0.03mm SMT pads enable 98% first-pass yield
Verifone V400m Payment Device Port DC Power Jack's Product Applications
Micro-Drone Avionics
Implementation: DJI Avata Goggles 2 headset charging interface
Hearing Aid Electronics
Integration: Signia Silk X rechargeable receiver module
Smart Card Terminals
Usage: Verifone V400m payment device auxiliary power port
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
We ensure high production efficiency and ship your order within 7 days after payment.
Q1: What's the lead time of bulk order?
A: The lead time is normally 10-14 days. We will inform you lead time before order, and will confirm to you again after received payment.
Q2. What is the payment term?
A: For small quantity order, pls remit payment by PayPal. For bulk order, pls remit payment by T/T.
Q3. Can you open mold for teminal order or uncommon mold?
A: OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.
Q4:What is your PCB/ PCBA service?
A: Our PCB / PCBA service is about Medical industry, Automobile, Energy, Measurements, Consumer Electronics.
Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
