2-Port Stereo Audio Video Interface Socket

Numark Party Mix II RCA Audio Socket's Product Introduction

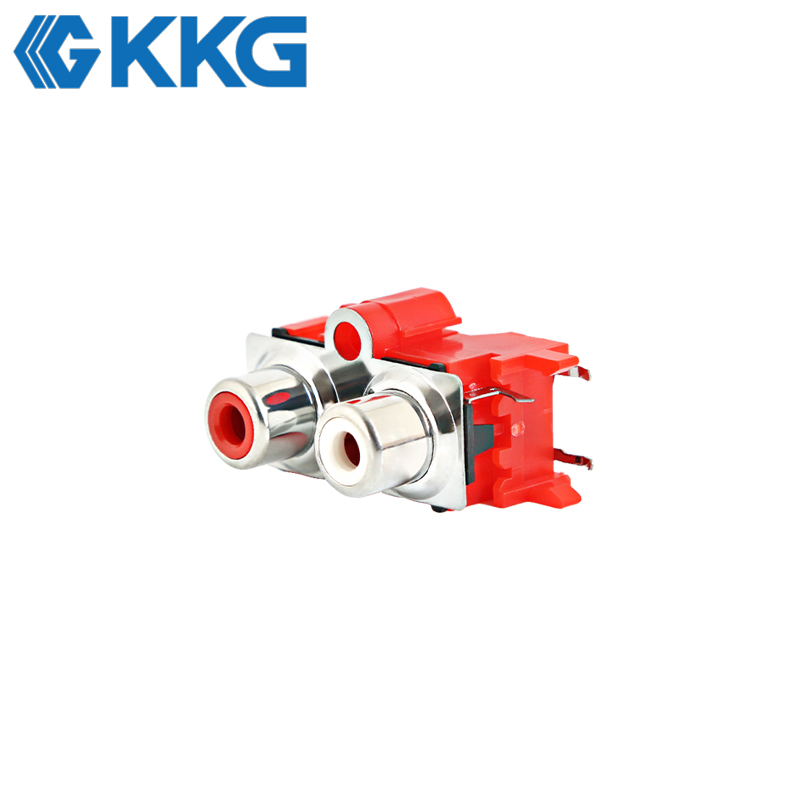

KKG Electronics presents the RCA-207, a high-quality rca socket female interface engineered for superior audio-visual connectivity. This dual-port model is specifically designed to streamline assembly by combining two ports into a single housing, making it perfect for standard stereo input/output arrays. As a versatile home theatre rca socket, it ensures high-fidelity signal transmission for amplifiers, DVD players, and set-top boxes. The connector features enhanced internal spring contacts that maintain a secure grip on standard RCA plugs, ensuring a stable signal even under vibration. Although designed for PCB termination, its reinforced housing offers the mechanical stability of a rca socket panel mount configuration when installed behind a device chassis. Whether used for analog stereo audio or dual-channel video, the RCA-207 delivers the durability required for professional and consumer electronics.

PreSonus Eris E3.5 RCA Audio Socket's Product Operating Principle

Signal Conduction: The central pin of the inserted plug mates with the internal cantilever spring to transmit the positive audio signal directly to the PCB trace.
Ground Shielding: The outer metal barrel surrounds the plug's ground ring establishing a continuous shield connection that protects the signal from external noise.
Mechanical Anchoring: Reinforced solder pins extend through the circuit board to physically secure the housing against the stress of cable insertion.

Singing Machine SML385 RCA Audio Socket's Product Functions

Analog Connectivity: Serves as the primary hardware gateway for transmitting low-level audio signals between different multimedia components.
Channel Separation: Maintains two distinct electrical paths within a compact block to ensure true stereo separation without signal bleeding.
Universal Compatibility: Complies with global dimensional standards to ensure seamless mating with any consumer-grade RCA cable or adapter.
Secure Interface: Uses high-tension internal contacts to prevent intermittent connections caused by cable movement or vibration.

Karaoke Systems: Integrated into the audio input panel of the Singing Machine SML385 to allow users to connect external audio sources via stereo RCA cables.

Active Speakers: Used on the rear input panel of the PreSonus Eris E3.5 Media Reference Monitors to accept unbalanced analog audio signals.

DJ Controllers: Located on the main output block of the Numark Party Mix II to transmit the master stereo mix to external amplifiers.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.

Q1. How can you ensure the quality?

A:  All our products are 100% tested before delivery. Durable quality is guaranteed.

Q2: How can we get the samples and best quotation?

A:We need to know more details about the products you inquired.

    For example, what are the functions you need? The specification of it and which finished products will be used with it?

    It is better to provide AI fromat artwork to us so we could provide best quotation to you asap.

    We could provide the free samples to you.

Q3: How long will the samples take to my place?
A: It depends on the express solution you choose, normally it will take 3-5 working days for the fastest way in hihgest price. And commonly in 5-8 days for the cost-effective way.

Q4. Can you open mold for teminal order or uncommon mold?
A: OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.

Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special
    requirement.
    For PCBA quotation, please provide Gerber data / files and BOM (bill of materials). If you need function test, please also provide
    the test instruction/ procedure.
