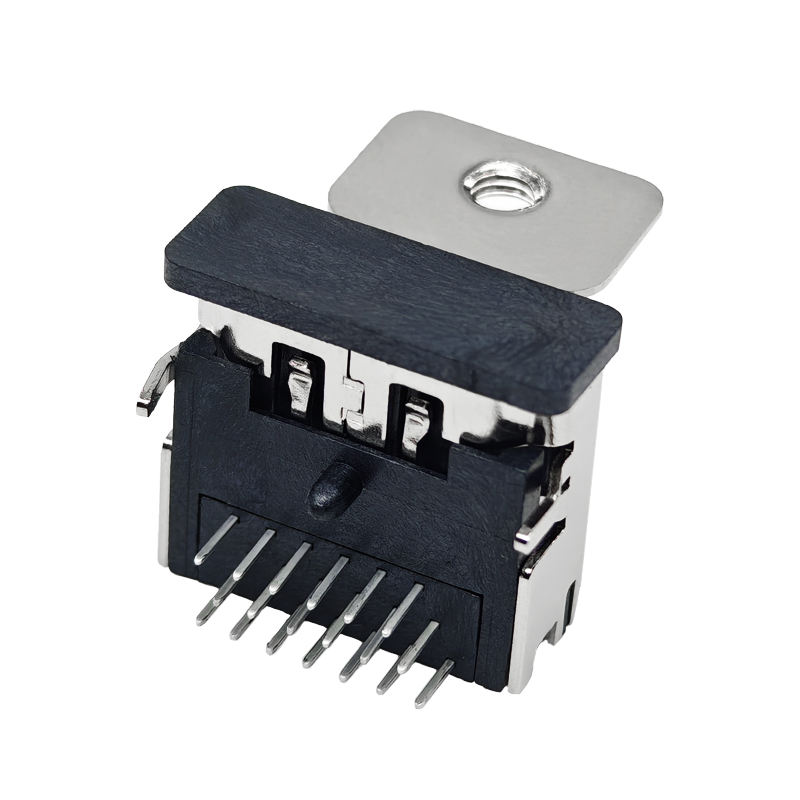

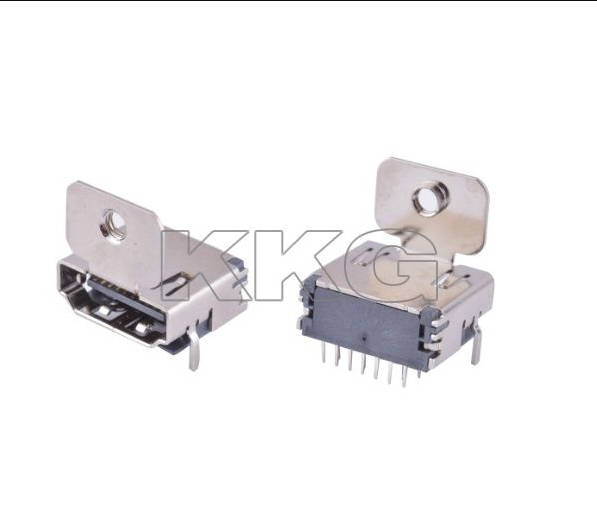

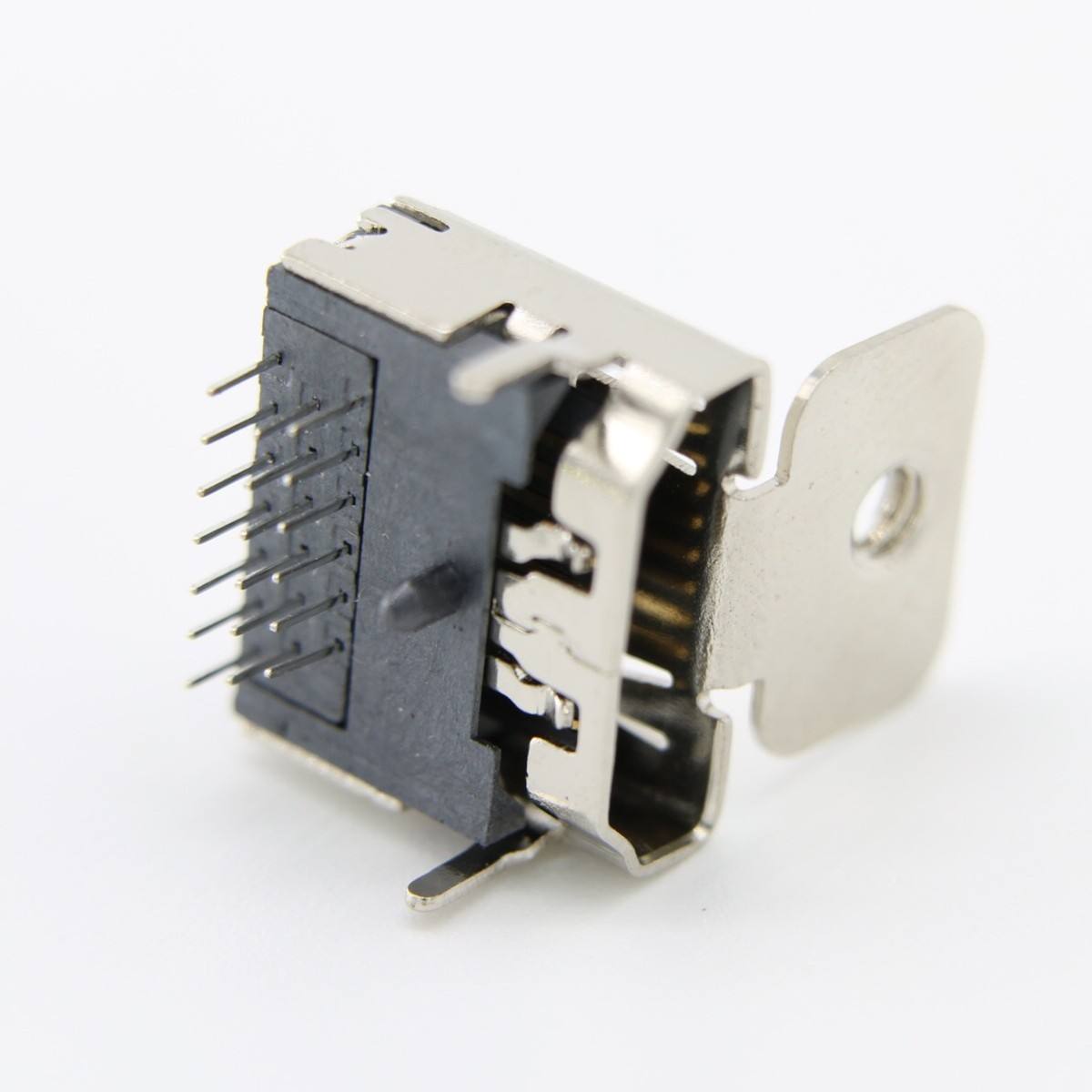

HDMI 2.1 Jack

HDMI (High-Definition Multimedia Interface) connectors represent the gold standard in audiovisual transmission technology. They facilitate the transfer of uncompressed digital audio and video signals, enabling superior quality display across a multitude of devices. Modern HDMI connectors have evolved significantly, offering enhanced bandwidth capabilities to support 4K, 8K, and even higher resolution content with ease. Their robust construction ensures durability in high-usage scenarios, while advanced shielding technology minimizes signal interference for pristine data transmission.

These connectors are designed to be user-friendly, featuring a compact form factor that simplifies connections between various electronic devices. The standardized design ensures compatibility across different brands and device types, making them a versatile solution for both residential and commercial applications. Additionally, HDMI connectors often incorporate additional features such as Ethernet connectivity and support for 3D content, further expanding their utility in today's interconnected digital landscape.

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

High-Speed Signal Transmission: Enables the simultaneous transmission of video, audio, and control signals, ensuring high-definition playback with minimal latency.

Multi-Device Interconnectivity: Establishes seamless connections among televisions, monitors, computers, gaming consoles, and other devices, creating comprehensive home and commercial multimedia systems.

Intelligent Interaction: Supports features like Consumer Electronics Control (CEC) and Audio Return Channel (ARC), facilitating intelligent inter-device control and remote operation.

Advanced Signal Integrity: Utilizes sophisticated shielding and differential signaling to maintain signal purity over extended cable lengths.

Backward Compatibility: Ensures seamless operation with older devices while fully supporting the latest high-resolution formats.

Superior Performance: HDMI connectors deliver lossless transmission of digital signals, preserving the original quality of audio and video content. This ensures that users experience the highest fidelity in their entertainment systems, with no degradation in signal quality regardless of transmission distance.

Enhanced Versatility: The ability to transmit multiple types of data simultaneously makes HDMI connectors suitable for a wide range of applications, from home theaters to professional audiovisual setups. Their compact design also allows for easy integration into various devices without compromising on space constraints.

Reliability and Durability: Constructed with high-quality materials and precision engineering, HDMI connectors are built to withstand frequent use and connection cycles. The robust construction ensures long-term reliability, reducing the need for replacements and minimizing downtime in critical applications.

Future-Proof Technology: Continuous advancements in HDMI specifications ensure that these connectors remain at the forefront of audiovisual technology. Users can be confident that their investment in HDMI-compatible equipment will remain relevant as new formats and higher resolutions become mainstream.

Home Theater Systems:

Example: A 4K Smart TV paired with a Blu-ray player.

HDMI connectors enable the creation of immersive home theater experiences by delivering crystal-clear video and multi-channel audio. The high bandwidth capacity supports advanced features like HDR (High Dynamic Range) and Dolby Vision, enhancing contrast and color accuracy for a truly cinematic viewing experience.

Professional Conference Solutions:

Example: A conference projection system integrated with video conferencing terminals.

In professional settings, HDMI connectors provide reliable, low-latency transmission essential for smooth video conferencing and presentation needs. The ability to transmit control signals alongside audio and video allows for seamless management of complex presentation systems from a single interface.

Commercial Digital Signage:

Example: A UHD advertising display connected to a media player.

For commercial applications, HDMI connectors ensure vibrant and detailed display of advertising content. The high-speed data transmission capabilities allow for real-time updates of digital signage, making it an ideal solution for dynamic advertising environments where content frequently changes.

Gaming and Entertainment:

Example: A next-generation gaming console connected to a high-refresh-rate gaming monitor.

HDMI connectors support the latest gaming technologies, including variable refresh rate (VRR) and auto low latency mode (ALLM), enhancing the gaming experience by reducing input lag and ensuring smooth, tear-free gameplay.

Medical and Industrial Applications:

Example: High-resolution medical imaging systems connected to diagnostic displays.

In specialized fields requiring precise image transmission, HDMI connectors provide the reliability and quality needed for critical applications. Their ability to maintain signal integrity over long distances makes them suitable for connecting imaging equipment to displays in operating rooms or industrial control centers.

The core advantage of HDMI 2.1 is its support for higher bandwidth (48Gbps), enabling ultra-high-definition specifications such as 8K/60Hz and 4K/120Hz. However, confusion often arises in practical use due to issues like device compatibility and cable standards.

Core Question: What are the Key Differences Between HDMI 2.1 and HDMI 2.0?

The core differences between the two lie in bandwidth and function support, which directly determine the quality of transmitted images and additional features.

Bandwidth: HDMI 2.1 has a bandwidth of 48Gbps, 2.6 times that of HDMI 2.0 (18Gbps). This serves as the foundation for supporting higher resolutions and refresh rates.

Image Quality Specifications: HDMI 2.1 can support 8K/60Hz and 4K/120Hz, while HDMI 2.0 only supports up to 4K/60Hz.

Additional Features: HDMI 2.1 introduces new features like VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and eARC (Enhanced Audio Return Channel). These features significantly enhance gaming and audio-visual experiences, but they are not supported by HDMI 2.0.

Common Issue: Why Can't I Use 4K/120Hz Even Though My Device Supports HDMI 2.1?

This situation usually occurs due to an "incomplete link", and you need to check three key aspects:

Substandard Cable: You must use a certified HDMI 2.1 cable (e.g., Ultra High Speed HDMI Cable). Ordinary HDMI 2.0 cables have insufficient bandwidth, so even if plugged in, they cannot activate the 4K/120Hz mode.

Not All Device Ports Support HDMI 2.1: Confirm that both the "signal source (e.g., graphics card, game console)" and the "display device (e.g., TV, monitor)" have HDMI ports labeled "HDMI 2.1". If one of the ports is HDMI 2.0, it will limit the overall performance.

Settings Not Enabled: Some devices require manual activation of high-specification modes. For example, you may need to enable "4K/120Hz" in the "Image Settings" of a TV, or set the refresh rate to 120Hz in the "NVIDIA Control Panel" or "AMD Software" for a graphics card.

Key Misconceptions: Common Myths About "HDMI 2.1 Cables" and "HDMI 2.1 Devices"

Misconception 1: The Longer the Cable, the Better

The effective transmission distance of an HDMI 2.1 cable is usually within 3-5 meters. Beyond 5 meters, signal attenuation may occur, and an "HDMI 2.1 signal amplifier" is required; otherwise, the frequency will be reduced to 4K/60Hz.

Misconception 2: A Device Labeled "HDMI 2.1" Supports All Its Features

Some devices (especially early models) may only support "partial features" of HDMI 2.1. For instance, a device might support 4K/120Hz but not VRR or eARC. Before purchasing, check the device's specification sheet to confirm that all required features are available.

Misconception 3: The eARC Function Requires No Additional Setup

To use eARC for transmitting lossless audio (e.g., Dolby Atmos, DTS:X), you need to manually enable the "eARC Mode" in the "Audio Settings" of both the TV and the sound system. Additionally, the cable must be of HDMI 2.1 standard (HDMI 2.0 cables only support regular ARC and not lossless audio).
