The Comprehensive Guide to 2.5mm Audio Jacks

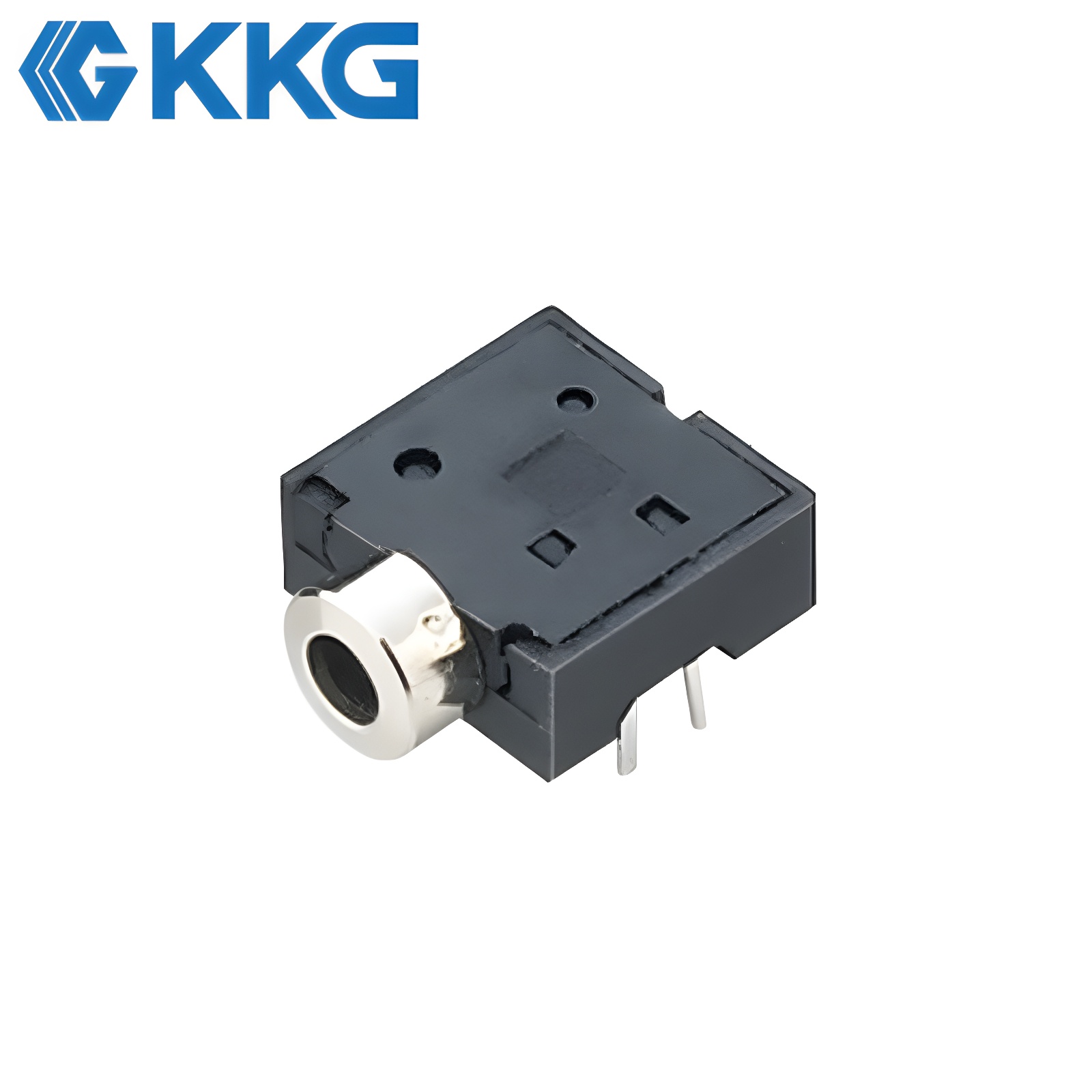

What is a 2.5mm Audio Jack?

The 2.5mm audio jack, formally known as a TS (Tip-Sleeve) or TRS (Tip-Ring-Sleeve) CONNECTOR, is a miniature audio interface standard with a diameter of 2.5 millimeters (0.098 inches). This compact connector typically carries either mono (TS) or stereo (TRS) audio signals with an impedance range of 16Ω to 600Ω and can handle signal levels up to 3V RMS.

Technical Characteristics

The 2.5mm audio jack features several distinct technical characteristics that differentiate it from its more common 3.5mm counterpart:

1. Compact Size

With a 28.6% smaller diameter than 3.5mm jacks (2.5mm vs 3.5mm), these connectors enable more space-efficient designs. The typical plug length ranges from 14mm to 18mm, with insertion depths of 5.5mm to 7mm.

2. Electrical Performance

Despite its small size, the 2.5mm jack maintains good audio performance with:

• Frequency response: 20Hz-20kHz (±3dB)

• Crosstalk attenuation: ≥60dB @ 1kHz

• Signal-to-noise ratio: ≥90dB (depending on implementation)

3. Mechanical Durability

The connector is designed to withstand:

• Insertion force: ≤20N

• Withdrawal force: ≥2N

• Operating temperature: -25°C to +70°C

Common Applications

The 2.5mm audio jack finds use in various specialized applications where space constraints are critical:

1. Mobile Communication Devices

Many older mobile phones (particularly early smartphones and feature phones) utilized 2.5mm jacks for headsets. The compact size allowed for:

• Space savings of up to 40% compared to 3.5mm implementations

• Integrated microphone circuits with bias voltages of 1.5V to 2.8V

2. Professional Audio Equipment

Certain professional audio devices employ 2.5mm jacks for:

• Compact intercom systems (with 4-conductor TRRS configurations)

• Wireless microphone receivers (supporting balanced audio in some implementations)

3. Medical Devices

Medical monitoring equipment often uses 2.5mm connectors for:

• Compact stethoscope headsets (with frequency responses tailored to 50Hz-2kHz)

• Patient monitoring audio outputs (typically requiring ≤1mA current draw)

4. Aviation and Military Applications

The connector's small size and reliability make it suitable for:

• Aviation headsets (with noise-canceling circuits requiring 150Ω-300Ω impedance)

• Tactical communication systems (often featuring IP67-rated ruggedized versions)

Maintenance and Care Procedures

Proper maintenance of 2.5mm audio jacks is essential for optimal performance and longevity:

1. Cleaning Procedures

Recommended cleaning methods include:

• Using 99% isopropyl alcohol on a lint-free swab

• Applying contact cleaner sprays with ≤0.1% non-volatile residue

• Employing compressed air at ≤30 psi to remove debris

2. Connection Handling

Best practices for connection management:

• Limit insertion/removal cycles to ≤50 per day to maintain contact integrity

• Apply mating force of 5N-10N during connection

• Store unused connectors with protective caps to prevent oxidation

3. Environmental Protection

For harsh environments:

• Apply dielectric grease (with viscosity of 150-250 cSt) for moisture protection

• Use strain relief to limit bending radius to ≥5 times cable diameter

• Maintain relative humidity below 85% when possible

4. Inspection and Testing

Regular maintenance checks should include:

• Visual inspection for contact wear >30% of plating thickness

• Continuity testing with resistance measurements ≤0.5Ω

• Insulation testing at 500V DC for 1 minute
