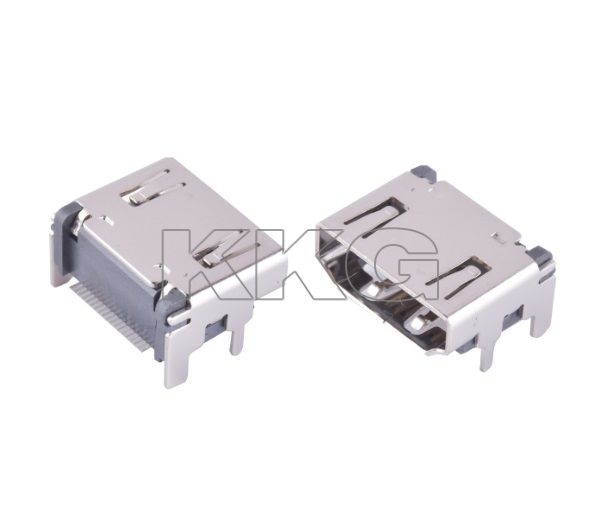

Industrial HDMI CONNECTORs: Robust Connectivity for Demanding Environments
Industrial HDMI (High-Definition Multimedia Interface) connectors represent a specialized category of interconnection components engineered to deliver reliable high-definition audio/video signal transmission within challenging industrial settings. Unlike their commercial counterparts designed for office and home entertainment applications, these connectors incorporate enhanced mechanical, electrical, and material characteristics to withstand extremes of temperature, mechanical stress, environmental contamination, and electromagnetic interference that are commonplace in industrial automation, military, and outdoor applications.
Defining Characteristics and Technical Data
The fundamental distinction of industrial HDMI connectors lies in their fortified design, which addresses the limitations of standard HDMI connectors in harsh conditions.
1. Ruggedized Mechanical Construction
Industrial HDMI Connectors feature a die-cast zinc or stainless steel shell providing superior EMI/RFI shielding, achieving typically 60 dB to 100 dB of shielding effectiveness from 100 MHz to 10 GHz. They are secured via robust locking mechanisms, such as screw-locks (M8 or M12 threading variants) or push-pull locking systems, which require a withdrawal force of over 50 Newtons to prevent accidental disconnection due to vibration or shock, as per IEC 60068-2-6 vibration resistance standards (operating reliably from 10 Hz to 500 Hz at 5 G) and IEC 60068-2-27 shock resistance (withstanding shocks of up to 100 G).
2. Extended Operating Temperature Range
Utilizing high-temperature thermoplastics (e.g., PPS, LCP) for housing and specialized contact platings, these connectors are rated for an operating temperature range of -40°C to +85°C, and in some extreme variants from -55°C to +105°C. This ensures stable performance in environments such as factory floors, outdoor digital signage, or automotive test facilities where commercial-grade connectors (typically 0°C to +70°C) would fail.
3. Superior Environmental Sealing
A critical feature is their ingress protection rating. Industrial HDMI connectors are commonly sealed to IP67 (dust-tight and protected against immersion in water between 15 cm and 1 meter for 30 minutes) or even IP68/IP69K standards. This is achieved through integrated silicone gaskets, O-rings, and potted cable exits that prevent the ingress of moisture, dust, oils, and cleaning chemicals. The connectors can endure exposure to humidity levels of 95% non-condensing and are often resistant to common industrial fluids.
4. Enhanced Electrical Performance and Durability
Despite the rugged exterior, they maintain the full electrical performance of the HDMI specification, supporting data rates up to 18 Gbps (HDMI 2.0) or 48 Gbps (HDMI 2.1) for 4K and 8K video resolution. The internal contacts are typically gold-plated (with a thickness of 0.76 µm or more, compared to 0.25 µm in commercial parts) to ensure low contact resistance (< 20 mΩ) and high corrosion resistance, guaranteeing a mating durability of 500 to 5,000 cycles without significant signal degradation.
Primary Application Scenarios
The unique attributes of industrial HDMI connectors make them indispensable in a wide array of demanding sectors.
Industrial Automation and Machine Vision: In automated production lines, these connectors interface high-resolution cameras and sensors with monitoring systems. Their vibration resistance and IP-rated sealing ensure uninterrupted operation amidst heavy machinery, while their EMI shielding prevents signal corruption from motor drives and power inverters.
Military, Aerospace, and Avionics (Mil-Spec): These environments demand absolute reliability under extreme conditions. Industrial HDMI connectors used here often comply with MIL-STD-810G for environmental engineering and are used in cockpit displays, mission control systems, and ground support equipment, where they must perform under high G-forces, wide thermal cycles, and in the presence of salt fog.
Medical Imaging and Diagnostic Equipment: Devices like surgical displays, endoscopy systems, and MRI/CT scan control consoles require flawless video integrity for accurate diagnosis. The connectors' reliability and ability to withstand repeated sterilization cycles with harsh chemicals are paramount.
Outdoor and Public Information Displays (Digital Signage): For large-scale LED video walls and information kiosks exposed to rain, UV radiation, and temperature swings, the environmental sealing and extended temperature range of industrial HDMI connectors prevent failure and maintain a crisp, uninterrupted display.
Broadcast and Live Event Production: Mobile production trucks and outdoor broadcasting setups utilize these connectors for camera links and monitor connections. Their robust locking mechanism prevents cable disconnection during hectic setup and teardown, while their construction withstands physical abuse.
Transportation and Maritime: In trains, ships, and armored vehicles, these connectors link infotainment systems, surveillance cameras, and navigation displays, enduring constant vibration, humidity, and potential exposure to fuels and solvents.
Proper Maintenance and Care Procedures
To ensure the long-term reliability and performance of industrial HDMI connectors, a disciplined maintenance regimen is essential.
1. Regular Inspection: Conduct visual inspections before and after deployment in harsh environments. Check the connector shell for any signs of physical damage, such as dents or cracks. Inspect the sealing gaskets and O-rings for nicks, tears, or deformation, as a compromised seal will nullify the IP rating.
2. Mating and Unmating: Always engage the locking mechanism correctly. For screw-lock types, finger-tighten the coupling nut until snug; avoid using tools which can over-torque and damage the threads or crush the gasket. For push-pull types, ensure an audible "click" is heard upon mating. Pull only on the connector shell, never on the cable, to disconnect.
3. Cleaning and Contaminant Removal: Keep connectors clean. Use a dry, lint-free cloth to wipe the exterior. For removing grease or stubborn contaminants, use a cloth lightly dampened with isopropyl alcohol (IPA). Do not use abrasive cleaners, solvents like acetone, or high-pressure water jets, even on IP-rated connectors, as this can force contaminants past secondary seals. Ensure the connector is completely dry before mating.
4. Contact Care: Inspect the male pins and female SOCKETs for bent pins, corrosion, or foreign material. Use a specialized electronic contact cleaner and a soft brush if necessary. The gold plating is soft; avoid scraping or using metal tools on the contacts.
5. Proper Storage: When not in use, protect connectors with the supplied dust caps. Store them in a clean, dry, and temperature-controlled environment. Avoid placing them in direct sunlight or near sources of ozone or corrosive chemicals, which can degrade plastic housings and seals over time.
6. Cable Strain Relief: Ensure that the cable is properly clamped and that the integrated strain relief is correctly engaged. This prevents mechanical stress from being transferred to the solder joints or terminations inside the connector, which is a common point of failure.
By adhering to these maintenance protocols, the operational lifespan of industrial HDMI connectors can be maximized, ensuring continuous, high-fidelity signal transmission and system uptime in the world's most challenging operational environments.
